EX(H4SO)-12
EXHAUST
Muffler
5. Muffler

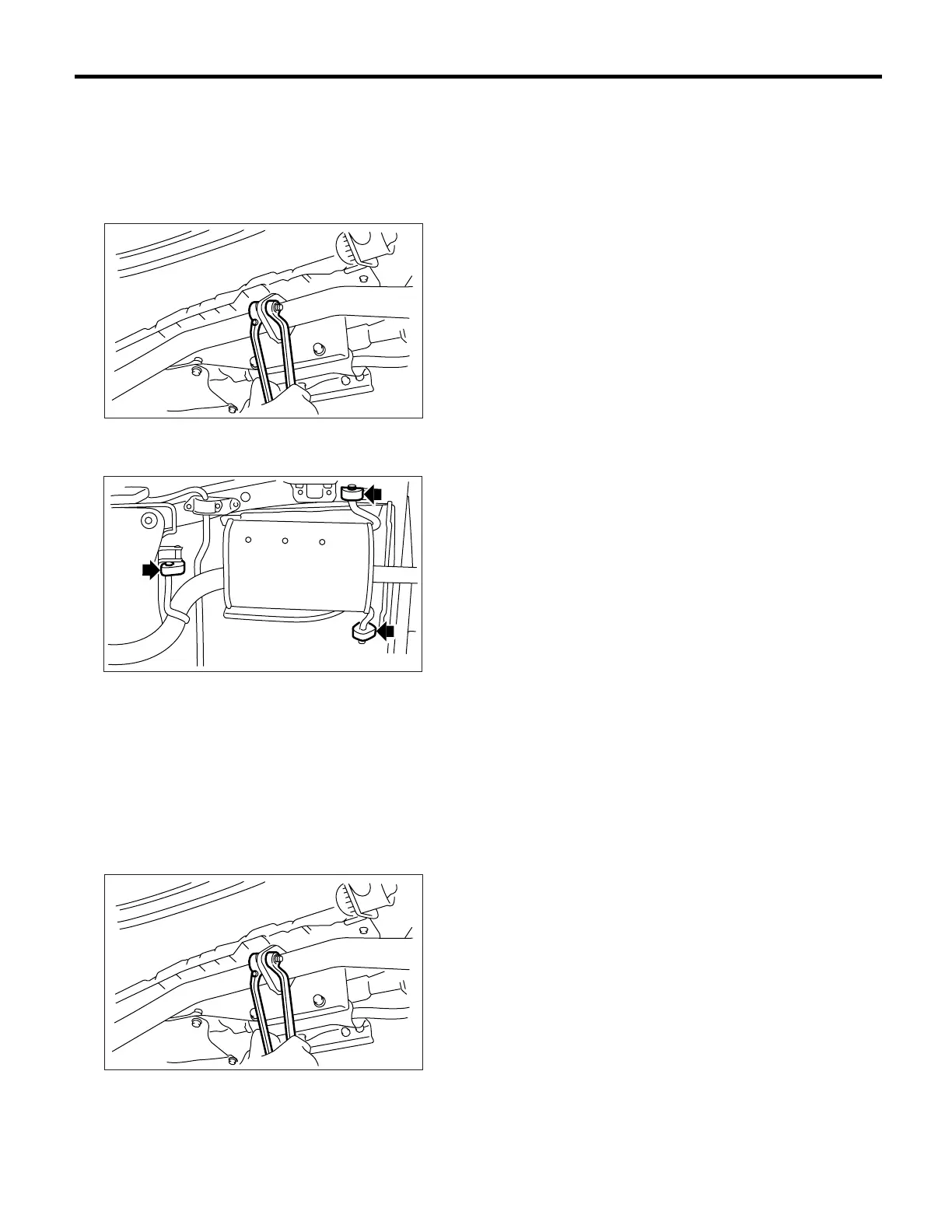

A: REMOVAL
1) Separate the muffler from rear exhaust pipe.
CAUTION:
Be careful, the exhaust pipe is hot.
2) Apply a coat of spray type lubricant to the mating
area of cushion rubbers in advance.
3) Remove the front, right and left cushion rubber,
and detach the muffler assembly.
B: INSTALLATION
Install in the reverse order of removal.
NOTE:
Replace the gasket with a new one.
Tightening torque:
48 N·m (4.9 kgf-m, 35.4 ft-lb)
C: INSPECTION
1) Make sure there are no exhaust leaks from con-
nections and welds.
2) Make sure there are no holes or rusting.
3) Make sure the cushion rubber is not worn or
cracked.
