IN(H4SO)-5
INTAKE (INDUCTION)
Air Cleaner Case
3. Air Cleaner Case
A: REMOVAL

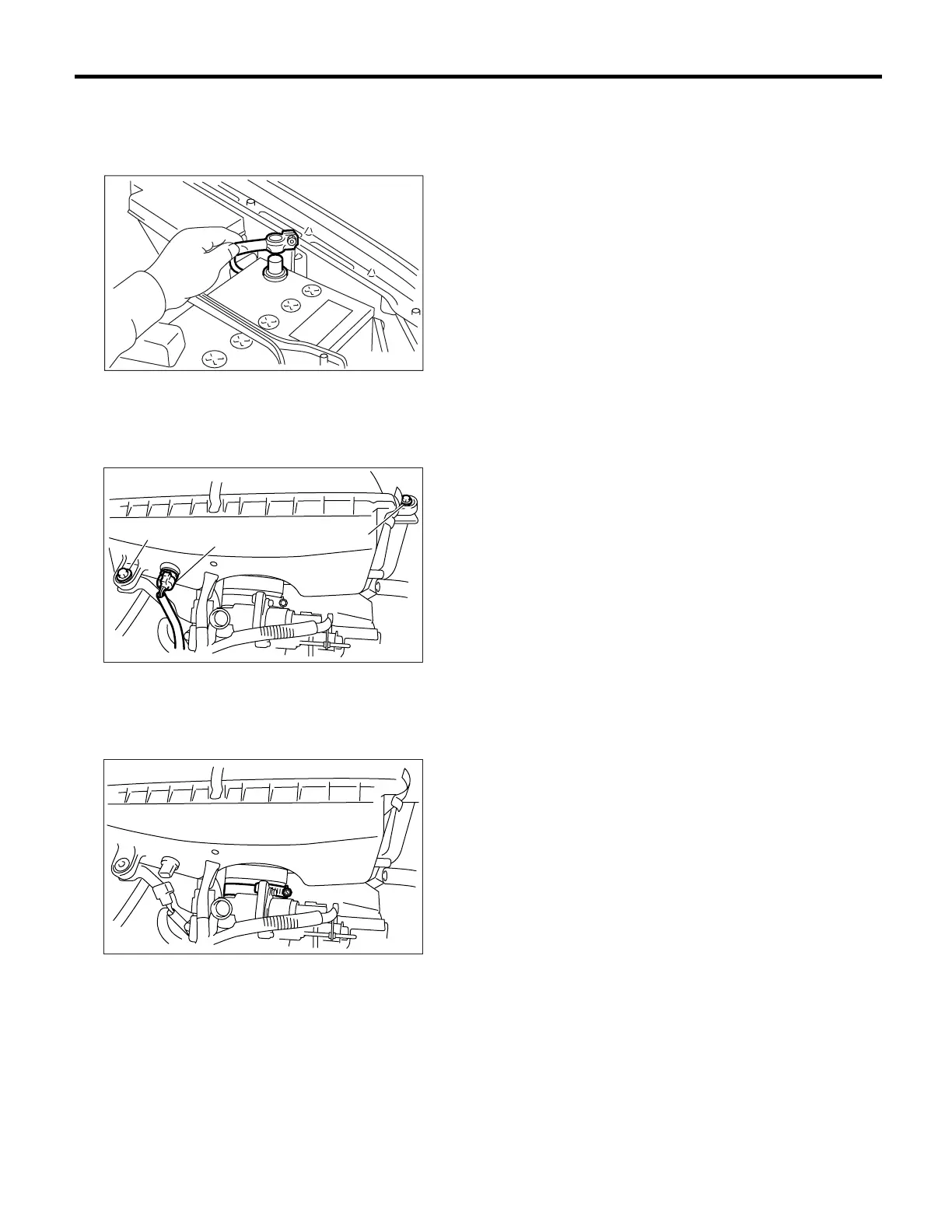

1) Disconnect the ground cable from battery.
2) Disconnect the connector (A) of intake air tem-
perature sensor.
3) Remove the bolt (B) which installs the air cleaner
case to the stay.
4) Disconnect the hoses and intake duct from the
air cleaner case.
5) Loosen the clamp which connects the air cleaner
case to throttle body.
6) Remove the air cleaner case.
B: INSTALLATION
Install in the reverse order of removal.
NOTE:
Refer to “COMPONENT” for tightening torque.
<Ref. to IN(H4SO)-2, COMPONENT, General De-
scription.>
C: INSPECTION
Inspect for cracks and loose connections.
FU-00009
IN-00040
(B)
(A)
(B)
IN-00041
