FU(H4SO)-30
FUEL INJECTION (FUEL SYSTEMS)

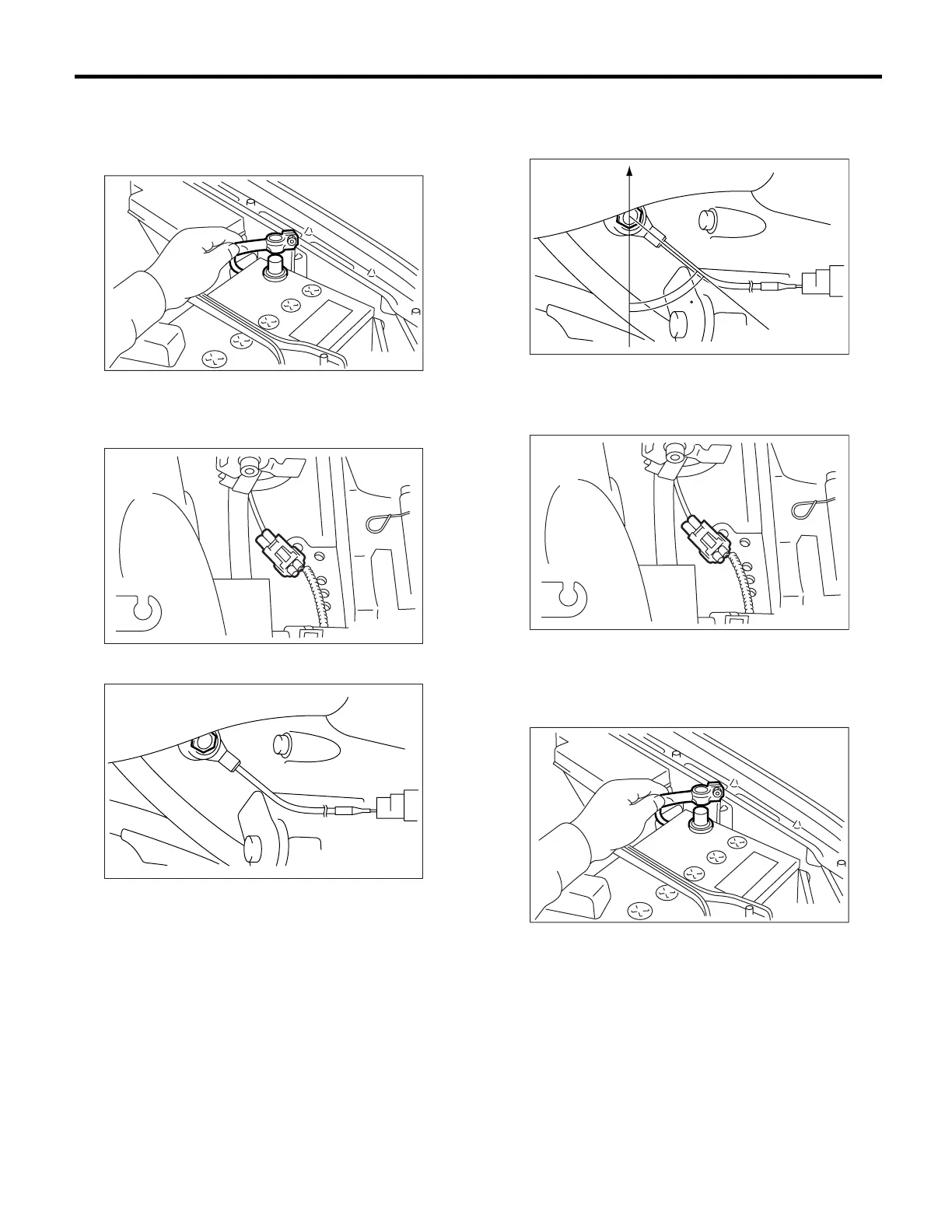

Knock Sensor
7. Knock Sensor
A: REMOVAL
1) Disconnect the ground cable from battery.
2) Remove the air cleaner case. <Ref. to
IN(H4SO)-5, REMOVAL, Air Cleaner Case.>
3) Disconnect the knock sensor connector.
4) Remove the knock sensor from cylinder block.
B: INSTALLATION
1) Install the knock sensor to cylinder block.
Tightening torque:
24 N·m (2.4 kgf-m, 17.4 ft-lb)
NOTE:
• For tightening torque, refer to “COMPONENT”.
<Ref. to FU(H4SO)-3, COMPONENT, General De-
scription.>
• The extraction area of the knock sensor cord
must be positioned at a 60° angle relative to engine
rear.
2) Connect the knock sensor connector.
3) Install the air cleaner case.
<Ref. to IN(H4SO)-5, REMOVAL, Air Cleaner
Case.>
4) Connect the battery ground cable to battery.
FU-00009
FU-00062
FU-00519
(A) Front side
FU-00413
(A)
60
FU-00062
FU-00009
