FU(H4SO)-51
FUEL INJECTION (FUEL SYSTEMS)
Fuel Tank
21.Fuel Tank
A: REMOVAL
WARNING:
• Place “NO FIRE” signs near working area.
• Be careful not to spill fuel.
1) Set the vehicle on a lift.
2) Release the fuel pressure. <Ref. to FU(H4SO)-
50, RELEASING OF FUEL PRESSURE, OPERA-
TION, Fuel.>
3) Drain fuel from fuel tank. <Ref. to FU(H4SO)-50,
DRAINING FUEL, OPERATION, Fuel.>
4) Remove the rear seat.

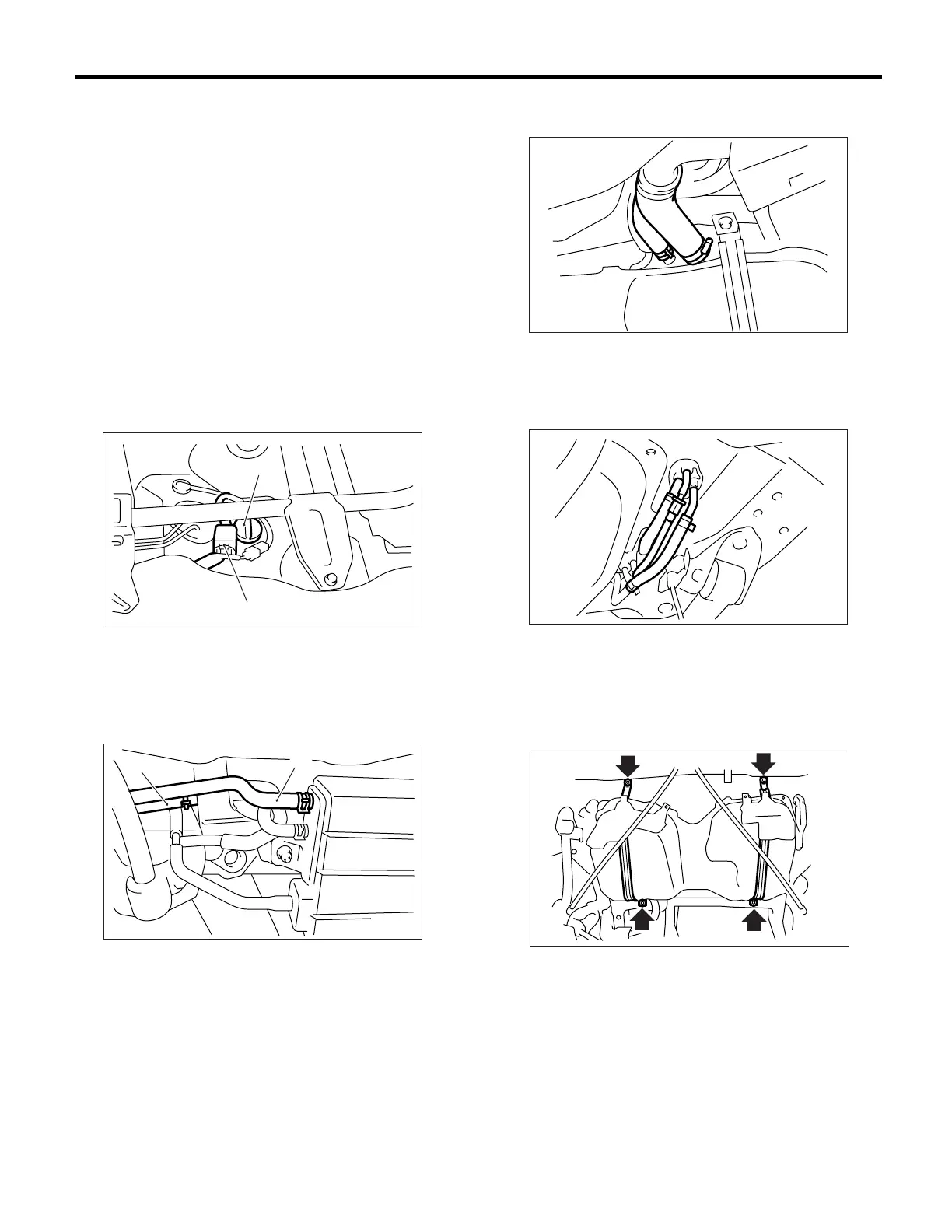

5) Disconnect the connector (A) of fuel tank cord to
rear harness.
6) Push the grommet (B) which holds the fuel tank
cord on floor panel into under the body.
7) Remove the rear crossmember. <Ref. to RS-21,
REMOVAL, Rear Crossmember.>
8) Disconnect the two-way valve hose (A) from
two-way valve, and then disconnect the canister
hose (B) from canister.
9) Loosen the clamp, and then disconnect the fuel
filler hose and air vent hose from the fuel filler pipe.
10) Move the clips, and then disconnect the quick
connector. <Ref. to FU(H4SO)-63, REMOVAL,
Fuel Delivery, Return and Evaporation Lines.>
11) Disconnect the fuel hoses.
12) Support the fuel tank with transmission jack,
and then remove the bolts from bands and dis-
mount the fuel tank from vehicle.
WARNING:
A helper is required to perform this work.
B: INSTALLATION
1) Support the fuel tank with transmission jack and
push the fuel tank harness into access hole with
grommet.
2) Set the fuel tank, and then temporarily tighten
the bolts of fuel tank bands.
(B)
(A)
FU-00090
(A)
(B)
FU-00091
FU-00092
FU-00093
FU-00411
