FU(H4SO)-52
FUEL INJECTION (FUEL SYSTEMS)
Fuel Tank
WARNING:
A helper is required to perform this work.

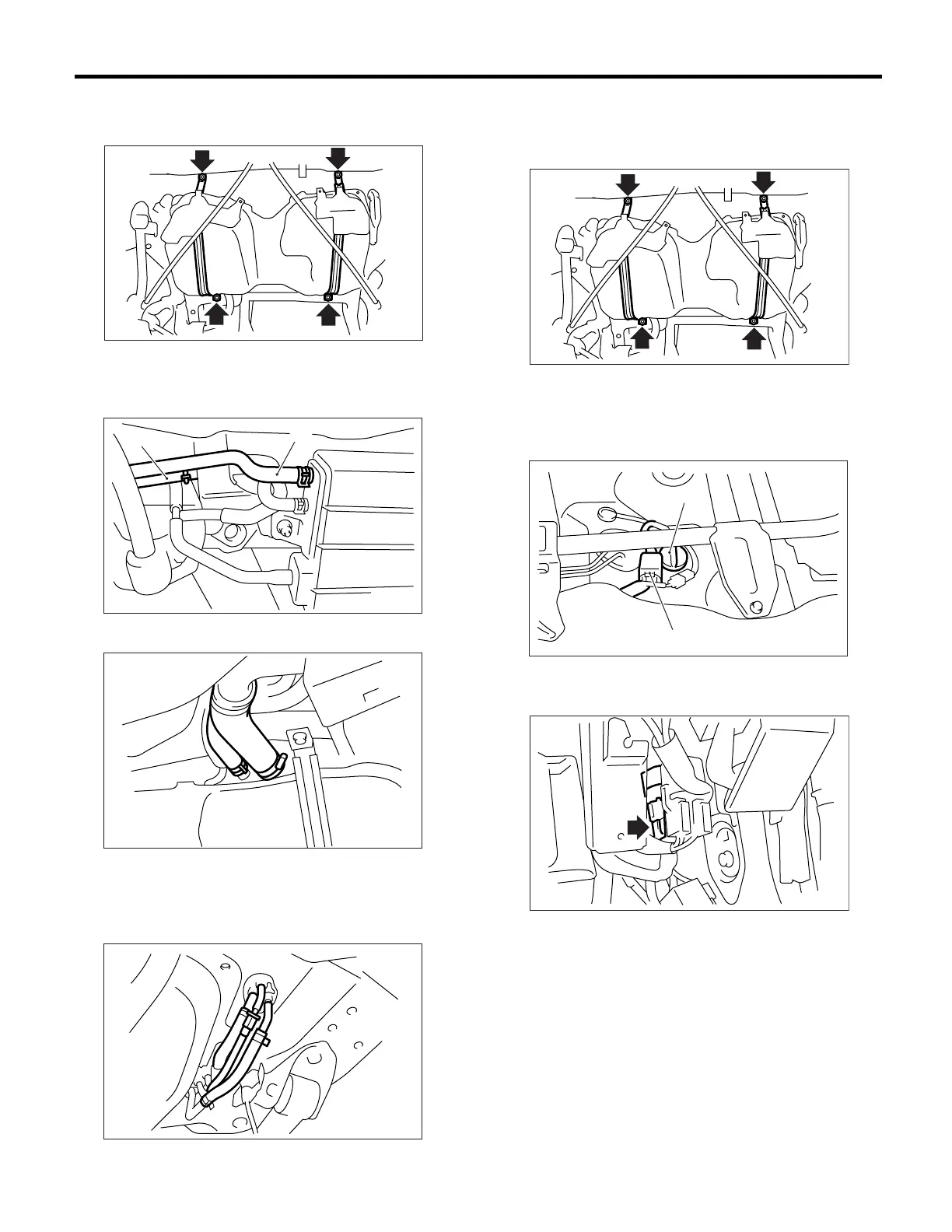

3) Connect the two-way valve hose (A) to two-way
valve, and then connect the canister hose (B) to
canister.
4) Connect the fuel filler hose and air vent hose.
5) Connect the fuel hoses, and then secure them
with clips and quick connector. <Ref. to FU(H4SO)-
64, INSTALLATION, Fuel Delivery, Return and
Evaporation Lines.>
6) Tighten the band mounting bolts.
Tightening torque:
33 N·m (3.4 kgf-m, 24.3 ft-lb)
7) Install the rear crossmember. <Ref. to RS-21,
INSTALLATION, Rear Crossmember.>
8) Connect the connector (A) to the fuel tank cord,
and then plug the service hole with grommet (B).
9) Set the rear seat and floor mat.
10) Connect the connector to fuel pump relay.
C: INSPECTION
1) Make sure there are no cracks, holes, or other
damage on fuel tank.
2) Make sure the fuel hoses and fuel pipes are not
cracked and the connections are tightened firmly.
FU-00411
(A)
(B)
FU-00091
FU-00092
FU-00093
FU-00411
(B)
(A)
FU-00090
FU-00262
