SC(H4SO)-14
STARTING/CHARGING SYSTEMS
Generator

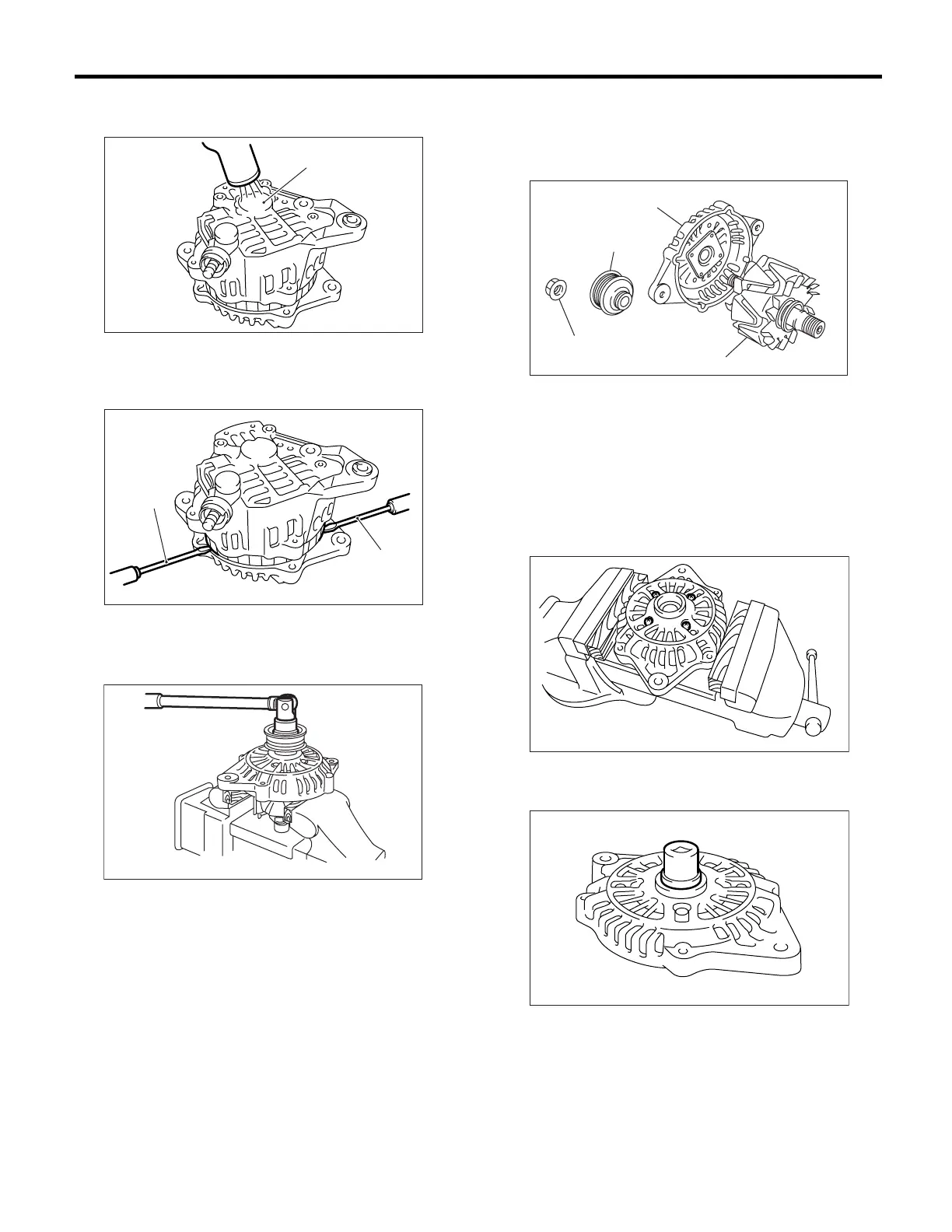

2) Heat portion (A) of rear cover to 50°C (122°F)
with a heater drier.
3) Then insert the tip of a flat tip screwdriver into the
gap between stator core and front cover. Pry them
apart to disassemble.
4) Hold the rotor with a vise and remove pulley nut.
CAUTION:
When holding the rotor with a vise, place alumi-
num plates or wooden pieces on the vise jaws
to prevent rotor from damage.
5) Remove the ball bearing as follows.
(1) Remove the bolt, and then remove the bear-
ing retainer.
(2) Firmly install an appropriate tool (such as a
fit socket wrench) to bearing inner race.
(3) Push the ball bearing off the front cover us-
ing a press.
(A) Screwdriver
SC-00079
(A)
SC-00080
(A)
(A)
SC-00035
(A) Front cover
(B) Pulley
(C) Nut
(D) Rotor
( A )
( B )
( C )
( D )
SC-00036
SC-00081
SC-00082
To Next Page
