SC(H4SO)-15
STARTING/CHARGING SYSTEMS
Generator

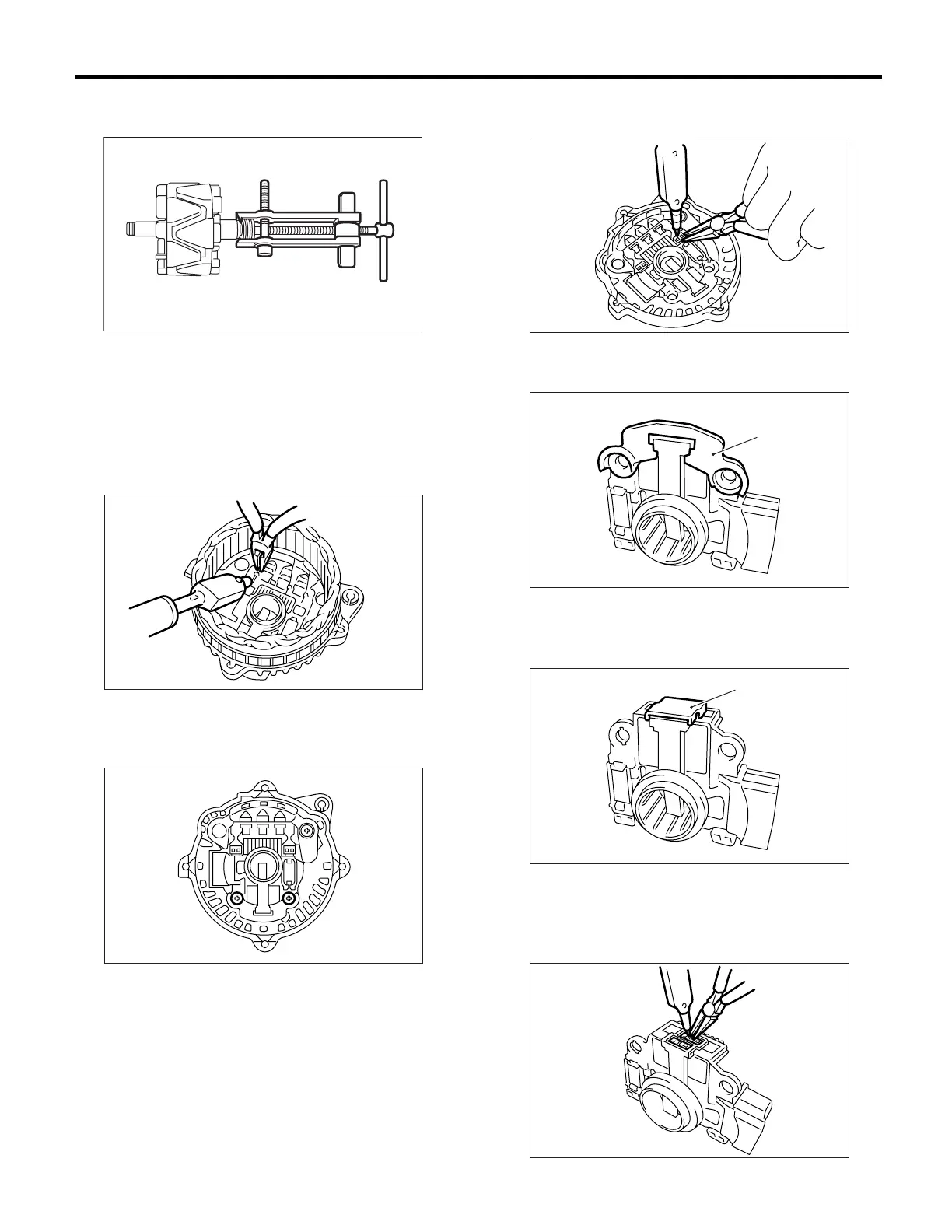

6) Remove the bearing from rotor using a bearing
puller.
7) Unsolder connection between rectifier and stator
coil to remove the stator coil.
CAUTION:
Do not allow a 180 — 270 W soldering iron to
contact the terminals for more than 5 seconds
at once because the rectifier cannot withstand
so much heat.
8) Remove the IC regulator as follows.
(1) Remove the screws which secure IC regula-
tor to rear cover.
(2) Unsolder the connection between IC regula-
tor and rectifier to remove the IC regulator.
9) Remove the brush as follows.
(1) Remove cover A.
(2) Remove cover B.
(3) Separate the brush from connection to re-
move.
SC-00046
SC-00083
SC-00084
(A) Cover A
(A) Cover B
SC-00085
SC-00086
(A)
SC-00087
(A)
SC-00088
To Next Page
