LU(H4SO)-16
LUBRICATION

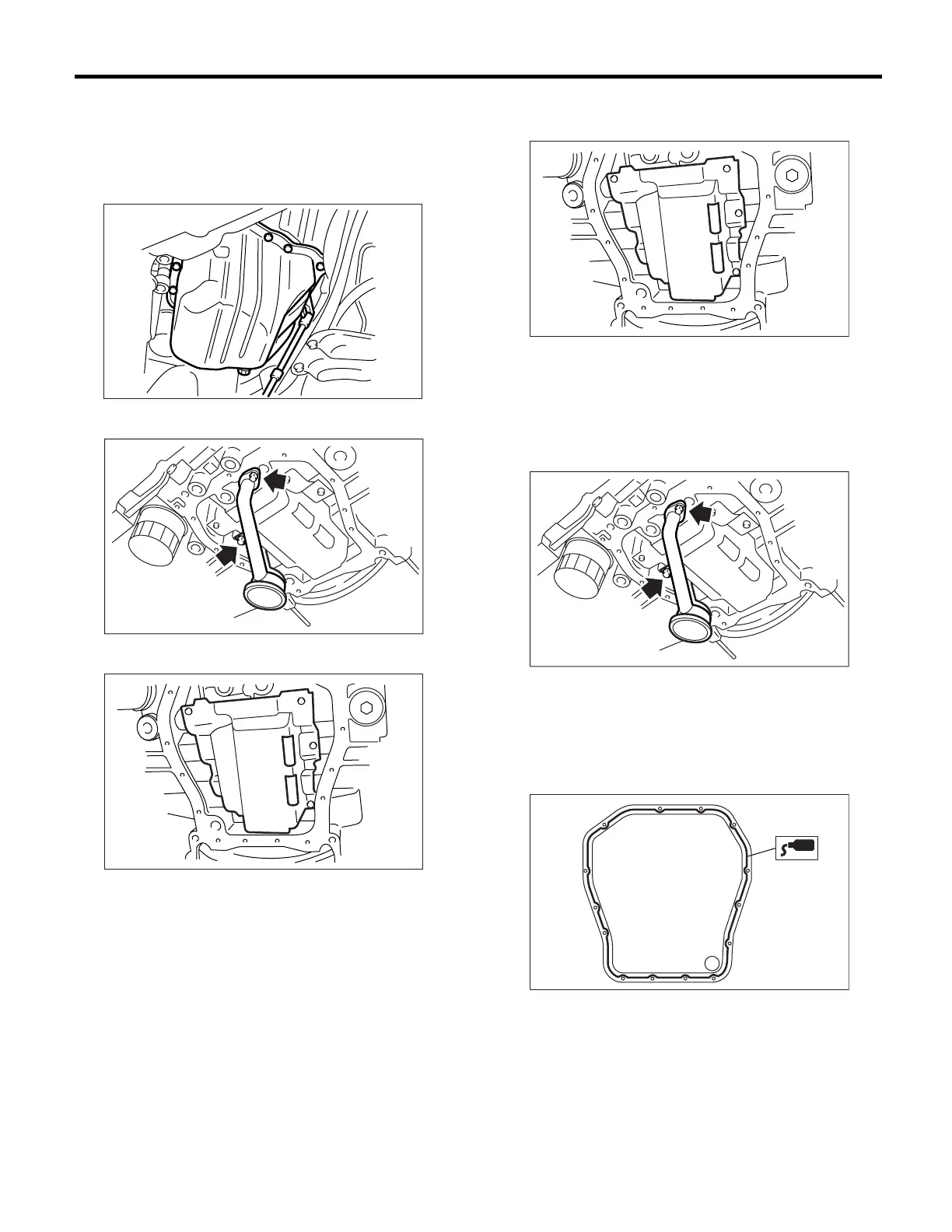

Oil Pan and Strainer
15) Insert the oil pan cutter blade between the cyl-
inder block to oil pan clearance.
CAUTION:
Do not use a screwdriver or similar tool in place
of oil pan cutter.
16) Remove the oil strainer.
17) Remove the baffle plate.
B: INSTALLATION
CAUTION:
Before installing the oil pan, clean the sealant
from oil pan and engine block.
1) Install the baffle plate.
Tightening torque:
6.4 N·m (0.65 kgf-m, 4.7 ft-lb)
2) Install the oil strainer onto baffle plate.
NOTE:
Replace the O-ring with a new one.
Tightening torque:
10 N·m (1.0 kgf-m, 7.2 ft-lb)
3) Apply fluid packing to the mating surfaces, and
then install the oil pan.
Fluid packing:
THREE BOND 1215 (Part No. 004403007) or
equivalent
4) Tighten the bolts which install the oil pan onto
engine block.
LU-00031
LU-00032
LU-00033
LU-00033
LU-00032
LU-00034
