LU(H4SO)-3
LUBRICATION
General Description

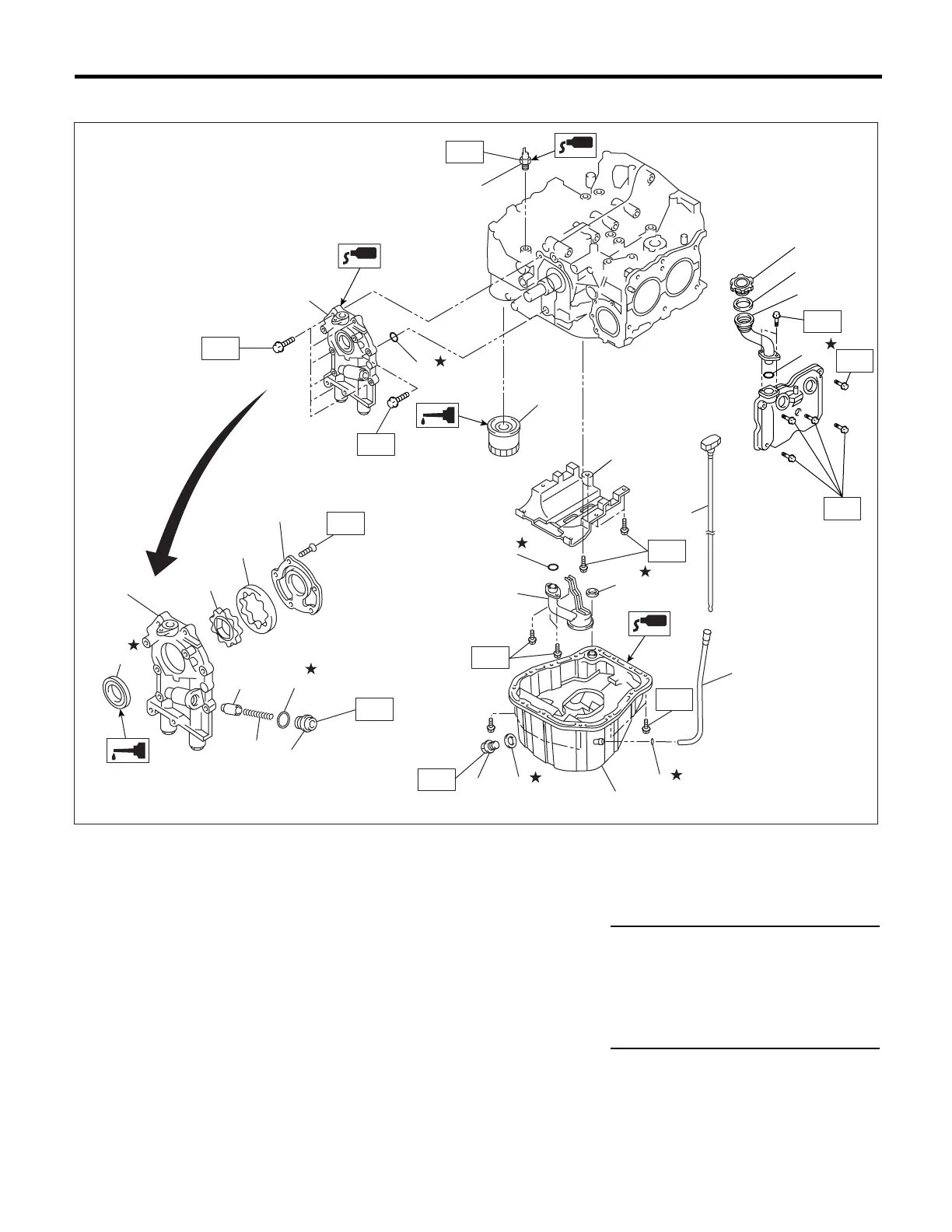

B: COMPONENT
(1) Plug (13) Oil pressure switch (25) Drain plug
(2) Gasket (14) Oil filler duct (26) Metal gasket
(3) Relief valve spring (15) O-ring (27) Gasket
(4) Relief valve (16) Oil filler cap
(5) Oil seal (17) O-ring Tightening torque: N·m (kgf-m, ft-lb)
(6) Oil pump case (18) Baffle plate T1: 5 (0.5, 3.6)
(7) Inner rotor (19) O-ring T2: 6.4 (0.65, 4.7)
(8) Outer rotor (20) Oil strainer T3: 10 (1.0, 7.2)
(9) Oil pump cover (21) Oil level gauge guide T4: 44 (4.5, 32.5)
(10) Oil filter (22) O-ring T5: 25 (2.5, 18.1)
(11) O-ring (23) Oil pan
(12) Oil pump ASSY (24) Oil level gauge
LU-00106
(12)
(11)
T5
T2
T1
T2
T2
T1
T1
T1
T3
T4
T2
(13)
(9)
(8)
(7)
(6)
(20)
(19)
(27)
(18)
(17)
(15)
(14)
(16)
(24)
(23)
(10)
(25)
(26)
(5)
(4)
(3)
(2)
(1)
(22)
(21)
T4
To Next Page
