IG(H4SO)-4
IGNITION
General Description
2. 2.0 L AND 2.5 L MODEL
C: CAUTION
• Wear working clothing, including a cap, protec-
tive goggles, and protective shoes during opera-
tion.
• Remove contamination including dirt and corro-
sion before removal, installation or disassembly.
• Keep the disassembled parts in order and pro-
tect them from dust or dirt.
• Before removal, installation or disassembly, be
sure to clarify the failure. Avoid unnecessary re-
moval, installation, disassembly, and replacement.
• Be careful not to burn your hands, because each
part on the vehicle is hot after running.
• Be sure to tighten fasteners including bolts and
nuts to the specified torque.
• Place shop jacks or rigid racks at the specified
points.
• Before disconnecting electrical connectors of
sensors or units, be sure to disconnect the ground
cable from battery.

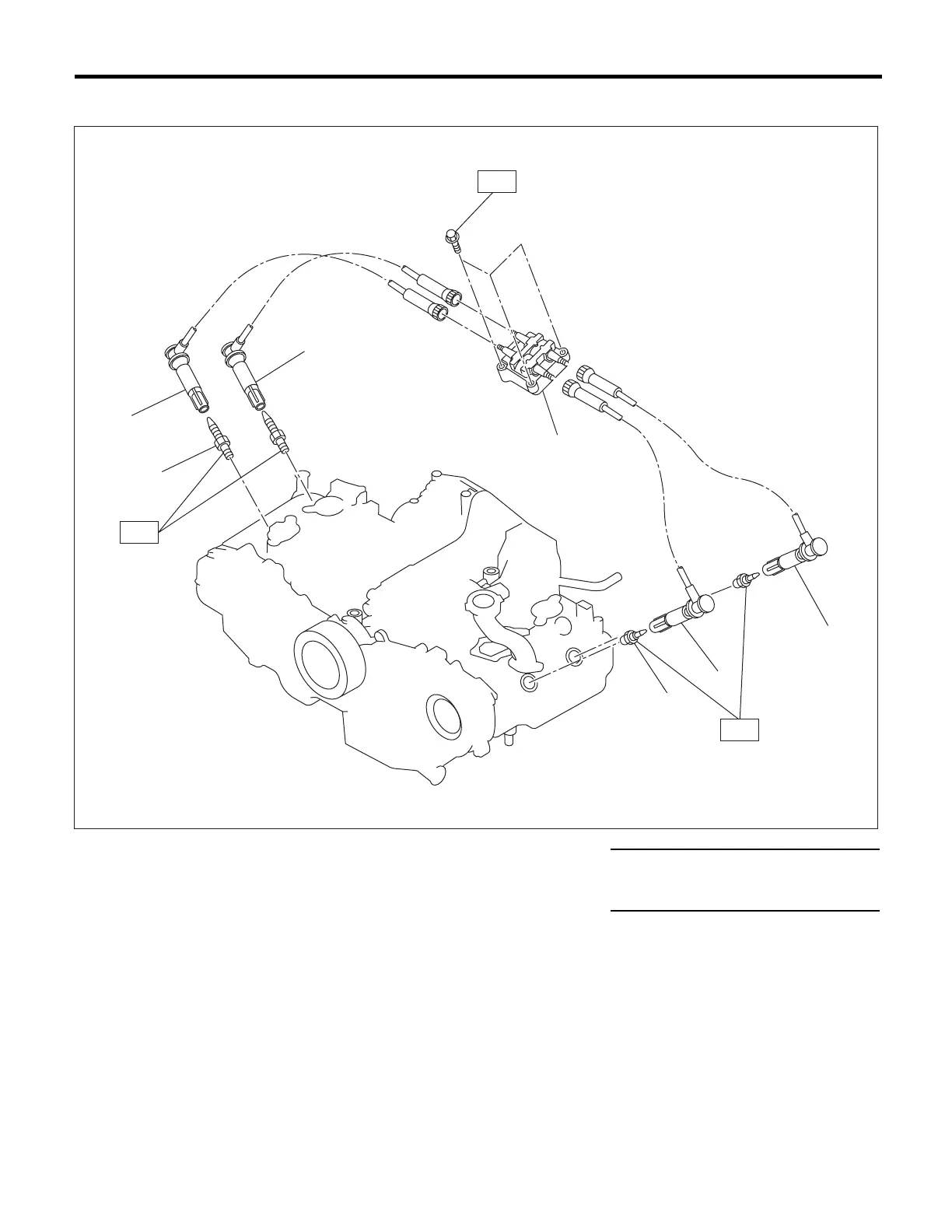

(1) Spark plug (4) Spark plug cord (#2, #4) Tightening torque: N·m (kgf-m, ft-lb)
(2) Spark plug cord (#1, #3) T1: 6.4 (0.65, 4.7)
(3) Ignition coil & ignitor ASSY T2: 21 (2.1, 15.5)
IG-00088
(4)
(4)
(1)
T2
(2)
(2)
(1)
(3)
T1
T1
