Ignition Coil & Ignitor ASSY
Specified resistance: (1.6 L model)
[Secondary side]
Between (A) and (B)
18.0 k
Ω±
Ω±Ω±
Ω±
20%
Between (C) and (D)
18.0 k
Ω±
Ω±Ω±
Ω±
20%
Specified resistance: (2.0 L and 2.5 L model)
[Secondary side]
Between (A) and (B)
12.8 k
Ω±
Ω±Ω±
Ω±
15%
Between (C) and (D)
12.8 k
Ω±
Ω±Ω±
Ω±
15%
Insulation between primary terminal and case:
100 MΩ or more.

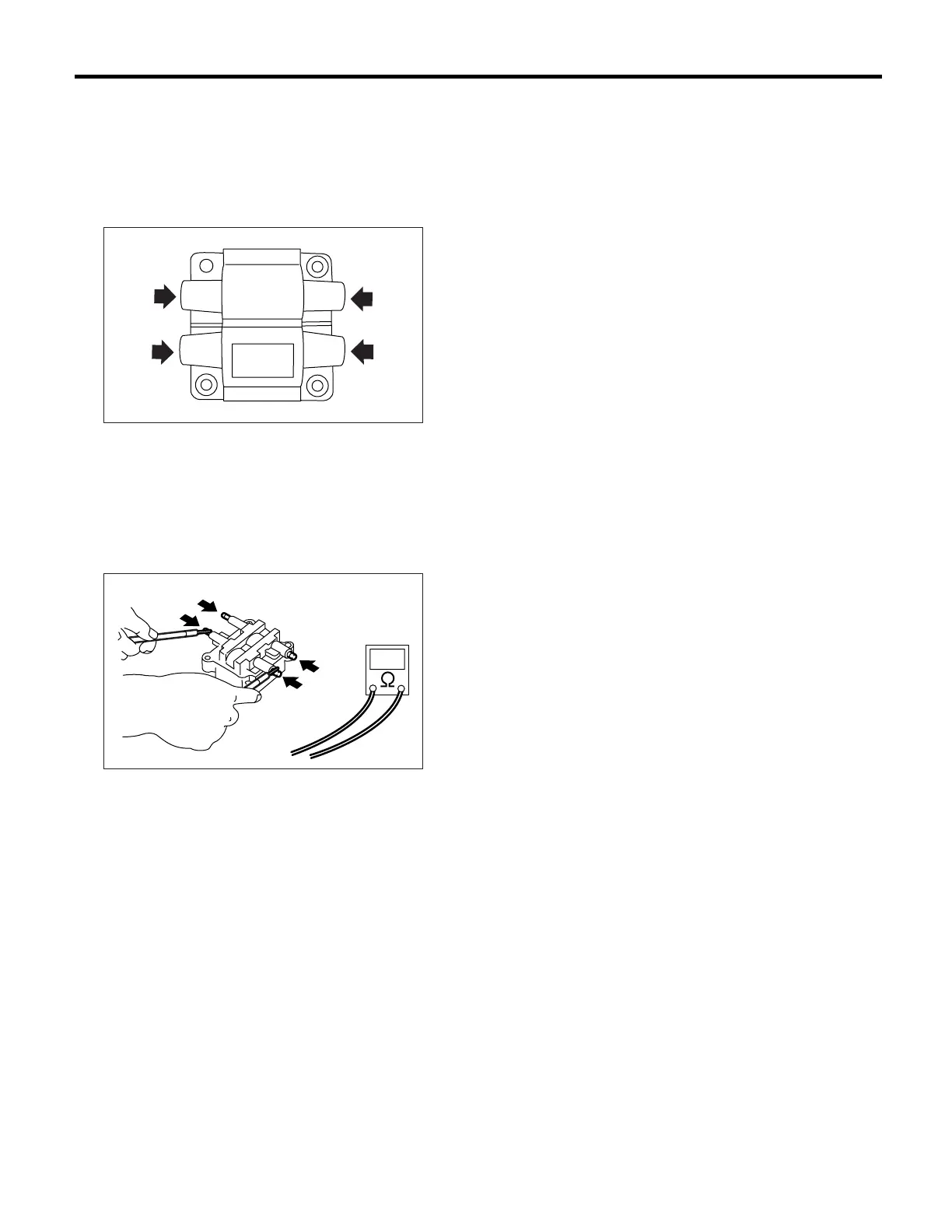

IG-00030
(A)
(B)
(C)
(D)
IG-00045
(C)
(A)
(D)
(B)
