Inspection Mode
1. PREPARATION FOR THE INSPECTION
MODE
1) Make sure the fuel remains approx. half amount
[20 — 40 2 (5.3 — 10.6 US gal, 4.4 — 8.8 Imp gal)]
and the battery voltage is 12 V or more.

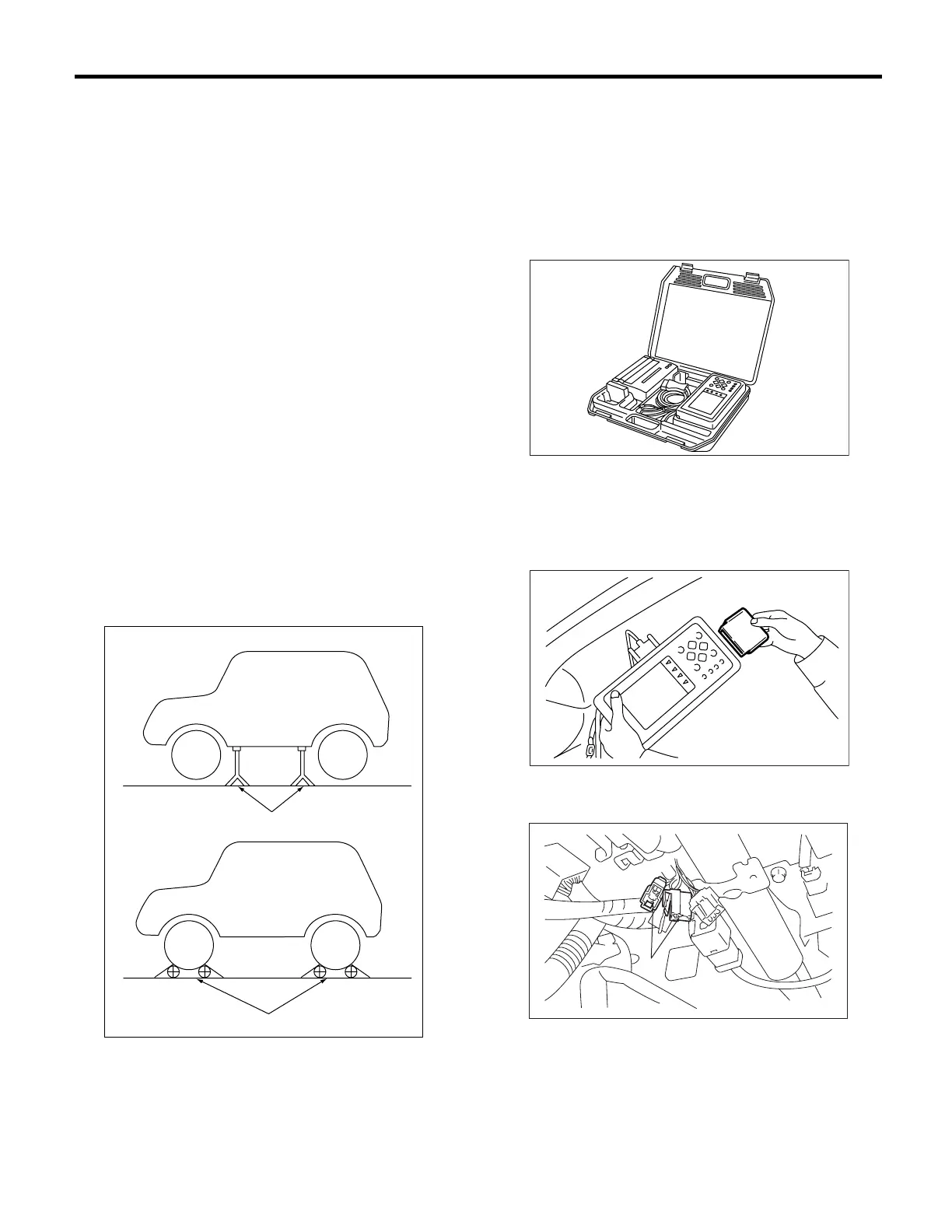

2) Raise the vehicle using a garage jack and place
on safety stands or drive the vehicle onto free roll-
ers.
WARNING:
• Before raising the vehicle, ensure the parking
brake is applied.
• Do not use a pantograph jack in place of a
safety stand.
• Secure a rope or wire to the front and rear
towing or tie-down hooks to prevent the lateral
runout of front wheels.
• Do not abruptly depress/release the clutch
pedal or accelerator pedal during works even
when engine is operating at low speeds since
this may cause vehicle to jump off free rollers.
• In order to prevent the vehicle from slipping
due to vibration, do not place any wooden
blocks or similar items between the safety
stands and the vehicle.
• Since the rear wheels will also rotate, do not
place anything near them. Also, make sure no-
body goes in front of the vehicle.
2. SUBARU SELECT MONITOR
1) After clearing the memory, check for any remain-
ing unresolved trouble data. <Ref. to EN(H4SO)(di-
ag)-47, Clear Memory Mode.>
2) Warm up the engine.
3) Prepare the Subaru Select Monitor kit. <Ref. to
EN(H4SO)(diag)-8, PREPARATION TOOL, Gen-
eral Description.>
4) Connect the diagnosis cable to Subaru Select
Monitor.
5) Insert the cartridge into Subaru Select Monitor.
<Ref. to EN(H4SO)(diag)-8, PREPARATION
TOOL, General Description.>
6) Connect the test mode connector (A) at the low-
er portion of instrument panel (on driver’s side).
7) Connect the Subaru Select Monitor to data link
connector.
