Malfunction Indicator Light
B: ACTIVATION OF MALFUNCTION
INDICATOR LIGHT
1) When the ignition switch is turned to ON (engine
off), the malfunction indicator light (A) in the combi-
nation meter illuminates.
NOTE:
If the malfunction indicator light does not illuminate,
perform diagnostics of the malfunction indicator
light circuit or the combination meter circuit. <Ref.
to EN(H4SO)(diag)-52, MALFUNCTION INDICA-
TOR LIGHT DOES NOT COME ON., Malfunction
Indicator Light.>
2) After starting the engine, the malfunction indica-
tor light goes out. If it does not, either the engine or
the emission control system is malfunctioning.
3) If the diagnosis system senses a misfire which
could damage the catalyzer, the malfunction indi-
cator light will blink at a cycle of 1 Hz.
4) When the ignition switch is turned to ON (engine
off) or to “START” with test mode connector con-
nected, the malfunction indicator light blinks at a
cycle of 3 Hz.

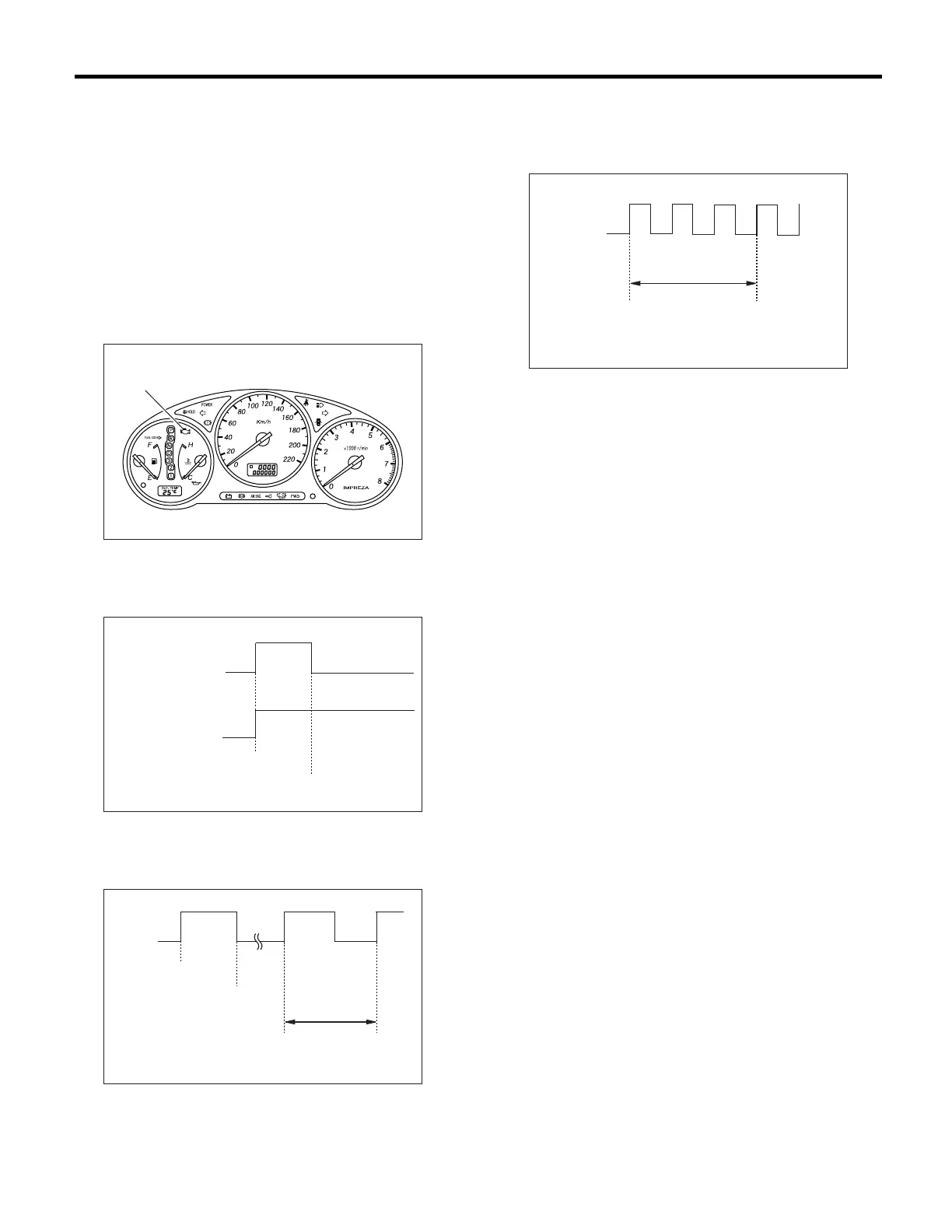

EN-01416
(A)
EN-01597
a) No trouble
b) Trouble occurs.
ON
OFF
ON
ON
OFF
Ignition
switch
Engine
start
EN-01598
ON
OFF
ON
Ignition
switch
Engine
start
Misfire
start
1 sec.
EN-01599
ON
OFF
ON
Ignition
switch
1 sec.
