Diagnostics for Engine Starting Failure
C: CONTROL MODULE POWER SUPPLY AND GROUND LINE
CAUTION:
After repair or replacement of faulty parts, conduct Clear Memory Mode <Ref. to EN(H4SO)(diag)-47,
OPERATION, Clear Memory Mode.> and Inspection Mode <Ref. to EN(H4SO)(diag)-40, OPERATION,
Inspection Mode.>.

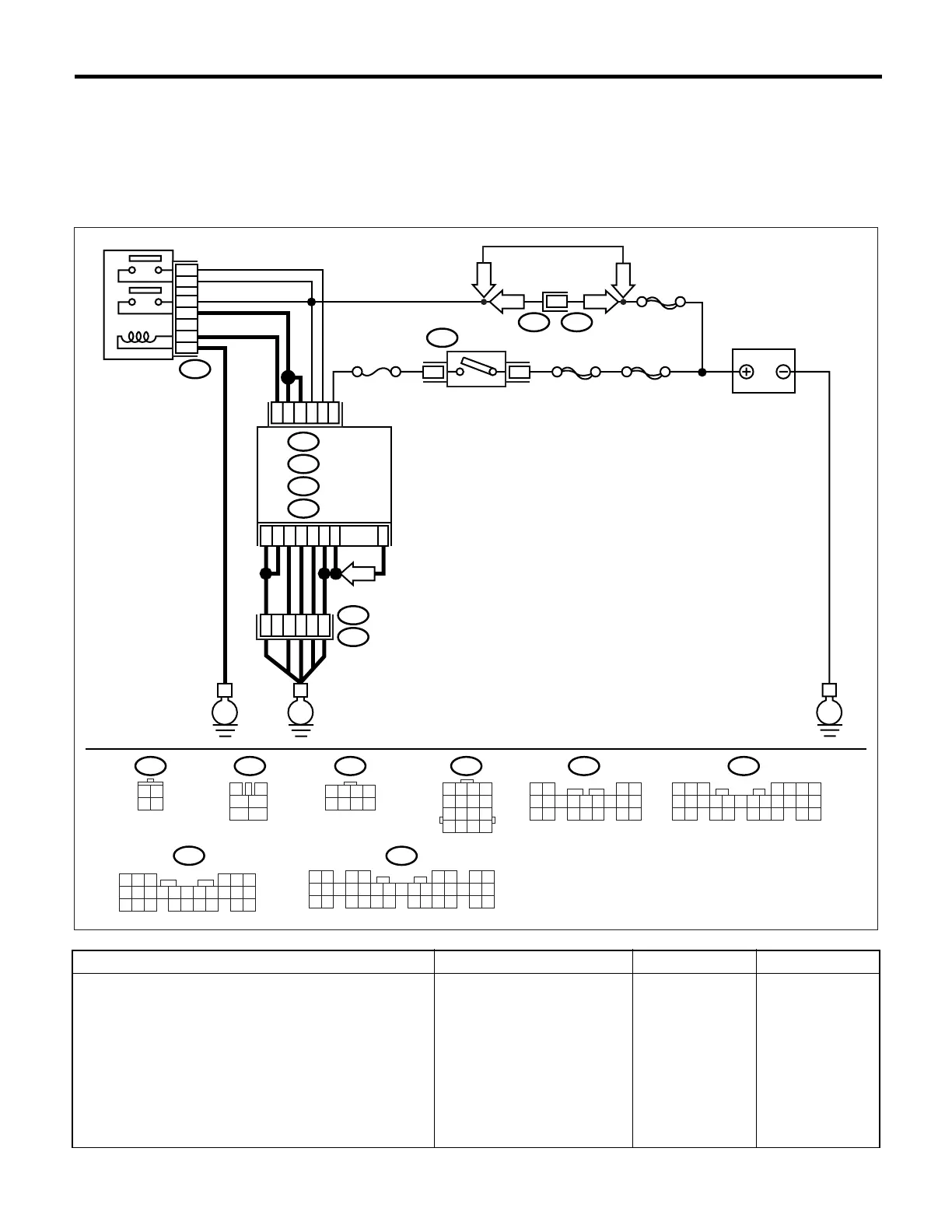

• WIRING DIAGRAM:
Step Check Yes No
1 CHECK MAIN RELAY.
1)Turn the ignition switch to OFF.
2)Remove the main relay.
3)Connect the battery to main relay terminals
No. 1 and No. 2.
4)Measure the resistance between main relay
terminals.
Terminals
No. 3 — No. 5:
No. 4 — No. 6:
Is the resistance less than 10
Ω?
Go to step 2. Replace the main
relay.
EN-01444
B72
34
