FUEL INJECTION (FUEL SYSTEMS)
General Description

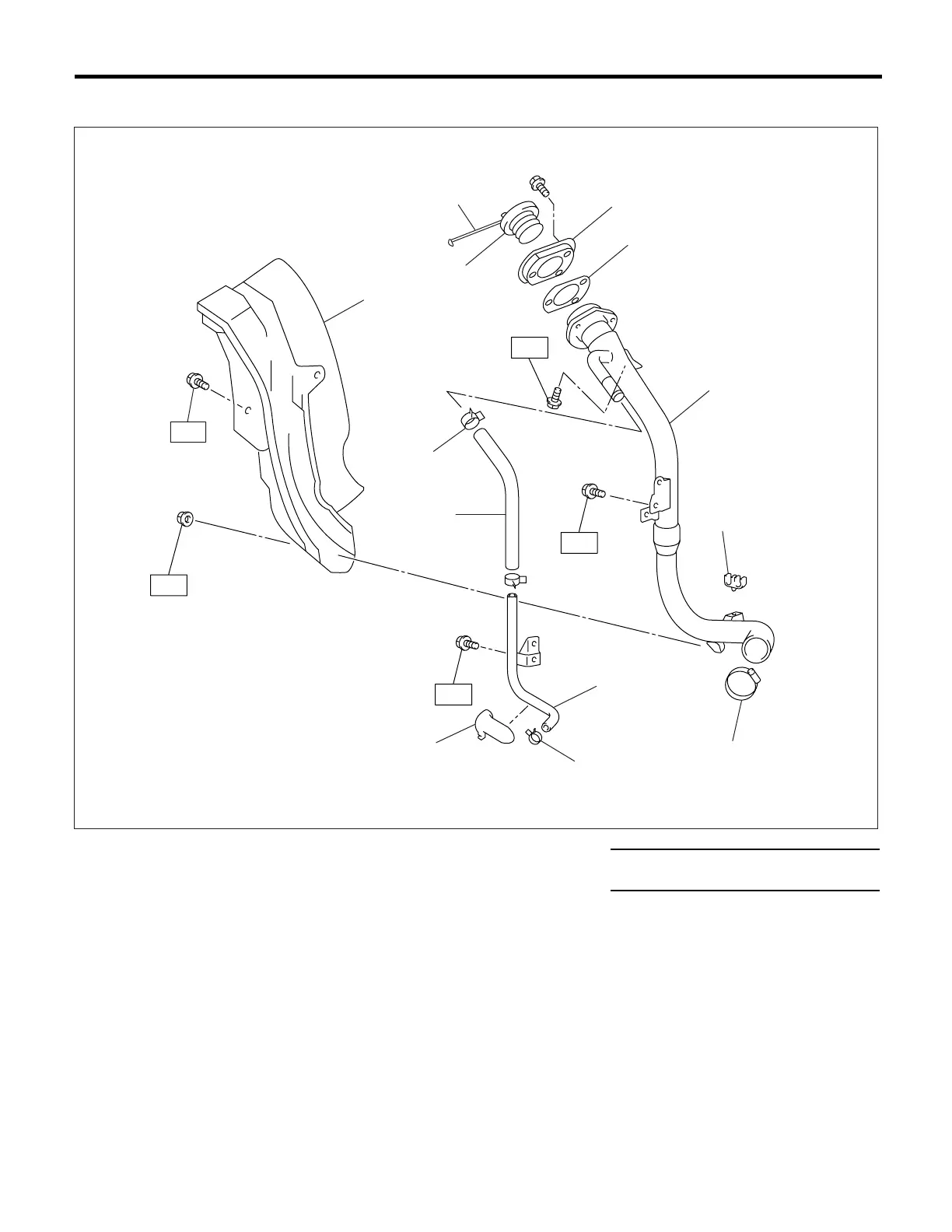

6. FUEL FILLER PIPE
(1) Fuel filler pipe ASSY (7) Air vent pipe holder Tightening torque: N·m (kgf-m, ft-lb)
(2) Evaporation hose holder (8) Filler pipe packing T: 7.5 (0.76, 5.5)
(3) Clip (9) Filler ring
(4) Clamp (10) Filler cap
(5) Air vent hose (11) Filler cap tether
(6) Air vent pipe (12) Filler pipe protector
FU-00956
(4)
(2)
(8)
(1)
(12)
(11)
(6)
(7)
(9)
(10)
(5)
(3)
(3)
T
T
T
T
T
