Intake Manifold

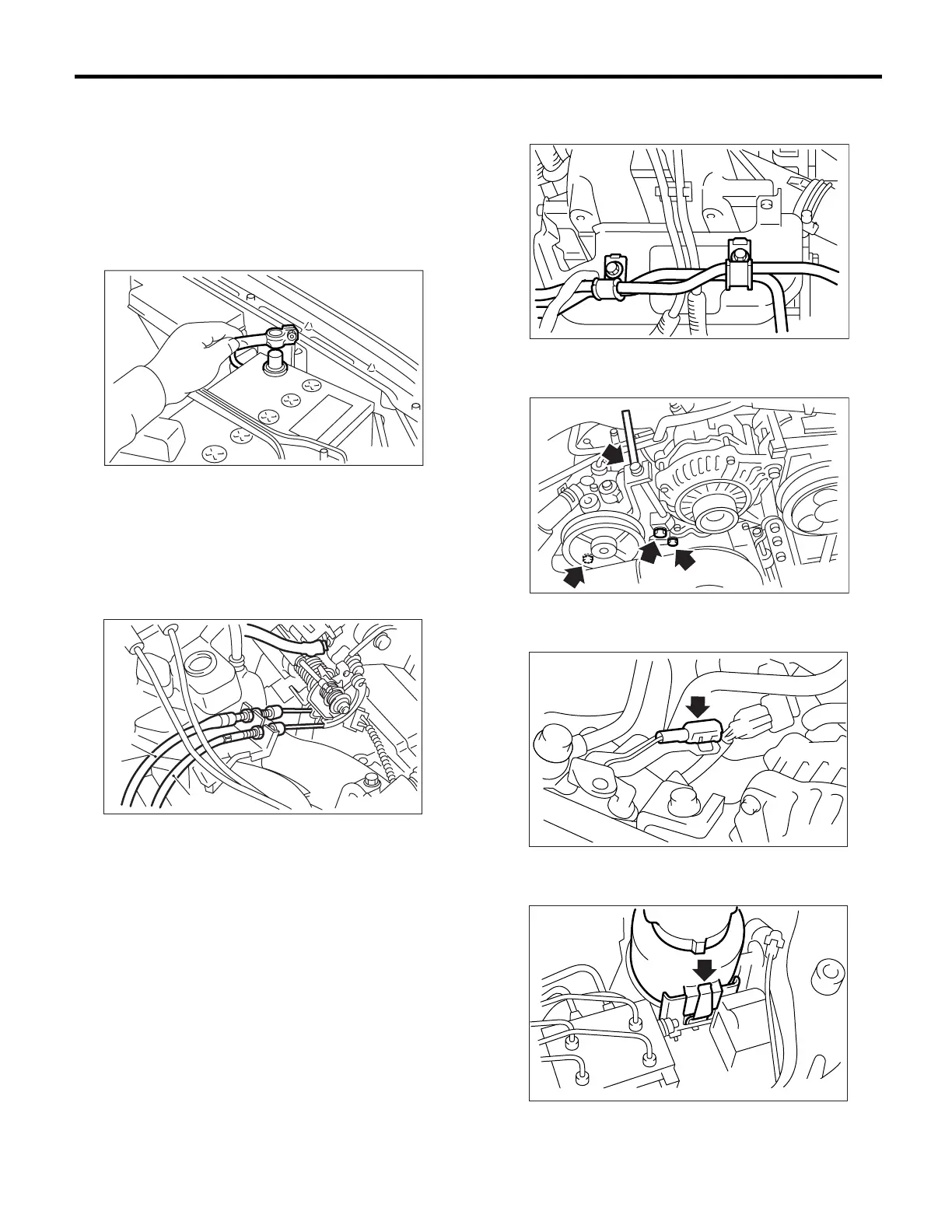

3. Intake Manifold
A: REMOVAL
1) Release the fuel pressure. <Ref. to FU(H4SOw/
oOBD)-46, RELEASING OF FUEL PRESSURE,
OPERATION, Fuel.>
2) Open the fuel flap lid and remove the fuel filler
cap.
3) Disconnect the ground cable from battery.
4) Remove the air intake duct and air cleaner as-
sembly. <Ref. to IN(H4SO)-6, REMOVAL, Air In-
take Duct.> and <Ref. to IN(H4SO)-5, REMOVAL,
Air Cleaner Case.>
5) Disconnect the accelerator cable (A).
6) Disconnect the cruise control cable (B). (Model
with cruise control)
7) Remove the power steering pump and tank from
brackets.
(1) Remove the resonator chamber. <Ref. to
IN(H4SO)-7, REMOVAL, Resonator Chamber.>
(2) Remove the front side V-belt. <Ref. to
ME(H4SO)-43, REMOVAL, V-belt.>
(3) Remove the bolts which hold the power
steering pipes onto intake manifold protector.
NOTE:
Do not disconnect the power steering hose.
(4) Remove the bolts which install the power
steering pump bracket.
(5) Disconnect the connector from power steer-
ing pump switch.
(6) Remove the power steering tank from the
bracket by pulling it upward.
FU-00009
FU-00912
( A )
( B )
FU-00255
FU-00139
FU-00017
FU-00020
To Next Page
