FU(H4SOw/oOBD)-48
FUEL INJECTION (FUEL SYSTEMS)
Fuel Tank

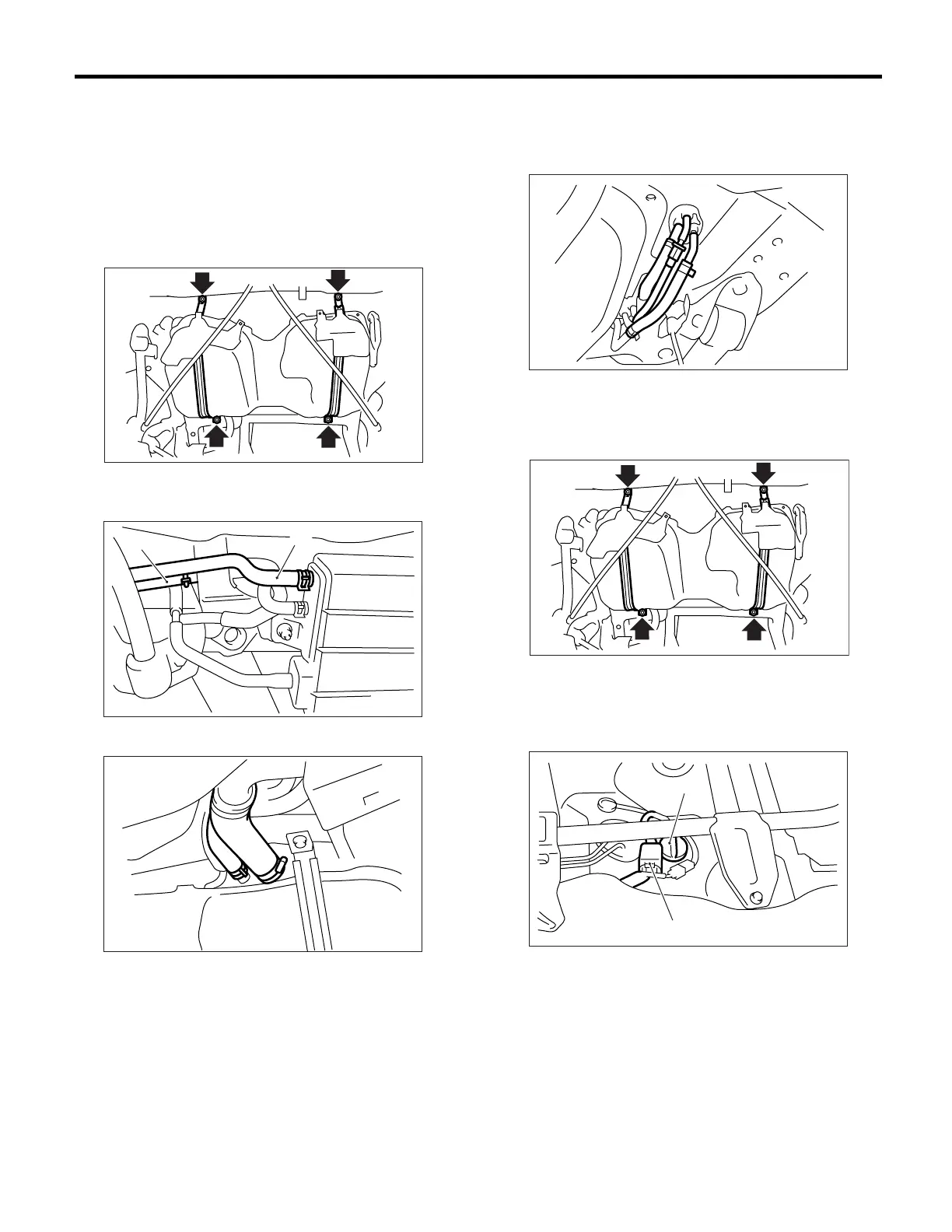

B: INSTALLATION
1) Support the fuel tank with transmission jack and
push the fuel tank harness into access hole with
grommet.
2) Set the fuel tank and temporarily tighten the
bolts of fuel tank bands.
WARNING:
A helper is required to perform this work.
3) Connect the two-way valve hose (A) to two-way
valve and connect the canister hose (B) to canister.
4) Connect the fuel filler hose and air vent hose.
5) Connect the fuel hoses, and then secure them
with clips and quick connector. <Ref. to
FU(H4SOw/oOBD)-63, INSTALLATION, Fuel De-
livery, Return and Evaporation Lines.>
6) Tighten the band mounting bolts.
Tightening torque:
33 N·m (3.4 kgf-m, 24.3 ft-lb)
7) Install the rear crossmember. <Ref. to RS-21,
INSTALLATION, Rear Crossmember.>
8) Connect the connectors (A) to fuel tank cord and
plug the service hole with grommet (B).
9) Set the rear seat and floor mat.
FU-00411
(A)
(B)
FU-00091
FU-00092
FU-00093
FU-00411
(B)
(A)
FU-00090
To Next Page
