FU(H4SOw/oOBD)-50
FUEL INJECTION (FUEL SYSTEMS)

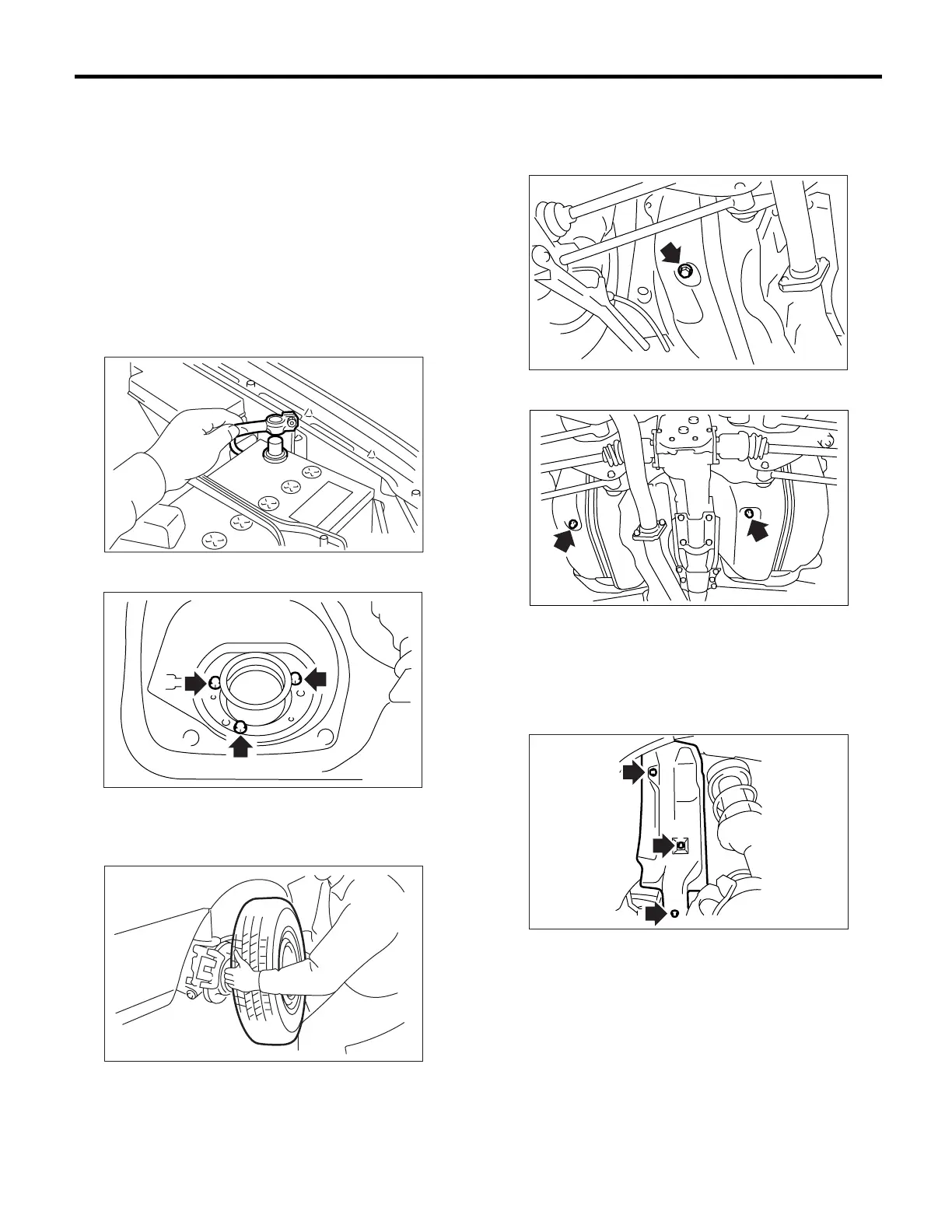

Fuel Filler Pipe
18.Fuel Filler Pipe
A: REMOVAL
WARNING:
• Place “NO FIRE” signs near working area.
• Be careful not to spill fuel on floor.
1) Set the vehicle on a lift.
2) Release the fuel pressure. <Ref. to FU(H4SOw/
oOBD)-46, RELEASING OF FUEL PRESSURE,
OPERATION, Fuel.>
3) Open the fuel filler flap lid and remove the fuel
filler cap.
4) Disconnect the ground cable from battery.
5) Remove the screws holding packing in place.
6) Remove the nuts of rear wheel RH.
7) Lift-up the vehicle.
8) Remove the rear wheel RH.
9) Drain fuel from the fuel tank. Set a container un-
der the vehicle and remove the drain plug from fuel
tank.
• 1.6 L and 2.0 L MODEL
• 2.5 L MODEL
10) Tighten the fuel drain plug and then install the
front right side tank cover.
Tightening torque:
26 N·m (2.7 kgf-m, 19.2 ft-lb)
11) Remove the fuel filler pipe protector.
FU-00009
FU-00095
FU-00096
FU-00898
FU-00089
FU-00947
To Next Page
