FU(H4SOw/oOBD)-52
FUEL INJECTION (FUEL SYSTEMS)
Fuel Filler Pipe

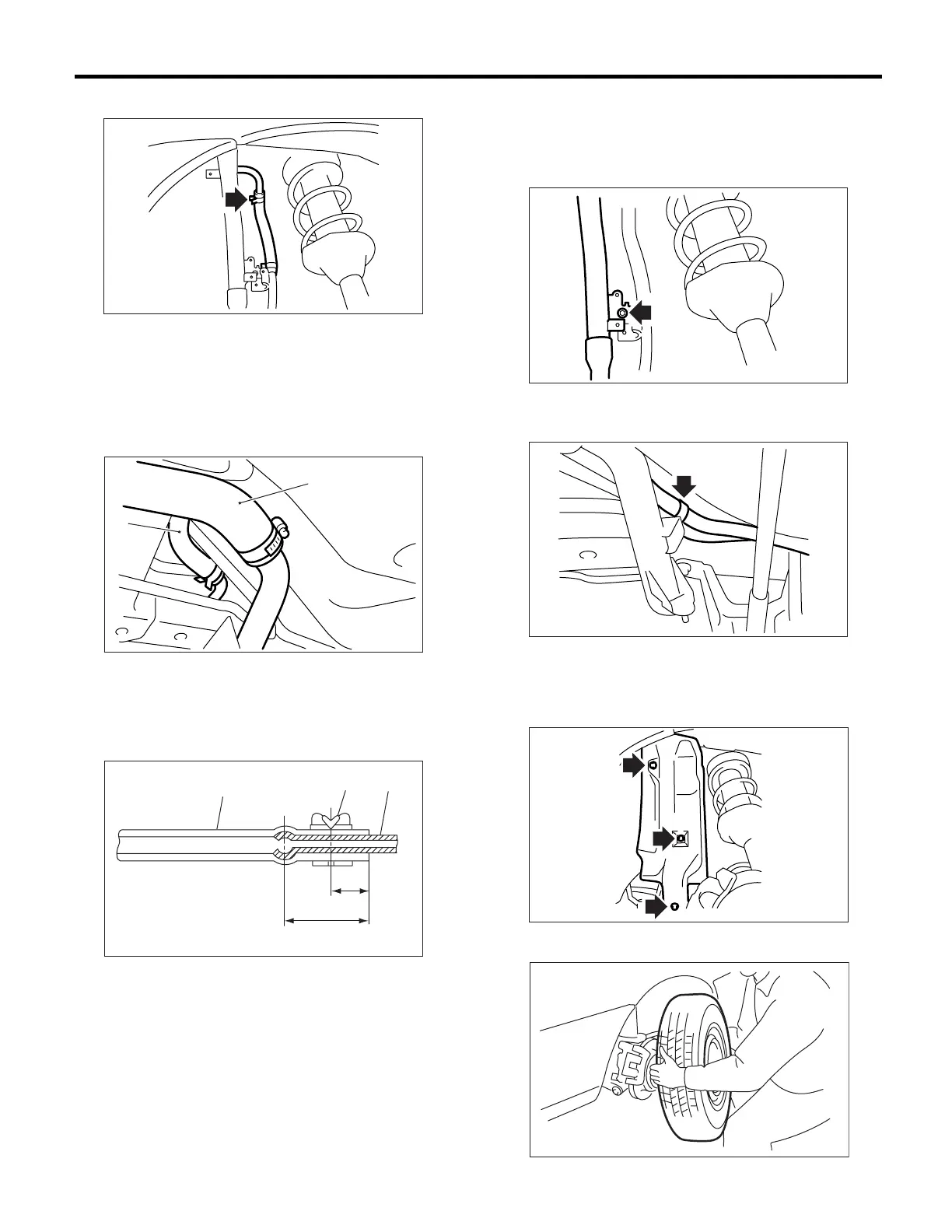

5) Connect the air vent hose to the fuel filler pipe.
6) Insert the fuel filler hose (A) approx. 35 to 40 mm
(1.38 to 1.57 in) over the lower end of fuel filler pipe
and tighten the clamp.
CAUTION:
Do not allow the clips to touch the air vent hose
(B) and rear suspension crossmember.
7) Insert the air vent hose approx. 25 to 30 mm
(0.98 to 1.18 in) into the lower end of air vent pipe
and hold clip.
L = 27.5
±
±±
±
2.5 mm (1.083
±
±±
±
0.098 in)
8) Tighten the bolt which holds the fuel filler pipe
bracket on body.
Tightening torque:
7.4 N·m (0.75 kgf-m, 5.4 ft-lb)
9) Tighten the bolts which hold the evaporation
hoses onto clip of fuel filler pipe.
10) Install the fuel filler pipe protector.
Tightening torque:
7.4 N·m (0.75 kgf-m, 5.4 ft-lb)
11) Install the rear wheel RH.
(1) Hose
(2) Clip
(3) Pipe
FU-00099
(A)
(B)
FU-00101
FU-00104
(1)
(2)
L/2
L
(3)
FU-00100
FU-00098
FU-00947
FU-00096
