FU(H4SOw/oOBD)-60
FUEL INJECTION (FUEL SYSTEMS)
Fuel Cut Valve
23.Fuel Cut Valve
A: REMOVAL
WARNING:
• Place “NO FIRE” signs near working area.
• Be careful not to spill fuel on floor.
1) Remove the fuel tank. <Ref. to FU(H4SOw/
oOBD)-47, REMOVAL, Fuel Tank.>

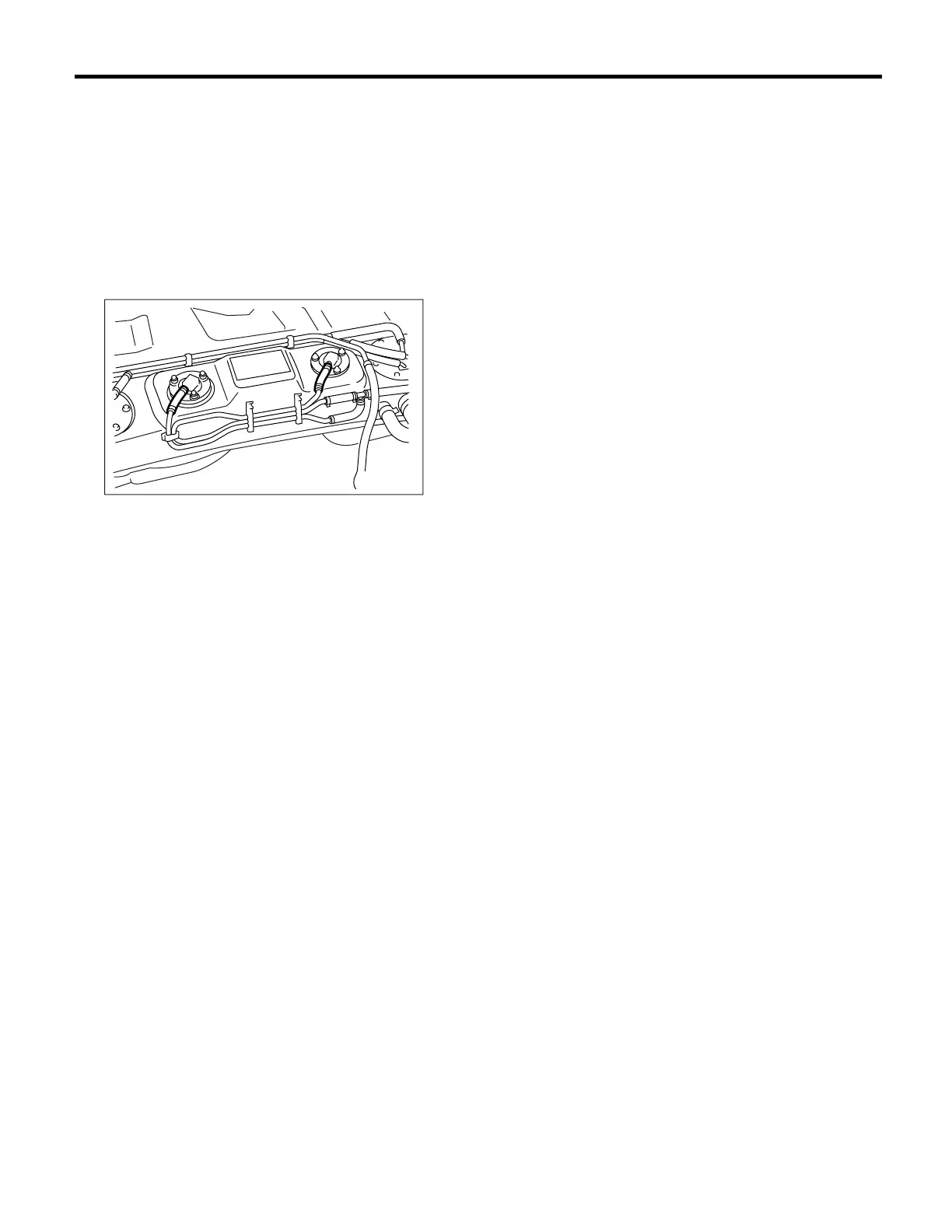

2) Move the clip and disconnect the evaporation
hose from fuel cut valve.
3) Remove the bolts which install the fuel cut valve.
B: INSTALLATION
Install in the reverse order of removal.
NOTE:
For tightening torque, refer to “COMPONENT”.
<Ref. to FU(H4SOw/oOBD)-3, COMPONENT,
General Description.>
FU-00119
To Next Page
