FU(H4SOw/oOBD)-62
FUEL INJECTION (FUEL SYSTEMS)
Fuel Delivery, Return and Evaporation Lines
25.Fuel Delivery, Return and Evaporation Lines
A: REMOVAL
1) Set the vehicle on a lift.
2) Release the fuel pressure. <Ref. to FU(H4SOw/oOBD)-46, RELEASING OF FUEL PRESSURE, OPER-
ATION, Fuel.>
3) Open the fuel filler flap lid and remove the fuel filler cap.
4) Remove the floor mat. <Ref. to EI-55, REMOVAL, Floor Mat.>

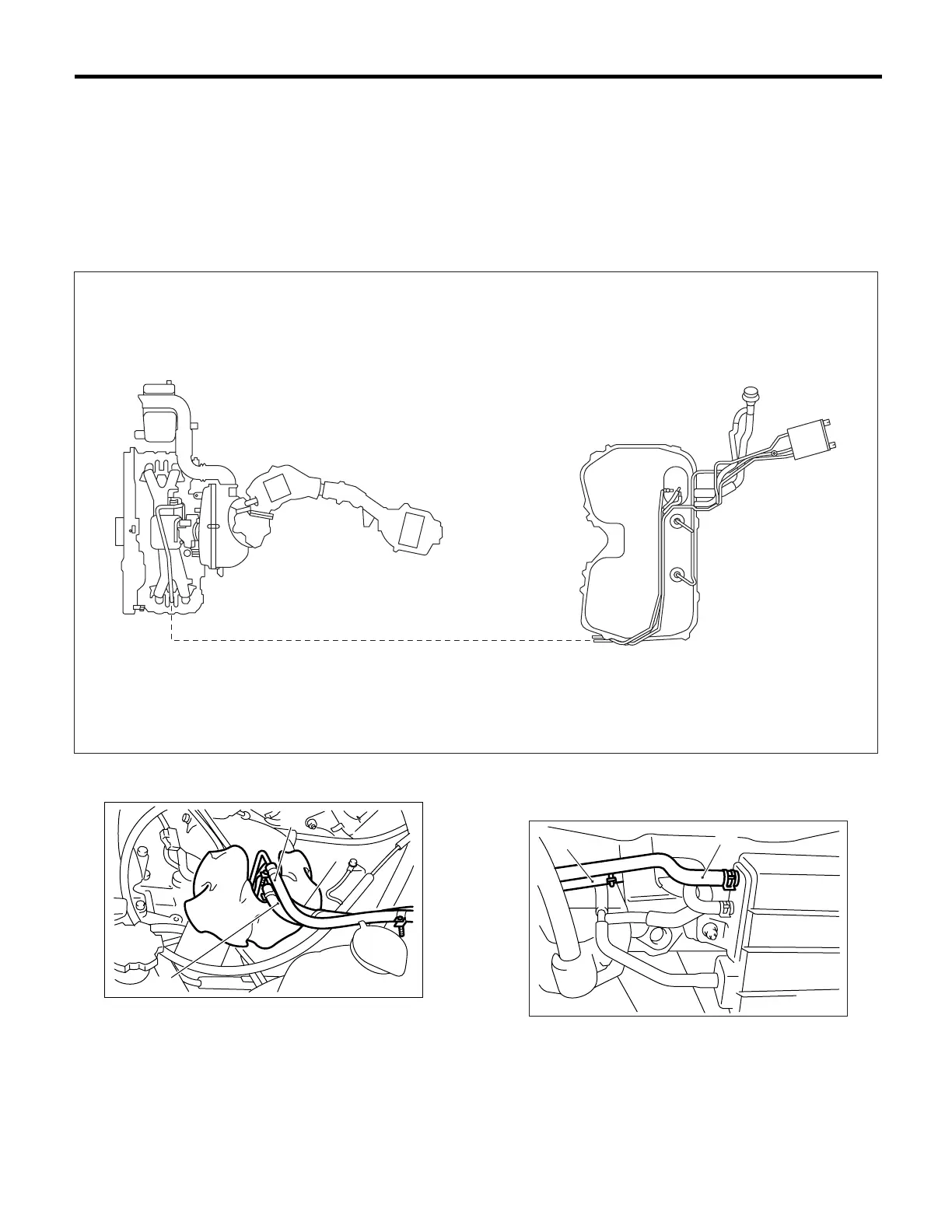

5) Remove the fuel delivery pipes and hoses, fuel return pipes and hoses, evaporation pipes and hoses.
6) In the engine compartment, detach the fuel de-
livery hoses, return hoses and evaporation hose.
7) Lift-up the vehicle.
8) Disconnect the two-way valve hose (A) from
two-way valve and disconnect the canister hose (B)
from canister.
FU-00952
(A) Fuel delivery hose
(B) Return hose
(C) Evaporation hose
(B)
(A)
(C)
FU-00374
(A)
(B)
FU-00091
To Next Page
