EX(H4SOw/oOBD)-10
EXHAUST
Rear Exhaust Pipe

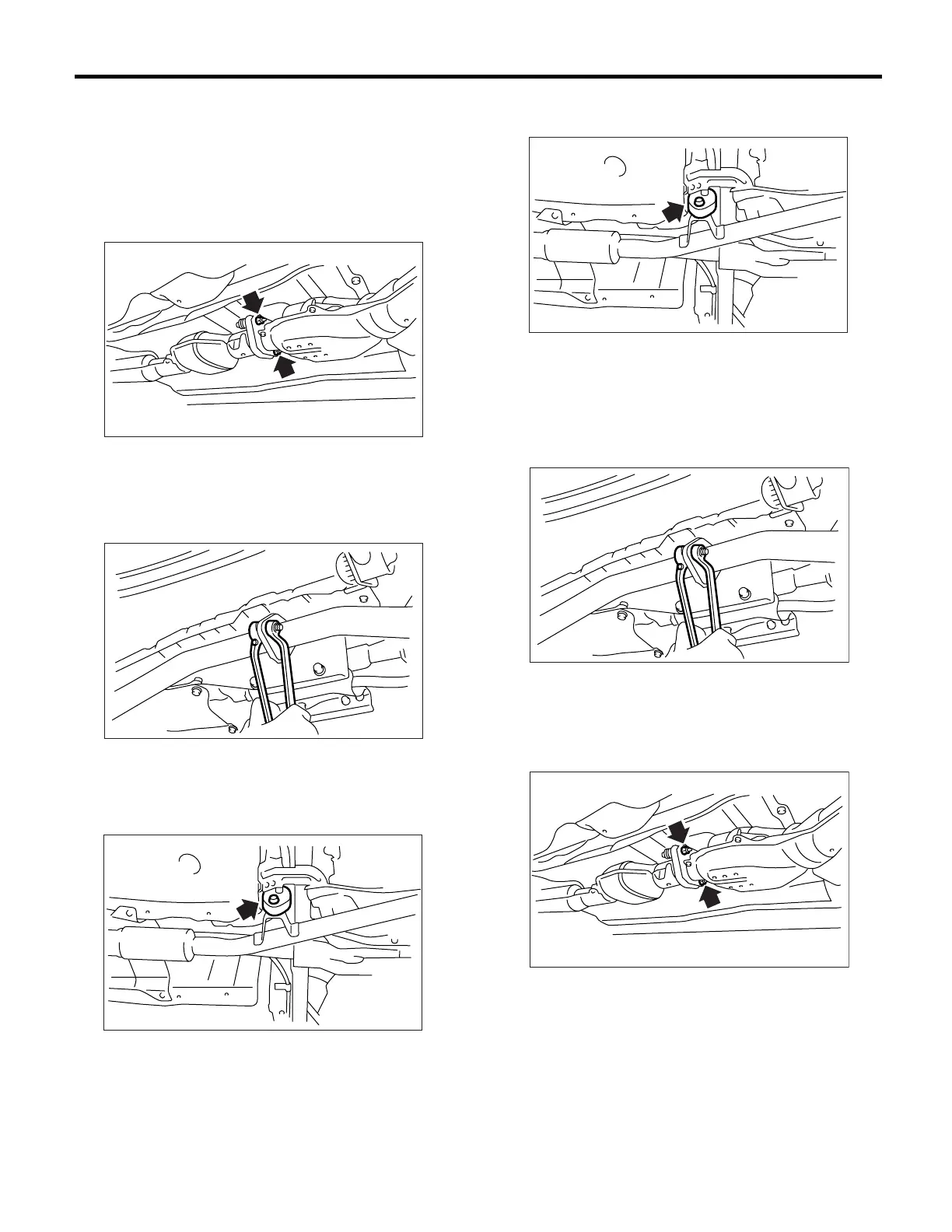

4. Rear Exhaust Pipe
A: REMOVAL
1) Separate the rear exhaust pipe from center ex-
haust pipe.
CAUTION:
Be careful, the exhaust pipe is hot.
2) Separate the rear exhaust pipe from muffler.
CAUTION:
Be careful not to pull down the rear exhaust
pipe.
3) Apply a coat of spray type lubricant to the mating
area of cushion rubbers in advance.
4) Remove the rear exhaust pipe bracket from
cushion rubber.
B: INSTALLATION
1) Apply a coat of spray type lubricant to the mating
area of cushion rubbers in advance.
2) Install the rear exhaust pipe bracket to cushion
rubber.
NOTE:
Replace the gaskets with new ones.
3) Install the rear exhaust pipe to muffler.
Tightening torque:
48 N·m (4.9 kgf-m, 35.4 ft-lb)
4) Install the rear exhaust pipe to center exhaust
pipe.
Tightening torque:
18 N·m (1.8 kgf-m, 13.3 ft-lb)
C: INSPECTION
1) Make sure there are no exhaust leaks from con-
nections and welds.
2) Make sure there are no holes or rusting.
3) Make sure the cushion rubber is not worn or
cracked.
EX-00031
EX-00024
EX-00126
EX-00126
EX-00024
EX-00031
