FU(H4SO)-65
FUEL INJECTION (FUEL SYSTEMS)
Fuel Delivery, Return and Evaporation Lines
2: 2.5
±
±±
±
1.5 mm (0.098
±
±±
±
0.059 in)
L: 22.5
±
±±
±
2.5 mm (0.886
±
±±
±
0.098 in)
3) Connect the evaporation hose to pipe by approx.
15 to 20 mm (0.59 to 0.79 in) from the hose end.
L = 17.5
±
±±
±
2.5 mm (0.689
±
±±
±
0.098 in)
CAUTION:
Be sure to inspect the hoses and their connec-
tions for any leakage of fuel.
C: INSPECTION
1) Make sure that there are no cracks on the fuel
pipes and fuel hoses.
2) Make sure that the fuel pipe and fuel hose con-
nections are tightened firmly.

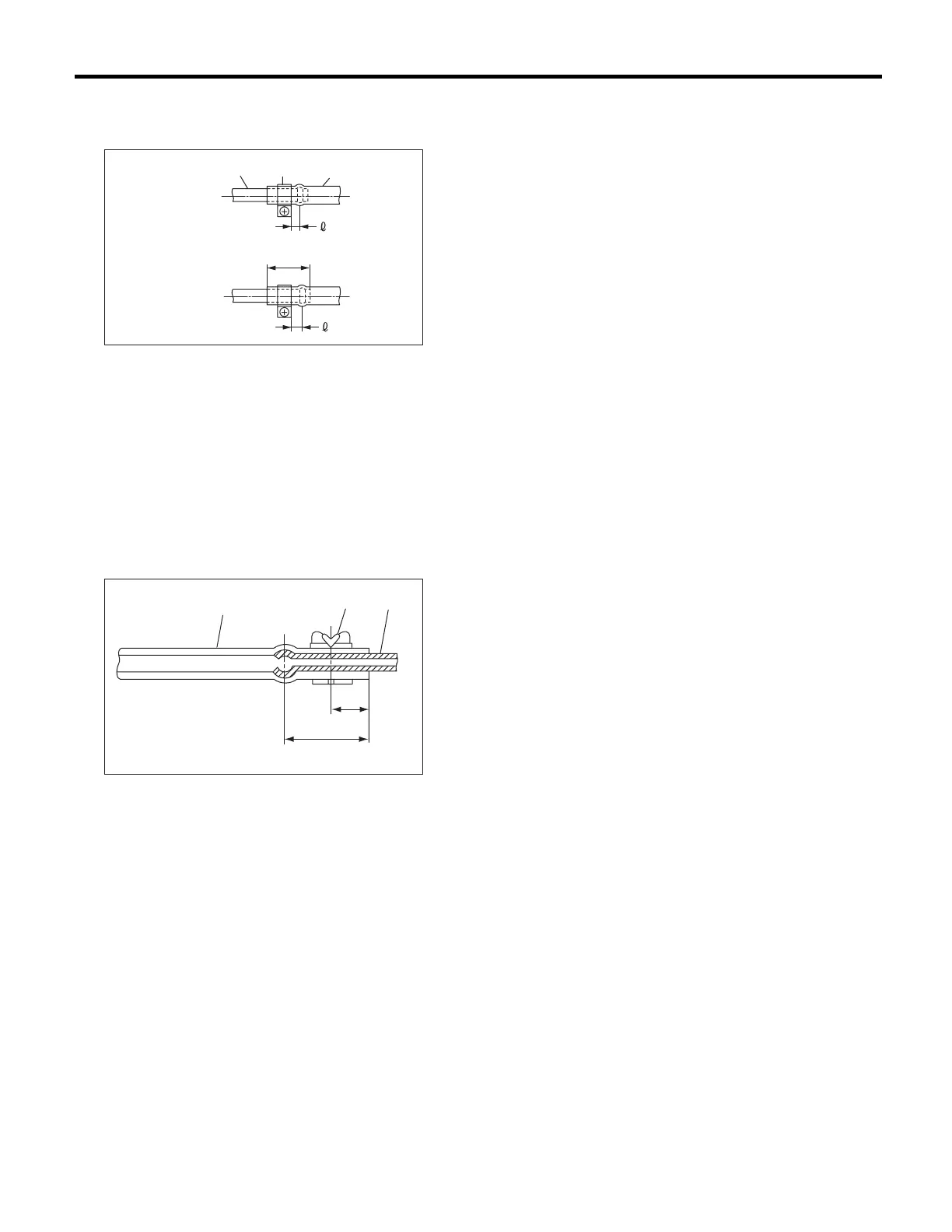

(1) Fitting
(2) Clamp
(3) Hose
(1) Hose
(2) Clip
(3) Pipe
FU-00128
(1) (2)
(3)
L
Type A
Type B
FU-00129
(1)
(2)
L/2
L
(3)
To Next Page
