Contour Cutting 5-5
NOTE
Most dedicated sign-making software will provide some easier ways to do
all this. Please contact your dealer.
• Make multiple copies if necessary (of both the design and the contour):
5.4. PLACING THE CROSS-MARKS

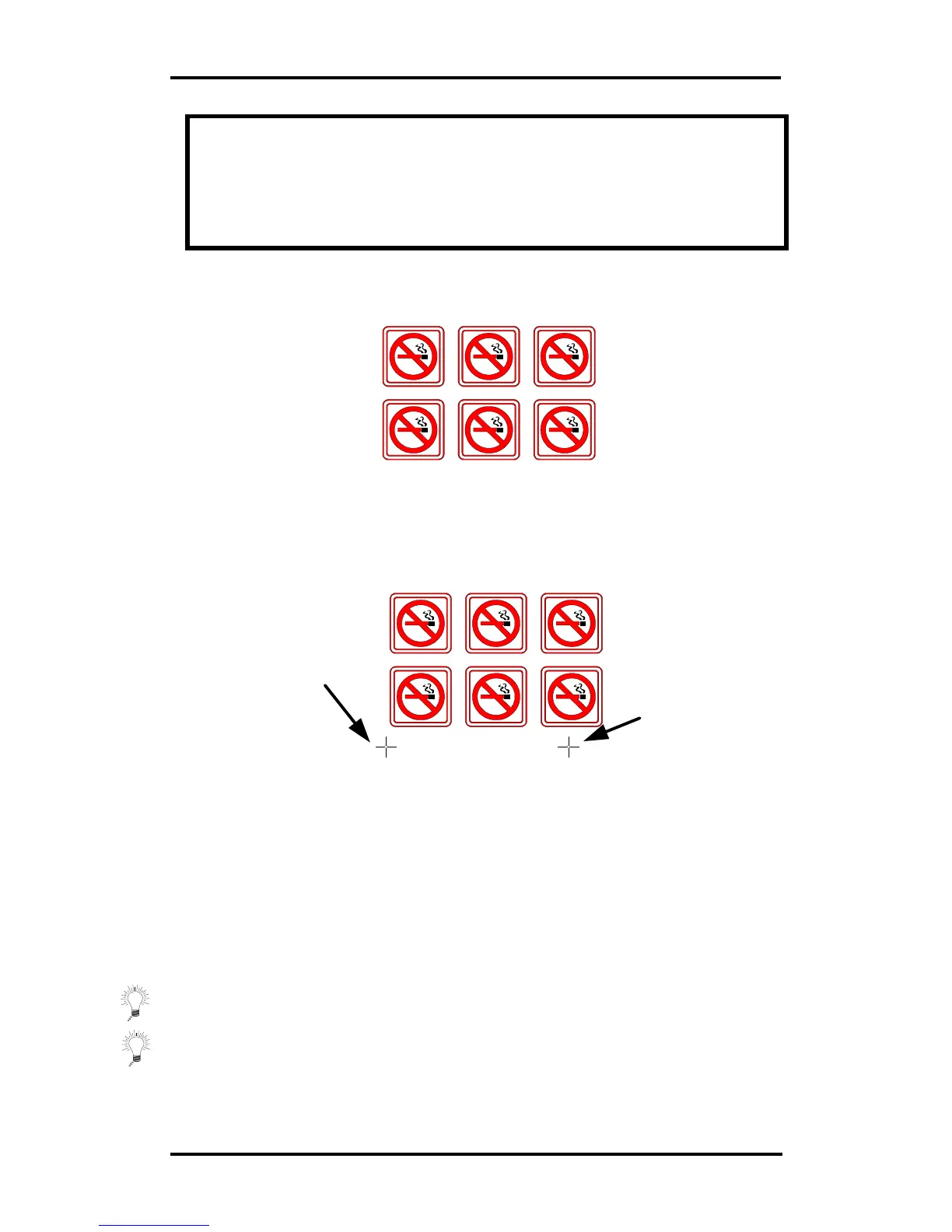

• Place two cross-marks indicating the X-axis.
♦ Make sure that the origin cross-mark is situated completely at the
left side and below all the contours that will be cut.
♦ Make sure that the two cross-marks are situated exactly at the
same height.
♦ The cross-marks may be of any type.
♦ The exact distance between the two points that are indicated
by these cross-marks must be known (only when using the XY-
adjustment method). Do not measure these distances on the
print out but measure them in the software!
⇒ Place the markers as far as possible from each other for maximum
accuracy.
⇒ Place the cross-marks on a separate layer for easier handling.
Origin cross-mark
X-Axis point
