User Manual 4 Mechanical Mounting

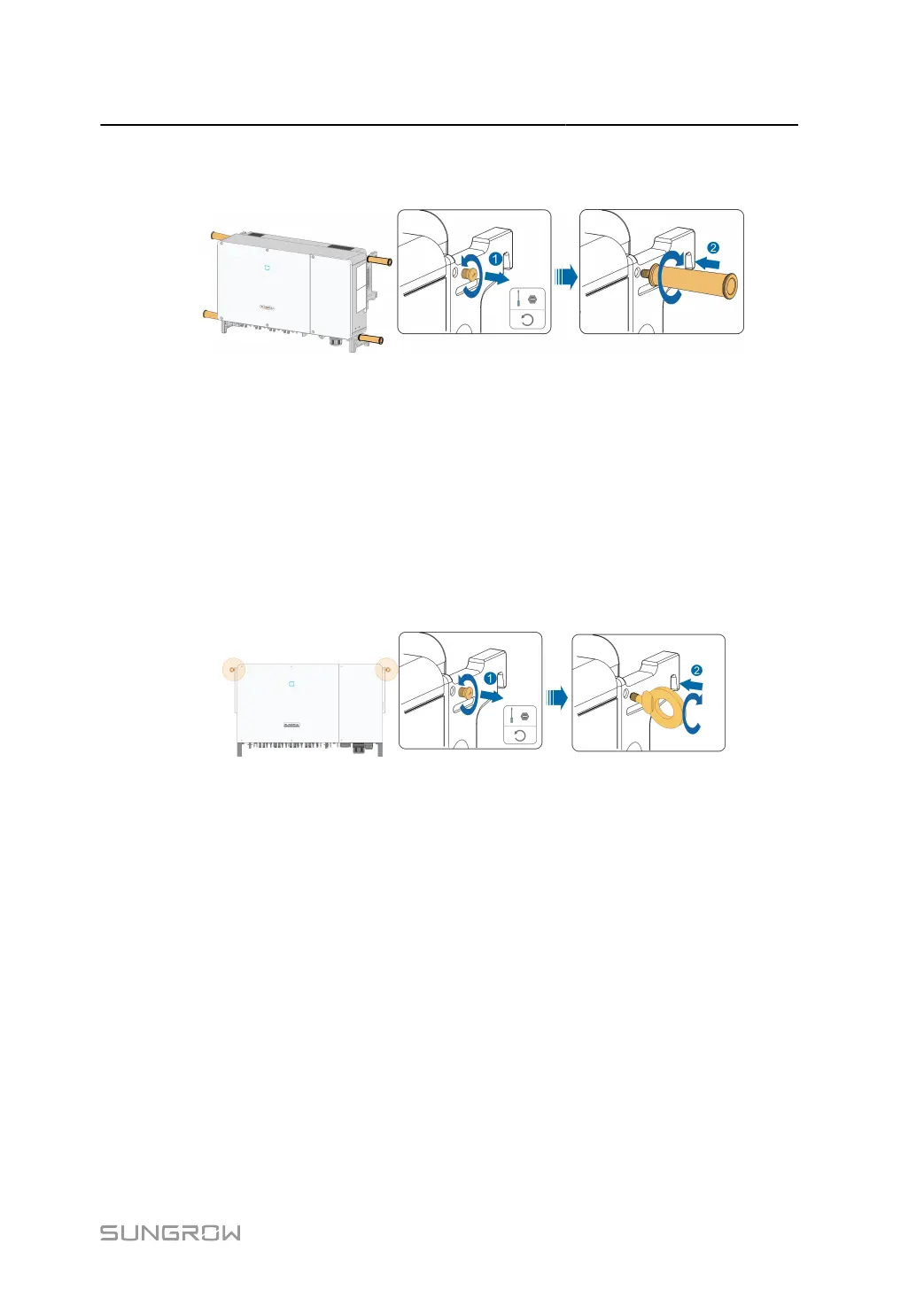

step 1 Release the sealing screws on the mounting ears with a flat-head screwdriver and store them
properly. Anchor the four supplied screw-in handles to the mounting ears and base of the inverter.
step 2 Lift and move the inverter to the destination by using the side and bottom handles as well as the
four installed handles.
step 3 Remove the screw-in handles and reassemble the sealing screws released in Step 1.
- - End
4.4.2 Hoisting Transport
step 1 Release the sealing screws on the mounting lugs and store them properly. Anchor two M12 thread
lifting rings to the lugs of the inverter.
step 2 Lead the sling through the two lifting rings and fasten the tie-down strap.
step 3
Hoist the inverter, and stop to check for safety when the inverter is 100mm above the ground.
Continue hoisting the device to the destination after ensuring the safety.
