User Manual 4 Mechanical Mounting

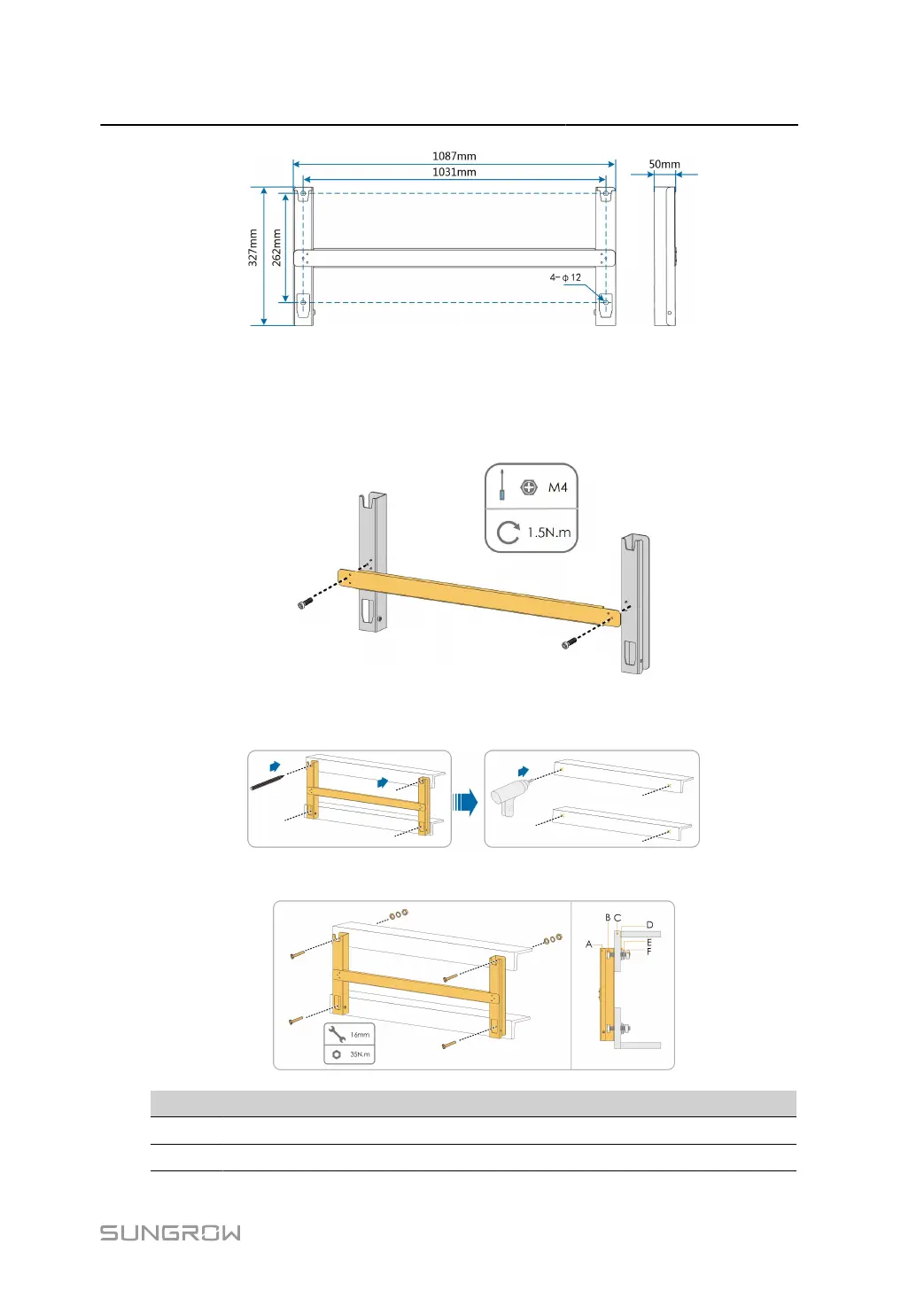

figure 4-1 Dimensions of Mounting-bracket
4.5.1 PV Bracket-Mounted Installation
step 1 Assemble the mounting-bracket.
step 2 Level the assembled mounting-bracket by using the level, and mark the positions for drilling holes
on the PV bracket. Drill the holes by using a hammer drill.
step 3
Secure the mounting-bracket with bolts.
No. Components Description
A Mounting-bracket –
B Full threaded bolt M10*45
27
