User Manual 5 Electrical Connection

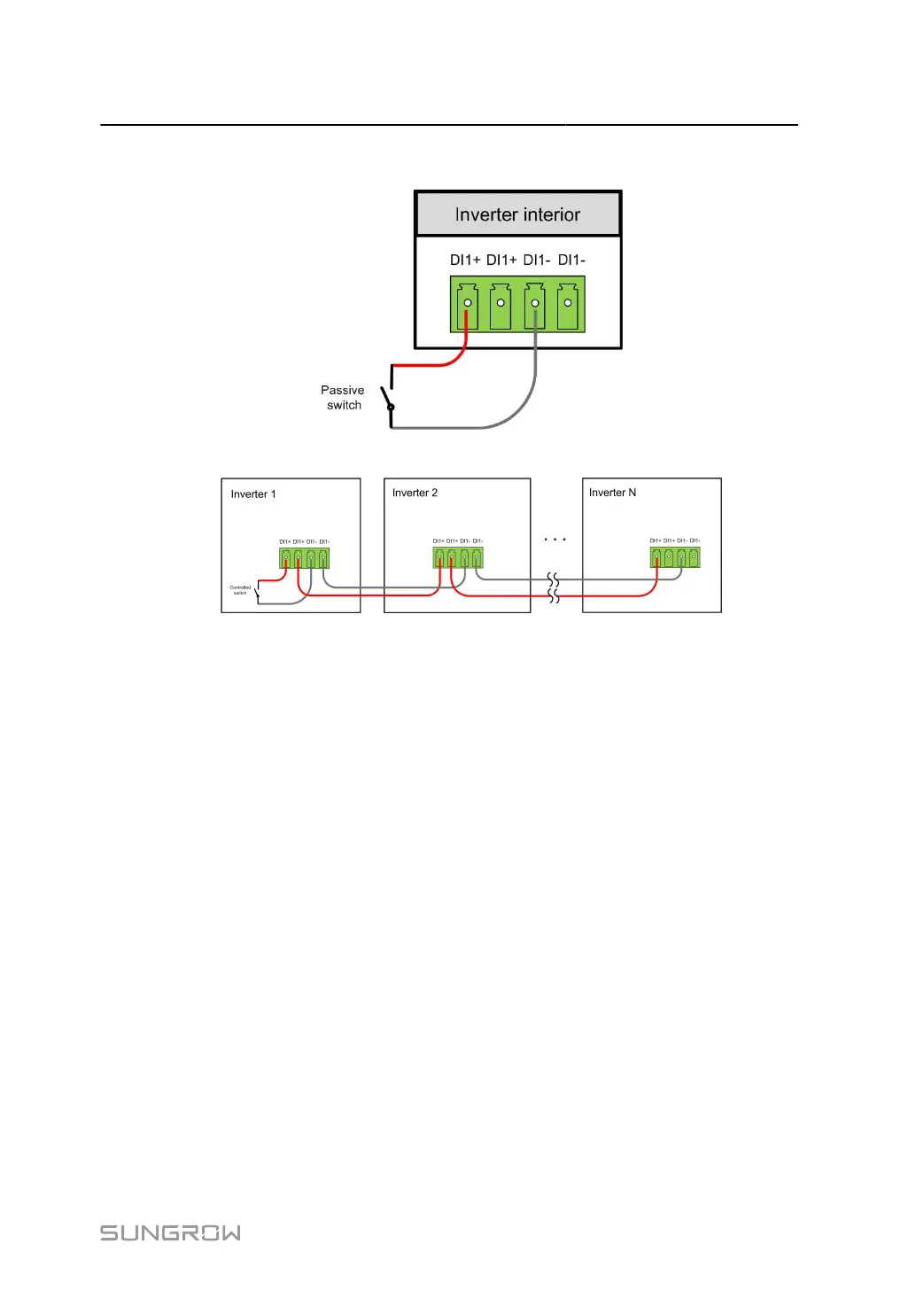

The following figure shows the typical application of local stop dry contact.
figure 5-10 Local stop contact
figure 5-11 Daisy chain topology
When wiring DI dry contacts, ensure that the maximum wiring distance meet the requirements
in 10.2 Wring Distance of DI Dry Contact.
5.10.2 Wiring Procedure
Refer to the wiring of terminal block described in chapter5.9.3 Connection Procedure(Termi
nal Block) to implement fault output, emergency shutdown. For emergency shutdown(passive
valid), enable the function on iSolarCloud, refer to 7.8.2 Operation Parameters.
5.11 DRM
Connection（For
Countries “AU” and
“NZ”）
5.11.1 DRM Function
The inverter supports the demand response modes as specified in the standard AS/NZS 4777.
The inverter has integrated a terminal for connecting to a DRED. After the connection, the
method of asserting DRMs as specified in the follow table.
67
