28

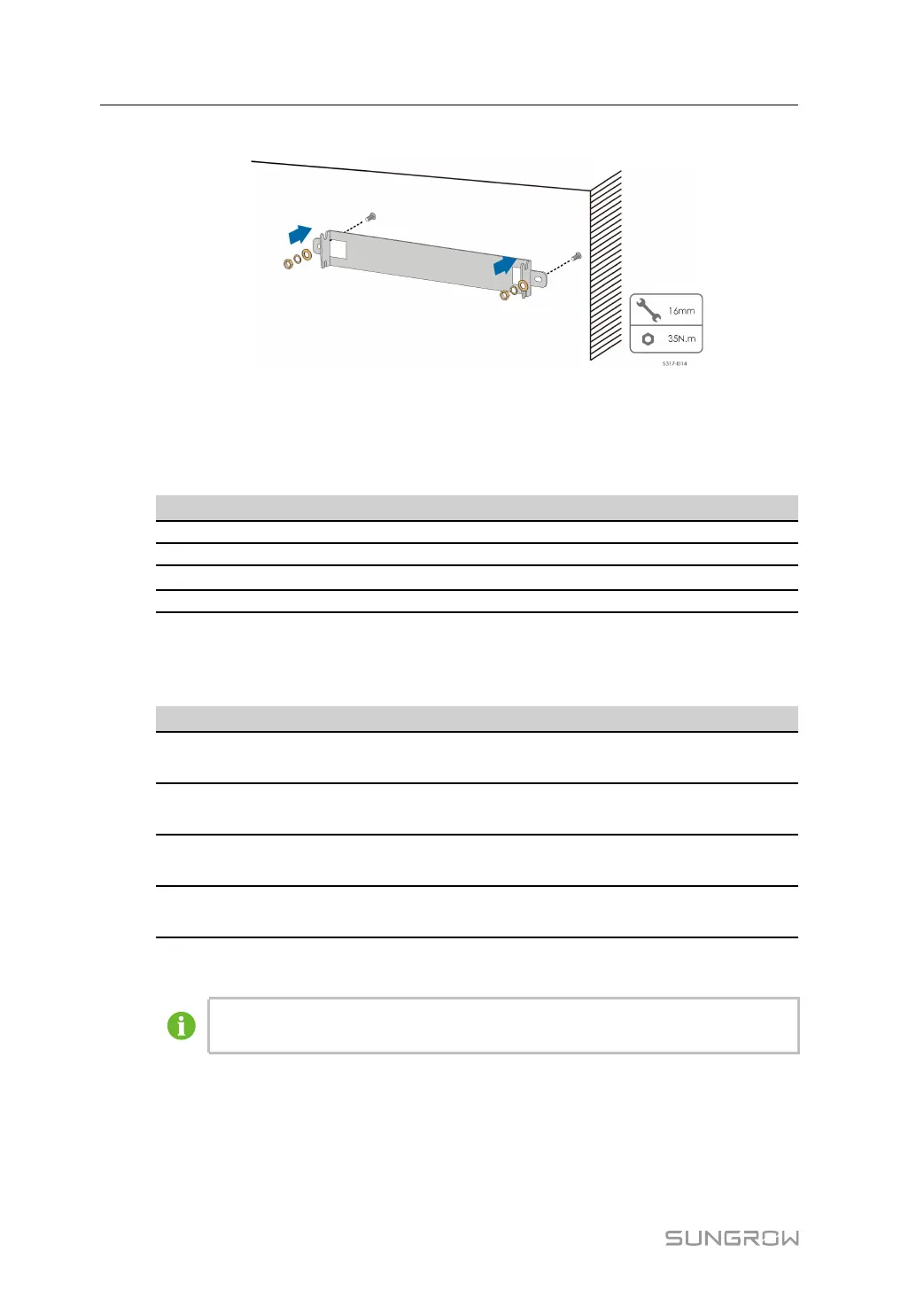

Step 3 Secure the mounting-bracket with expansion bolts.
- - End
4.5.3 Pole Installation
Tool preparation
Name Specification
Marker
—
Level
-
Hammer drill* Bit: φ12
Wrench Inner diameter: 16mm
*Check if tools of other specifications are needed according to the bolts of the matching
clamps.
Material preparation
Name Quantity Specification Source
Bolt
assembly
2 M10 Included in the delivery scope
Bolt
assembly
4 M10 Not included in the delivery
scope
Steel u-
channel
2
-
Not included in the delivery
scope
Clamp 2 According to the
pole specification
Not included in the delivery
scope
Step 1 Erect and stabilize the pole at the installation site.
Please skip this step if the inverter is to be installed on a concrete pole, PV brack-
et, etc. through pole-mounting.
4 Mechanical Mounting User Manual
To Next Page
