56

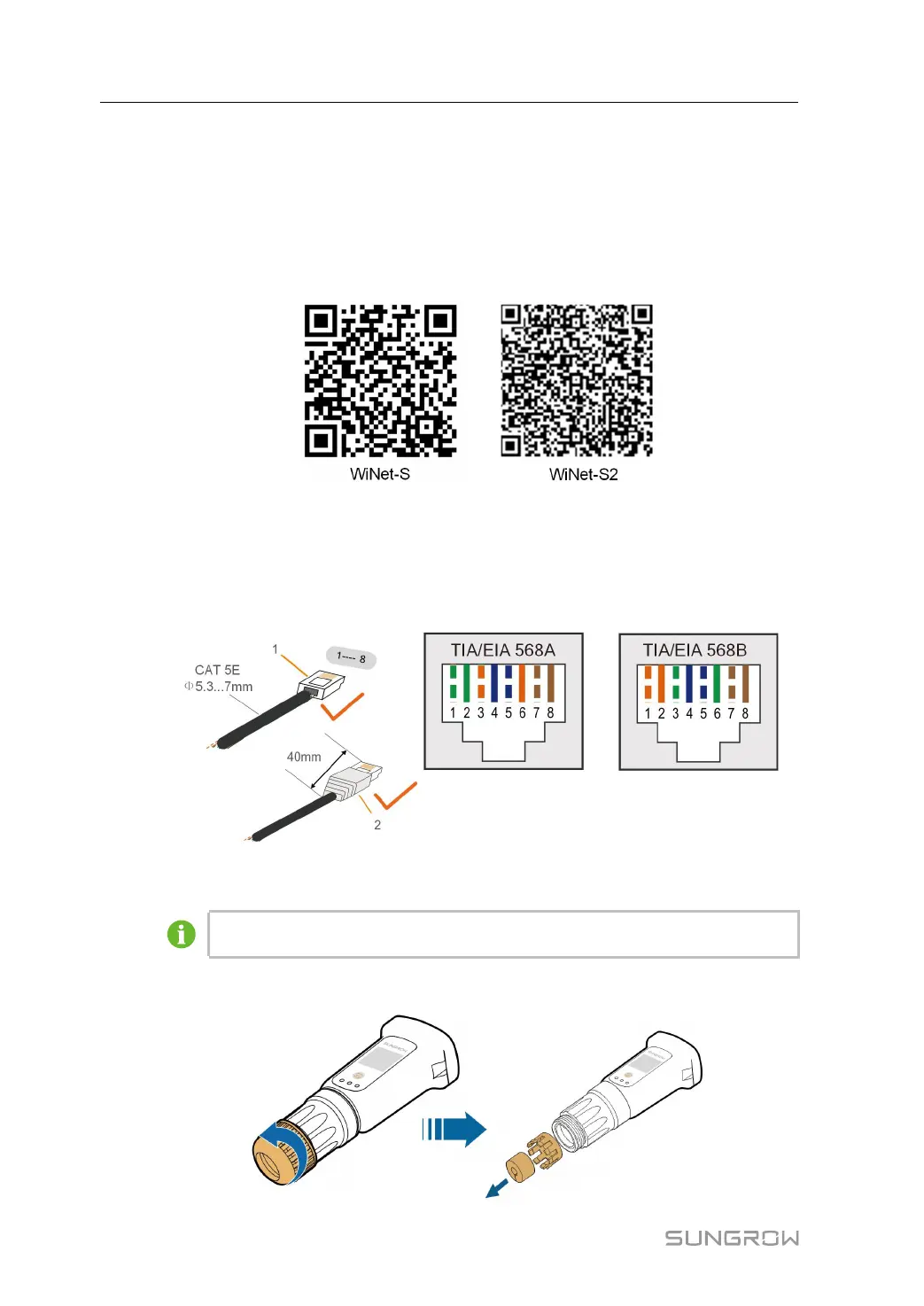

5.8.2 WiNet-S/WiNet-S2 Connection (optional)
The WiNet-S / WiNet-S2 module supports Ethernet communication and WLAN
communication. It is not recommended to use both communication methods at the same
time.
For details, see the quick guide for the WiNet-S/WiNet-S2 module. Scan the following QR
code for the quick guide.
5.8.2.1 Ethernet Communication
Step 1 (Optional) Strip the insulation layer of the communication cable with an Ethernet wire
stripper, and lead the corresponding signal cables out. Insert the stripped communication
cable into the RJ45 plug in the correct order, and crimp it with a crimper.
1: RJ45 plug 2：Protective cap
Skip this step if a standard network cable with RJ45 plug is prepared.
Step 2 Unscrew the swivel nut from the communication module and take out the inner sealing ring.
5 Electrical Connection User Manual
