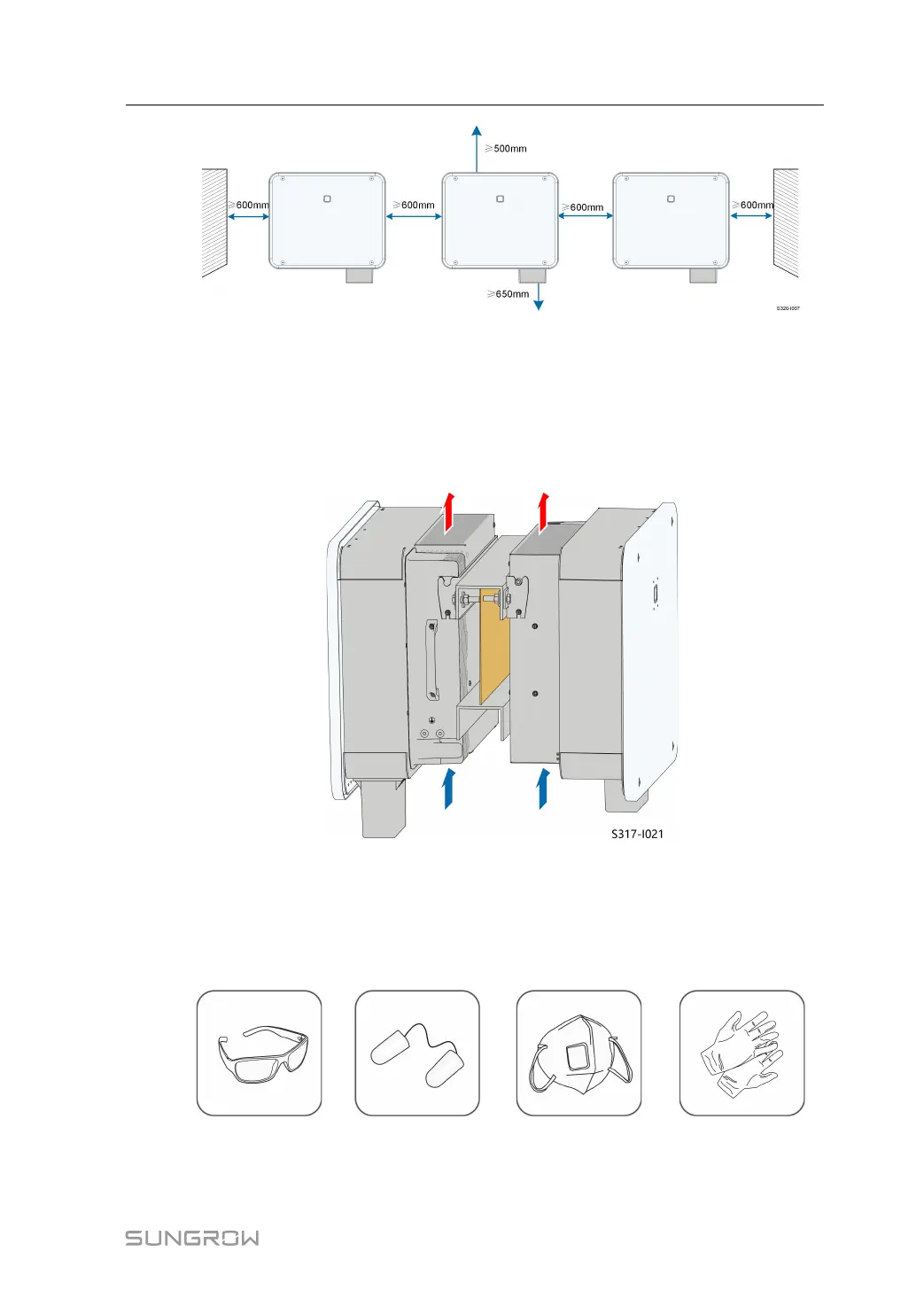

Back-to-Back Installation
When installing inverters back-to-back, the distance between every two inverters should be
at least 200 mm.
Add a baffle between the two inverters to form a heat dissipation channel. The baffle plate
should be placed horizontally between two inverters and should not block the air outlet of
inverters.
4.3 Installation Tools
Installation tools include but are not limited to the following recommended ones. If necessary,
use other auxiliary tools on site.
Goggles Earplugs Dust mask Safety gloves
User Manual 4 Mechanical Mounting
