21
tilting backwards installation requirements

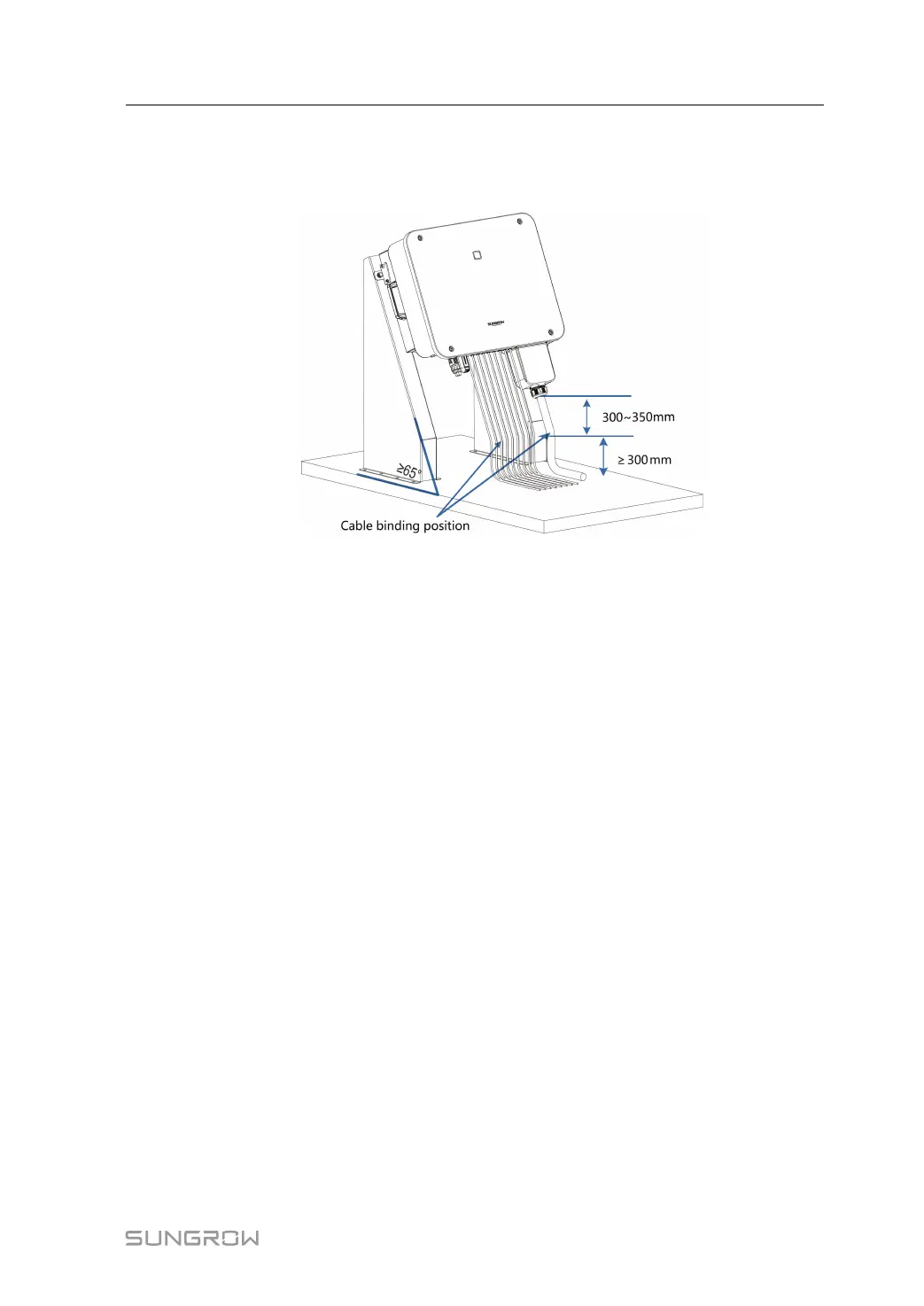

In case the installation site is a level surface, mount the inverter to the horizontal-mounting
bracket to meet the mounting angle requirements, as shown in the figure below.
Take the following items into account when designing the bracket scheme:
• Consider onsite climate conditions and take anti-snow and anti-rain measures if
necessary.
• Ensure that the waterproof connectors are at least 300mm higher than the ground
surface.
• Bind the cables at the positions 300~350mm away from the DC connector, AC water-
proof terminal, and communication waterproof terminal.
• The various waterproof terminals should be tightened with the torque specified in this
manual to ensure that they are securely sealed.
4.2.4 Clearance Requirements
Reserve enough clearance around the inverter to ensure sufficient space for heat
dissipation.
User Manual 4 Mechanical Mounting
