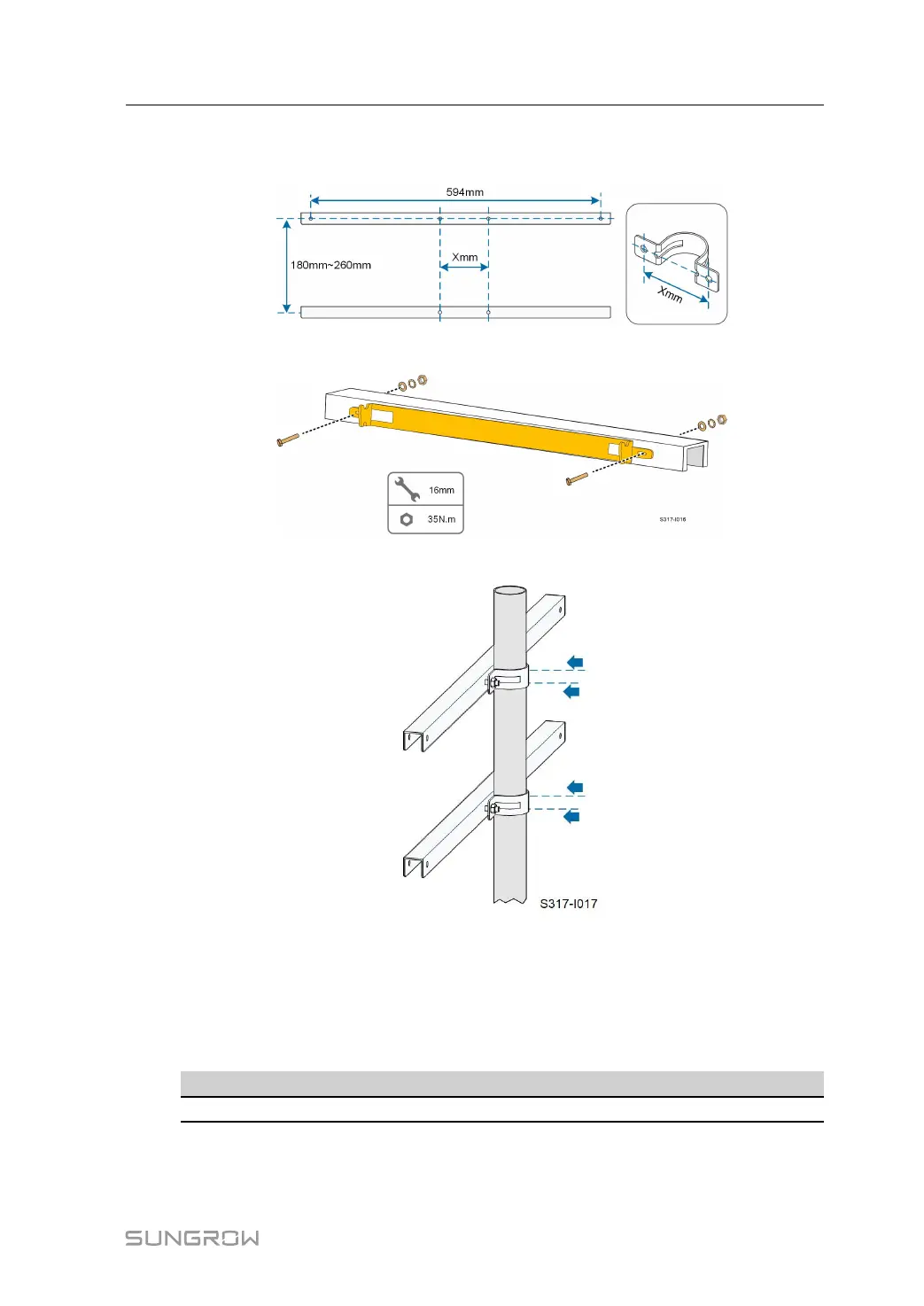

Step 2 Mark and drill holes in steel u-channels according to the dimensions shown in the figure be-
low. Two steel u-channels should be spaced 180 mm - 260 mm apart.
Step 3 Secure the mounting-bracket to the steel u-channels with bolts.
Step 4 Secure the steel u-channels to the pole with bolts and clamps.
- - End
4.6 Installing the Inverter
Tool preparation
Name Specification
Phillips screwdriver M5
Material preparation
User Manual 4 Mechanical Mounting
