22

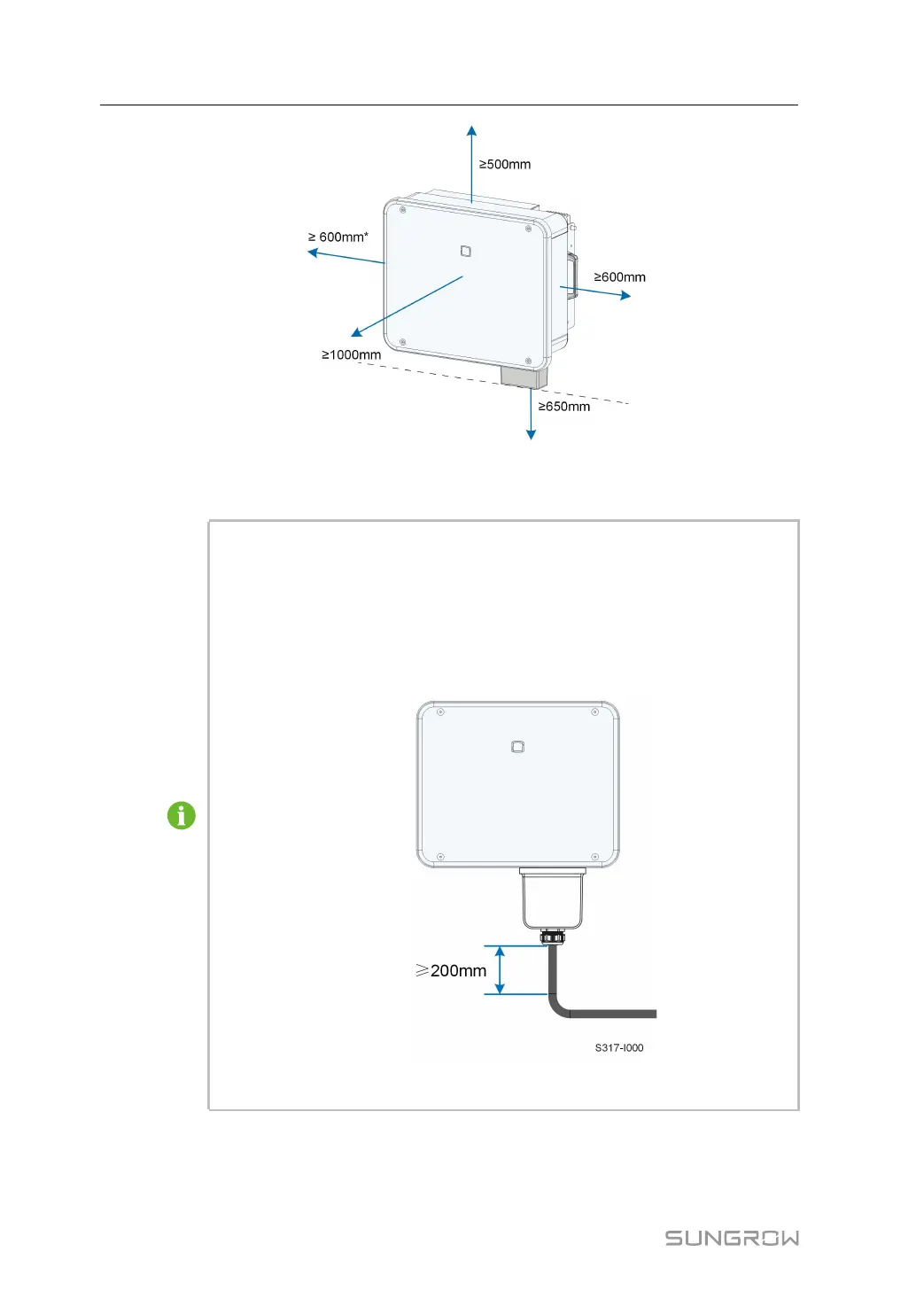

*When this distance is less than the distance shown, lift the inverter off the stand or wall be-
fore maintaining fans.
The distance from the bottom of the inverter to the ground is determined according
to the bending radius of the selected AC cable and the installation environment,
and the following requirements should be met：
• The distance from the bottom of the inverter to the ground should be ≥ 650mm.
• The AC cable should be connected to the AC terminal vertically, and the length
of the vertical cable should be ≥ 200mm.
Contact the AC cable manufacturer for any questions.
In case of multiple inverters, reserve specific clearance between the inverters.
4 Mechanical Mounting User Manual
