27
Always separate the solar generator
side first by quickly opening the DC load
break switch and then the grid connec
-
tion by switching off the corresponding
mains fuse.
Survey
The solar generator can be directly con
-
nected to the solar inverter with two
strings. The connection is made via the
shockproof Tyco Solarlok plug-in connec
-
tion system accessible from outside.
The solar inverter has two electrically
connected DC inputs, which are arranged
in pairs on the underside.
The solar generator strings must be iden
-
tically dimensioned and comply with the
specifications of the solar inverter.
No external DC load break switch is
required. A DC load break switch as re
-
quired in accordance with DIN VDE 0100-
712 is integrated in the solar inverter.
+–
+–

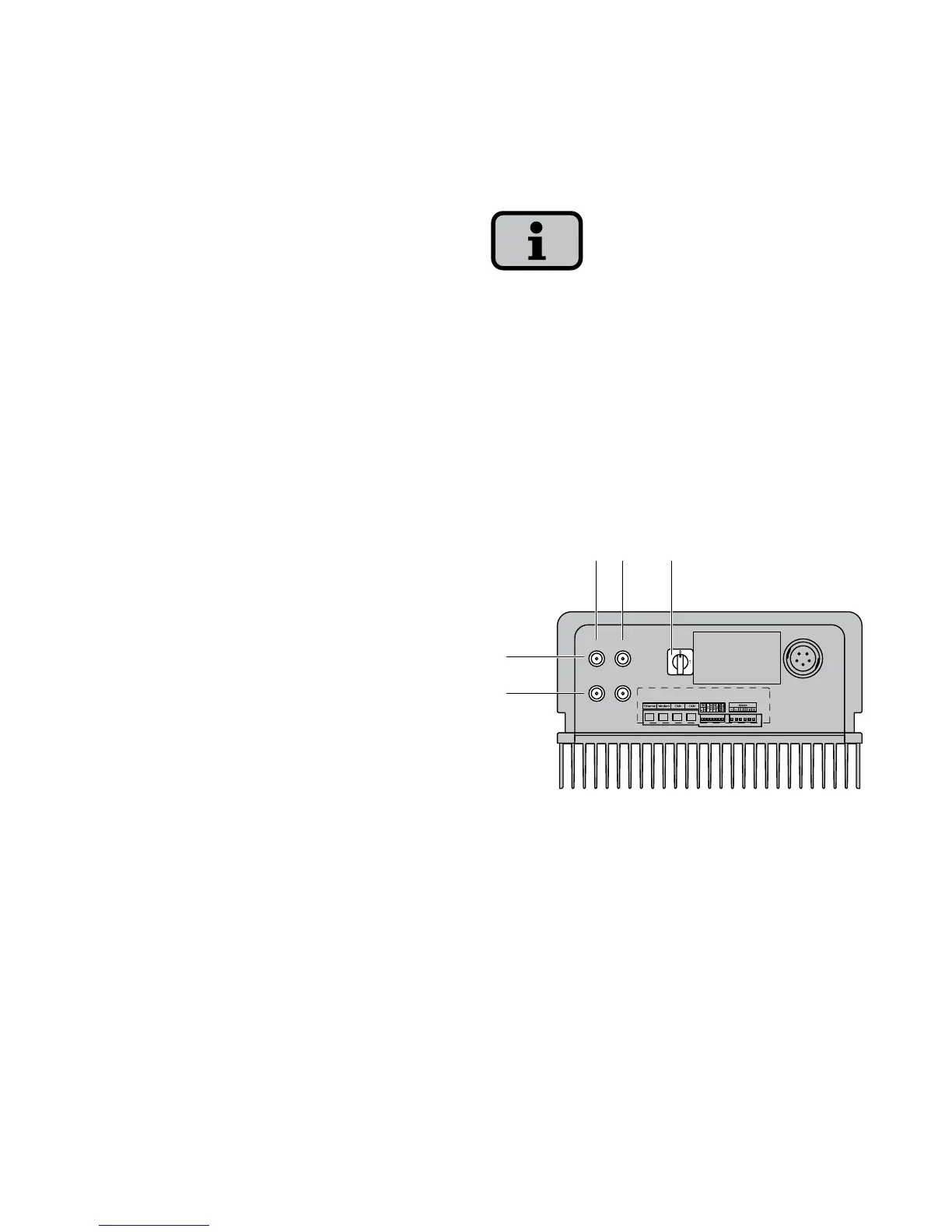

1
2
3– +
1 Connection of solar generator string 1
2 Connection of solar generator string 2
3 DC load break switch
