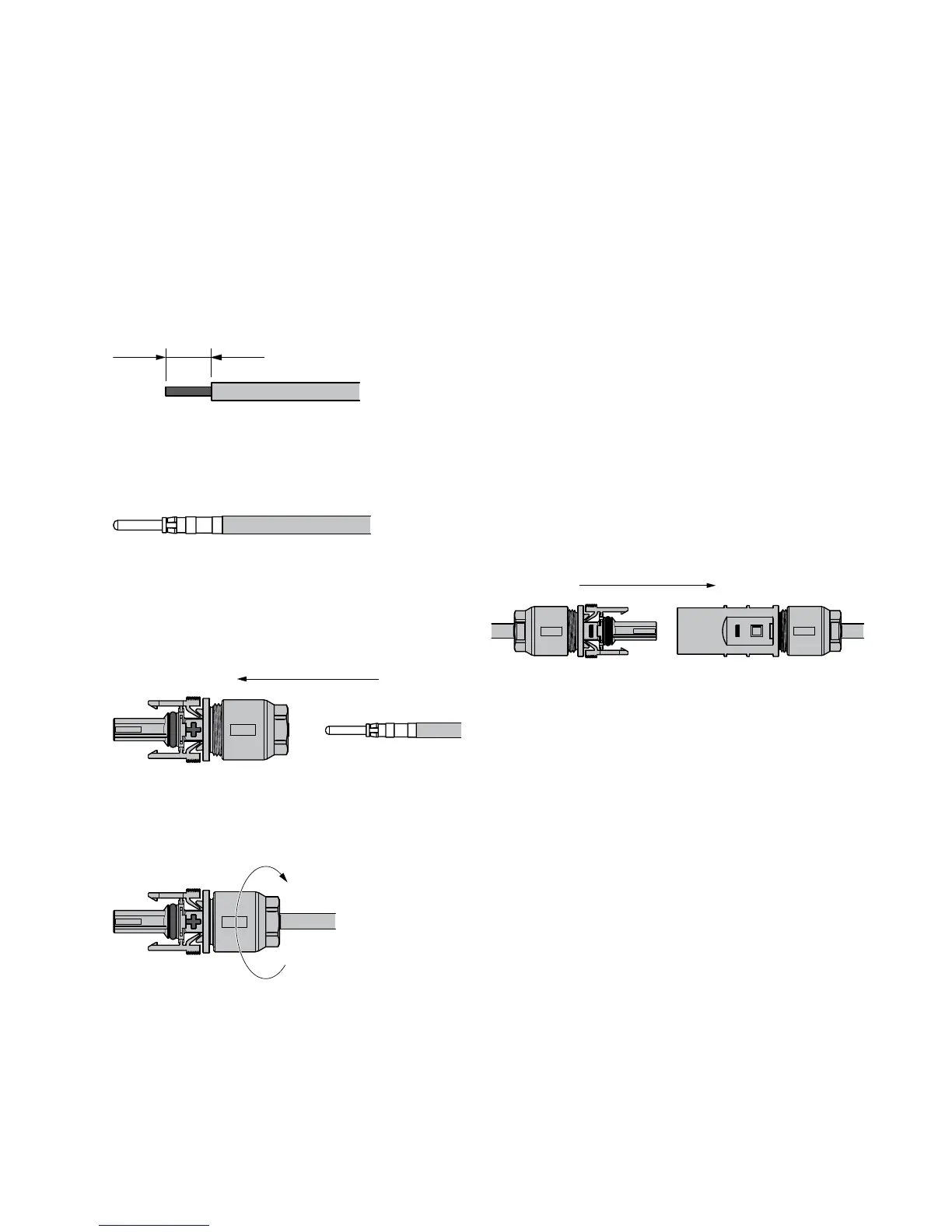

The following sequence must be ob-
served during assembly:
1. Stripping the voltage-free line.
8
2. Crimping on the circular contact with
the Tyco Solarlok hand crimping pliers.
3. Sliding the cable gland onto the line
and engaging the contact in the
connector housing.
4. Tightening the cable gland with
1.5 Nm.
Handling
The positively/negatively coded connec
-
tors are marked with polarity symbols
and a coloured ring (blue = negative,
red = positive). They are equipped with
coding ribs for assignment, which ensures
that only connectors of the same polarity
can be connected to each other.
Connecting socket and plug. The system
is only correctly locked if the locking
hooks are recessed flush in the mating
piece.
