Sunways AT 5000 - Page 34

34
+–
+–
1
2

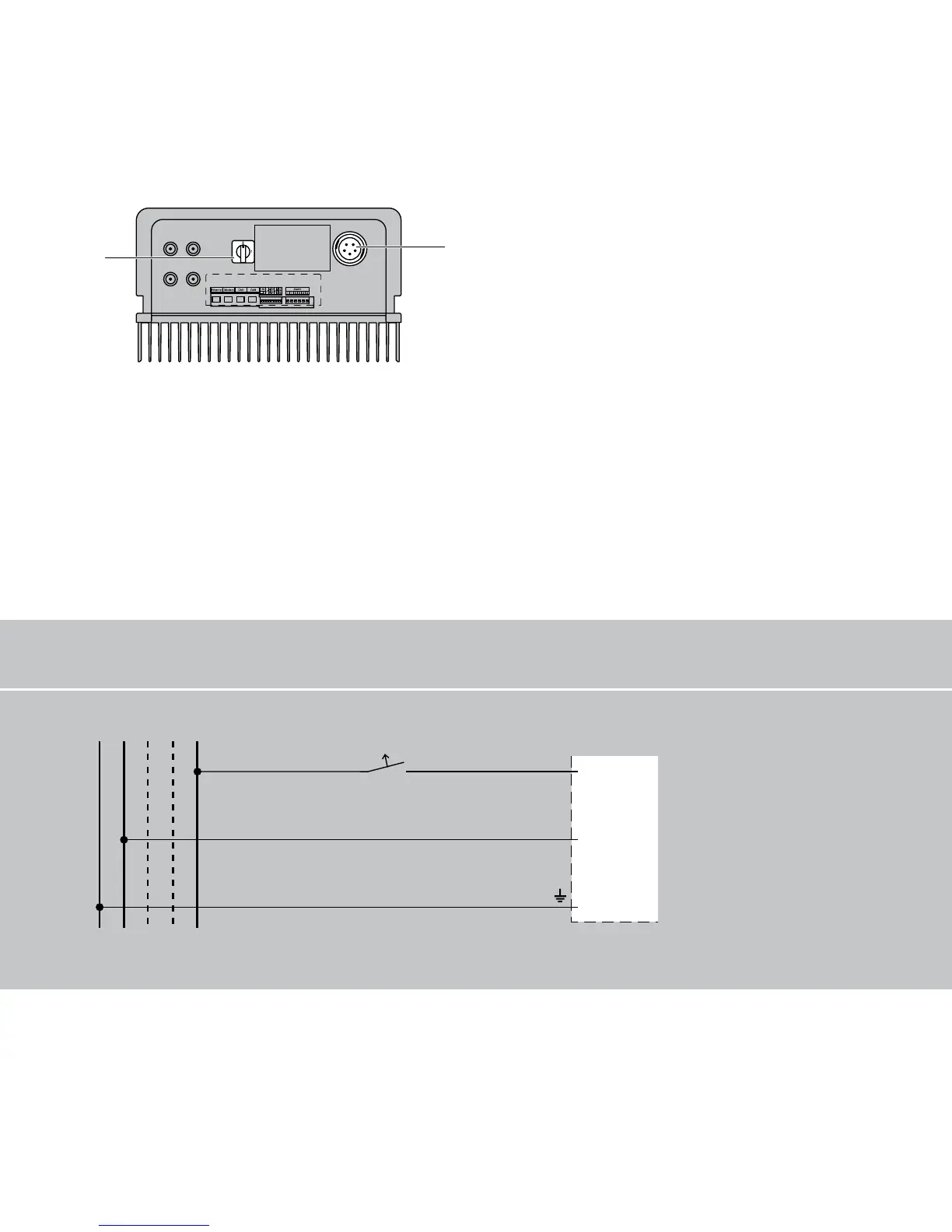

1 DC load break switch
2 AC connection
Terminal diagram
PE N L3 L2 L1
1
2
INVERTER
Mains fuse
A corresponding circuit breaker is recom
-
mended as a line protection element in
the grid feed direction:
AT 2700: 3 x 16 A
AT 3600: 3 x 25 A
AT 4500: 3 x 25 A
AT 5000: 3 x 32 A
with slow-blow characteristic C
A three-pin circuit breaker in individual
fuses can be used.
3-phase AC grid
