4-108 DISASSEMBLY AND ASSEMBLY

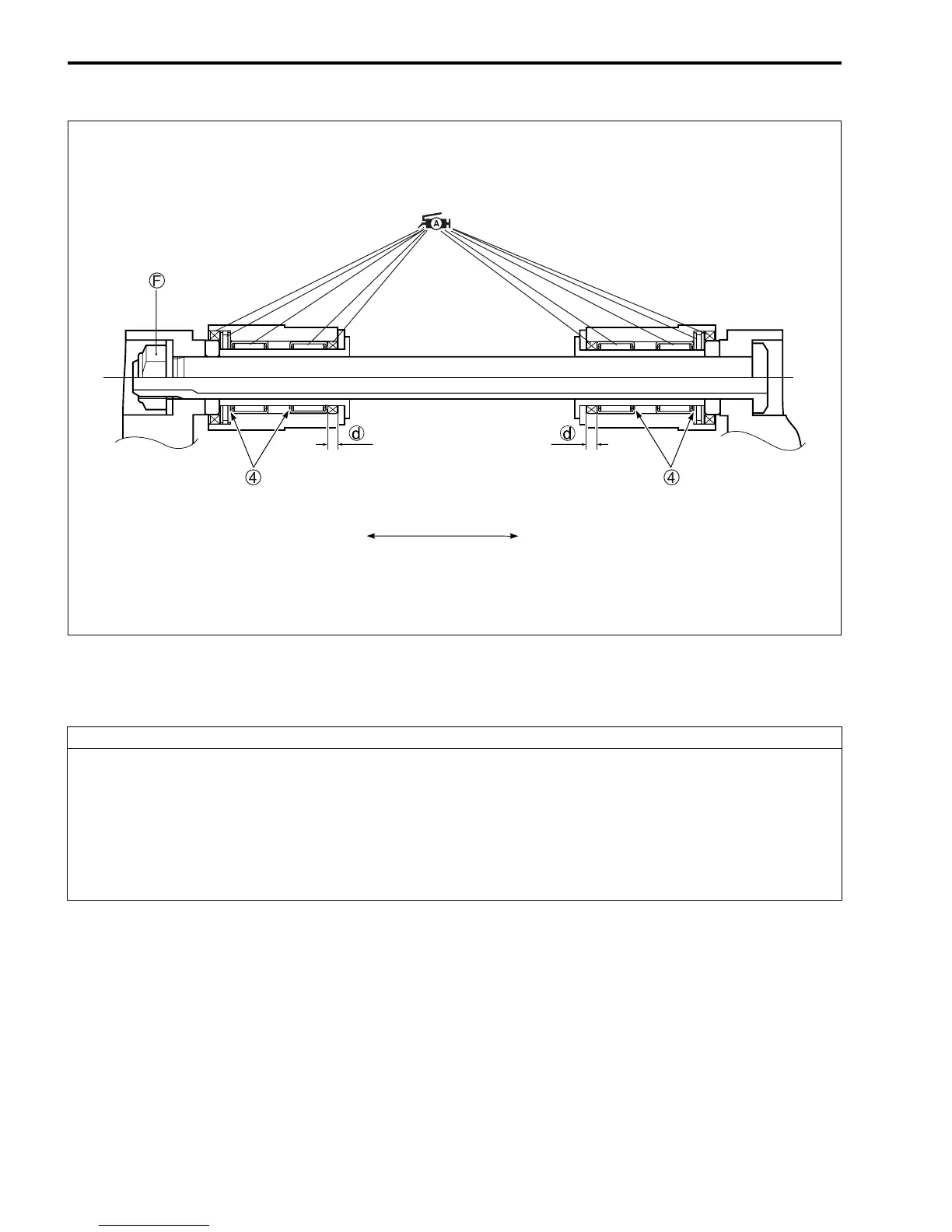

4: Stamped mark d: 4.0 mm (0.16 in)
Tightening torque:
F: 70 N·m (7.0 kgf-m, 50.5 lbf-ft)
Left Right
NOTICE
Improperly reassembled rear suspension linkage bolts can interfere with suspension move-
ment and damage the rear suspension linkage.
Make sure that the rear shock absorber rebound damping adjuster on the bottom bracket of the
rear shock absorber is located to the right side. Insert the rear suspension linkage bolt 3 from
the left side. Make sure that the nut B is in the recess of the rear shock absorber bottom
bracket.
