4-2 DISASSEMBLY AND ASSEMBLY
ENGINE REMOVAL AND INSTALLATION
REMOVAL

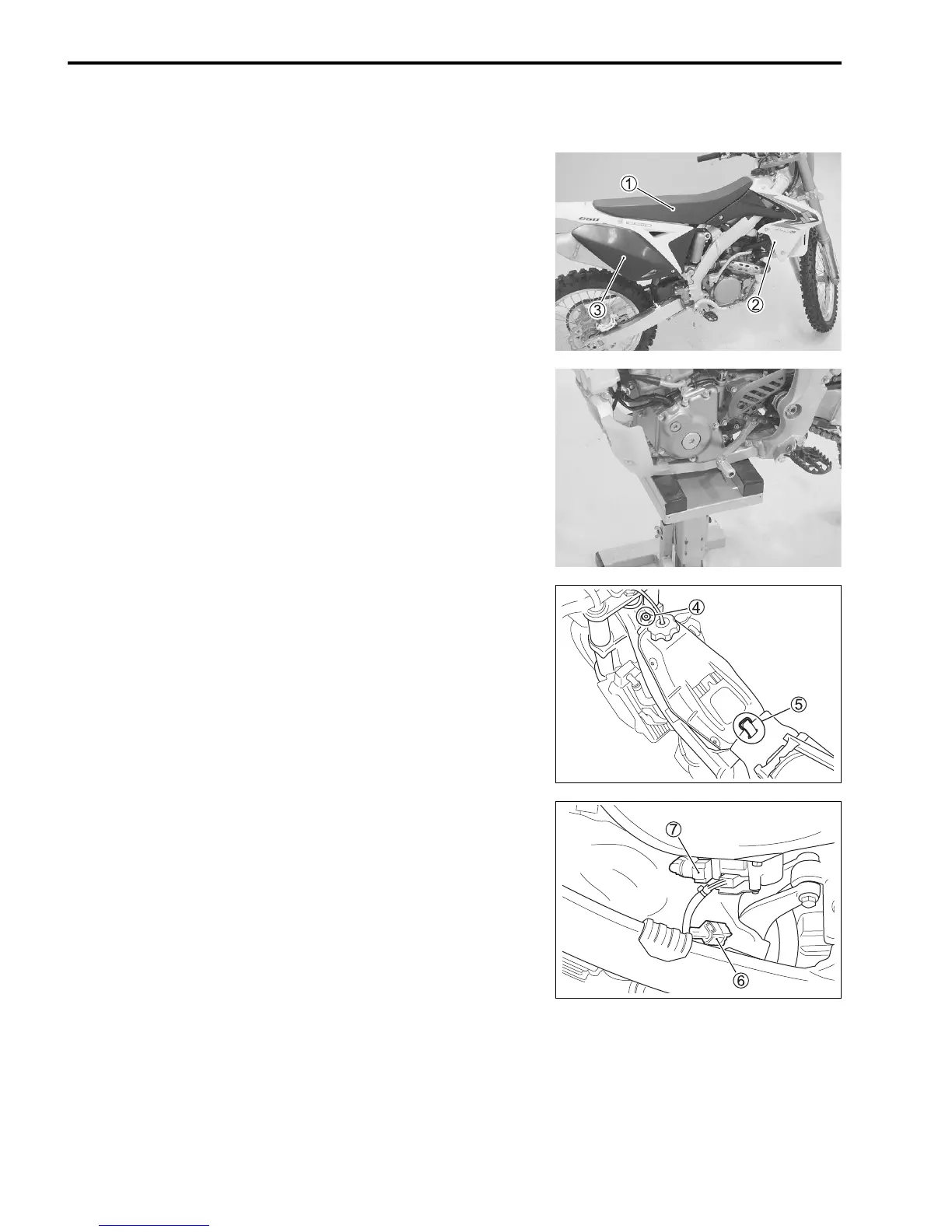

• Drain engine oil. (2-14)
• Drain engine coolant. (4-49)
• Remove the seat 1.
• Remove the radiator covers 2, left and right.
• Remove the right frame cover 3.
• Place the jack under the frame to support the motorcycle.
• Remove the fuel tank bolt 4 and rubber band 5.
• Lift and hold the fuel tank.
• Disconnect the fuel pump coupler 6.
• Place a rag under the fuel hose 7 and disconnect the fuel
hose 7 from the fuel pump.
