AMI Sample Sequencer
Product Description

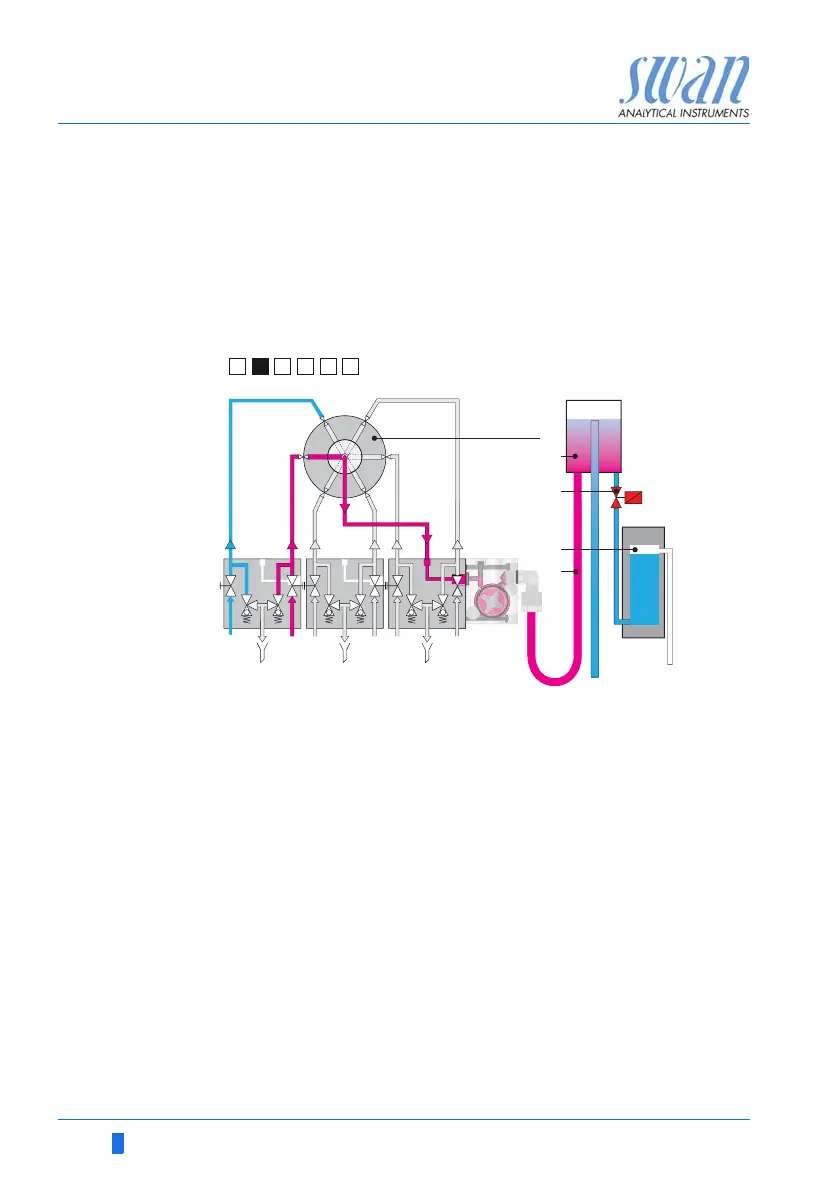

Step 2 The solenoid valve [C] closes:
 at the same time the 6-way valve [A] switches to sample stream
2, a new measuring cycle starts.
 the sample of sample stream 1 remains in the photometer where
reagents are added and a measurement is performed.
 During the measuring of sample stream 1, the tube [E] and the
constant head [B] are flushed with sample stream 2.
