AMI Sample Sequencer
Product Description
A-96.250.661 / 120418 13
Example with two sample streams:
NOTICE:
• The different squares, black with/without underline and white
with/without underline are displayed on the display of the AMI
Sample Sequencer, for better understanding they are
integrated in the illustrations below.
• The meaning of the different squares is explained in
chapter 5, Operation.

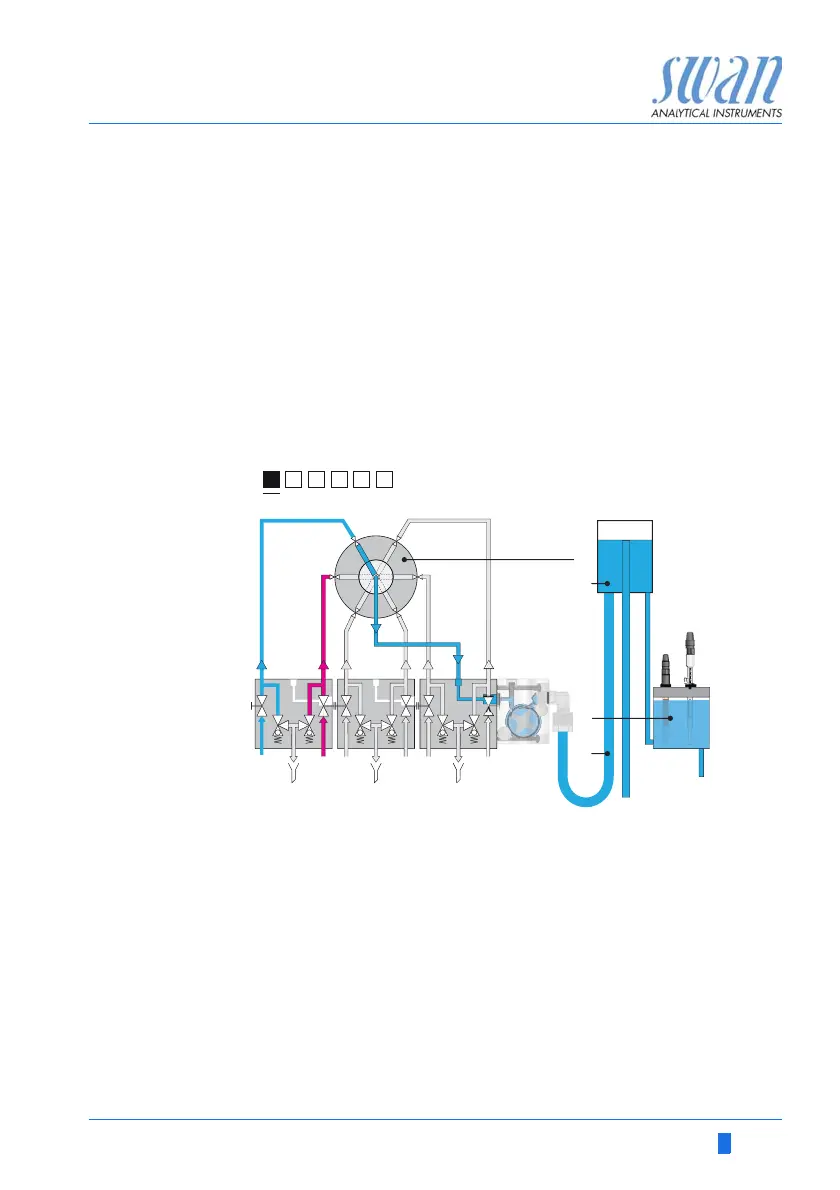

Step 1  The 6-way valve [A] is on position 1 and sample stream 1 [D]
flows via constant head [B] through the measuring cell [C] where
the sodium concentration is continuously measured.
