32 A-96.250.661 / 120418
AMI Sample Sequencer
Installation

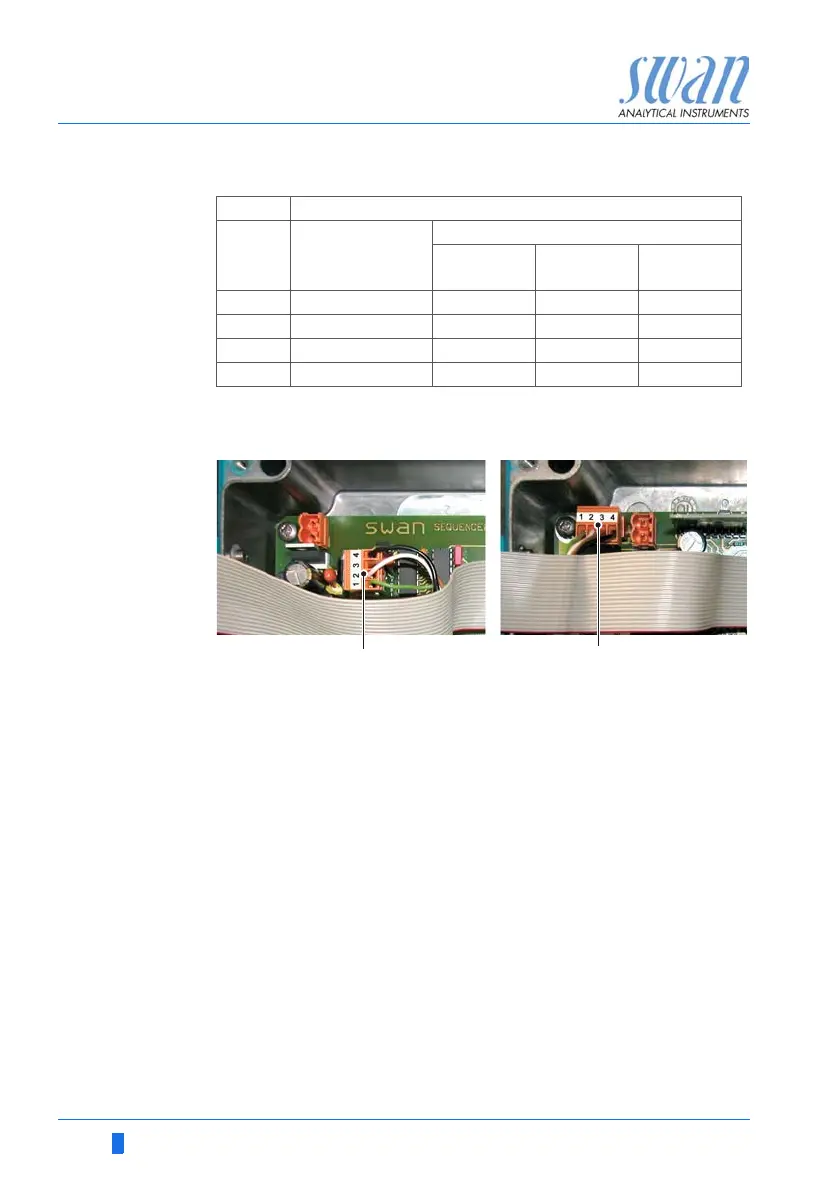

5 Insert the plugs into the sockets on the main boards according
the picture below.
AMI analyzer
with 2
nd
Sample Stream
Option
If an AMI analyzer is already equipped with a 2
nd
Sample Stream
option the 2
nd
Sample Stream option is deactivated if an AMI Sam-
ple Sequencer is connected to the AMI analyzer and the solenoid
valve is switched to the sample inlet 1.
NOTICE: Generally SWAN does not recommend to connect an
AMI Sample Sequencer to an AMI analyzer equipped with a
2
nd
Sample Stream option.
If it is not possible to remove the 2
nd
Sample Stream option for any
reasons, proceed according to Sample Connection, p. 30 steps
1 to 3 then:
Close the flow regulating valve of the sample inlet 2.
Connect the connecting tube [D] from the sample outlet [C] of the
AMI Sample Sequencer to the sample inlet 1 of the
2
nd
Sample Stream option.
Then continue to Sample Connection, p. 30 with step 5.
Terminal Number
Plug Plug AMI Analyzer
Wire
Color
AMI Sample
Sequencer
Main board
V2.3
Main board
V2.4
Main board
V2.5
green1 121
white 2 2 1 2
brown 3 3 3 3
black4 444
A Plug AMI Sample Sequencer B Plug AMI analyzer
