AMI Sample Sequencer
Installation
If Signal
Inputs = 1
If Signal Inputs = 1 is selected, 6 sample streams can be mea-
sured. 1 signal (measuring value) can be transmitted from the
transmitter of the AMI analyzer to the transmitter of the sample se-
quencer.
The signal outputs are connected to the terminals according the ta-
ble below.
If Signal
Inputs = 2
If Signal Inputs = 2 is selected, 3 sample streams can be mea-
sured. 2 signals (e.g. measuring value and temperature) can be
transmitted from the transmitter of the analyzer to the transmitter of
the sample sequencer.
The signal outputs are connected to the terminals according the fol-
lowing table:

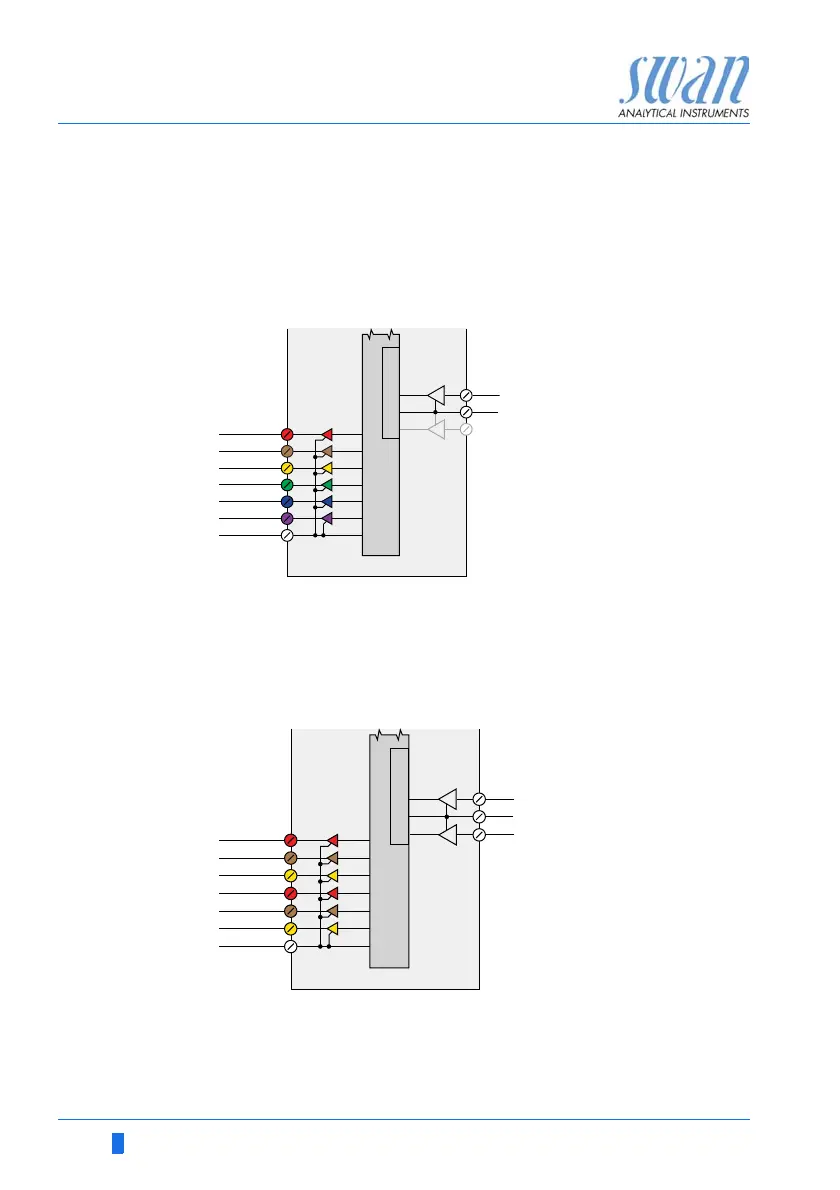

Channel Terminals for
Signal 1
CH 1 22/16
CH 2 21/16
CH 3 20/16
CH 4 19/16
CH 5 18/16
CH 6 17/16
CH1
SEQUENCER
A/D
SIG 1
IN
SIG 2
IN
CH2
CH3
CH4
CH5
CH6
RTN
22
21
20
19
18
17
16
34
32
31
Channel Terminals for Signal 1 Terminals for Signal 2
CH 1 22/16 19/16
CH 2 21/16 18/16
CH 3 20/16 17/16
CH1 22
34
32
31
21
20
19
18
17
16
SEQUENCER
A/D
SIG 1
IN
SIG 2
IN
CH2
CH3
CH1
CH2
CH3
RTN
