AMI Sample Sequencer
Installation
A-96.250.661 / 120418 39
Deactivate
channels
If signal inputs = 1:

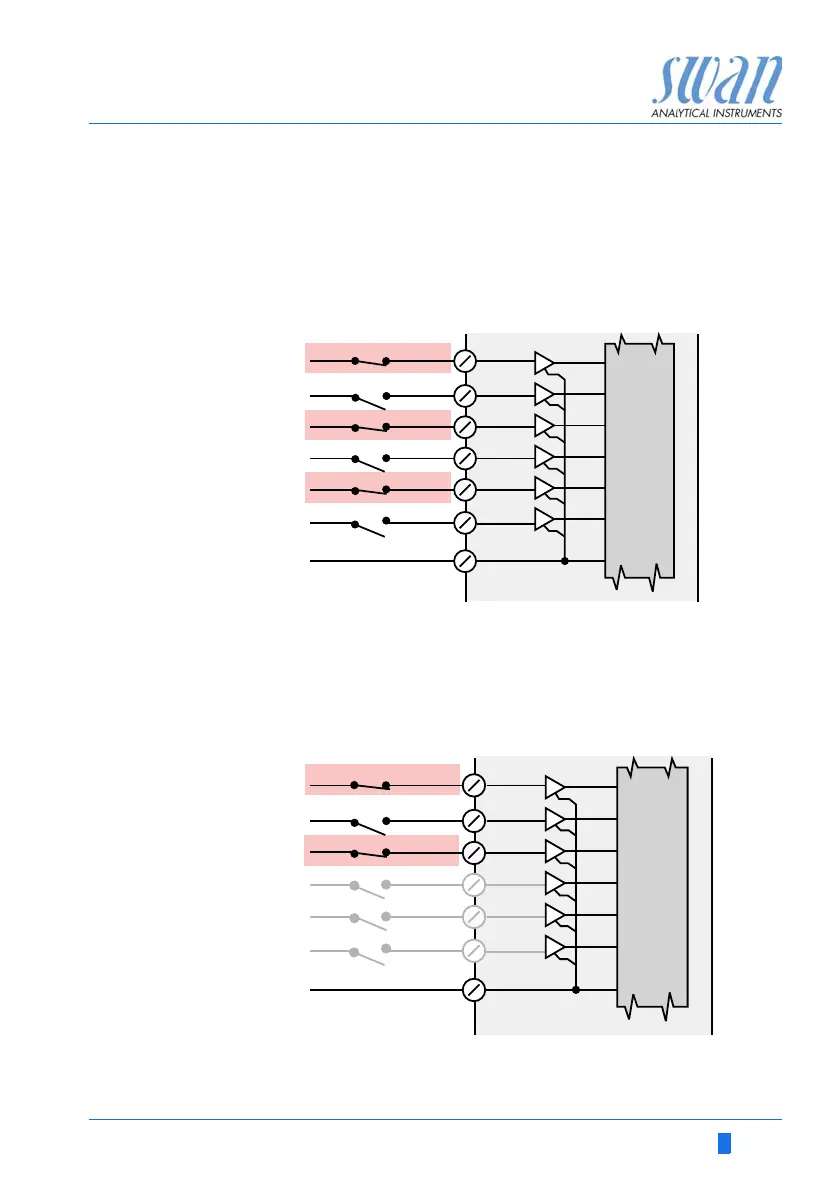

In the example below, the channels highlighted in red will not be
measured.
NOTICE: If all contacts are closed, the AMI analyzer remains in
stand by mode.
Deactivate
channels
If signal inputs = 2:
In the example below, the channel highlighted in red will not be
measured.
NOTICE: If all contacts are closed, the AMI analyzer remains in
stand by mode.
CH1
SEQUENCER
Processor
CH2
CH3
CH4
CH5
6 Inputs from PLC
1 mA sink, 5 V open
CH6
GND
9
10
11
12
13
14
15
CH1
SEQUENCER
Processor
CH2
CH3
CH4
CH5
6 Inputs from PLC
CH6
GND
9
10
11
12
13
14
15
1 mA sink, 5 V open
