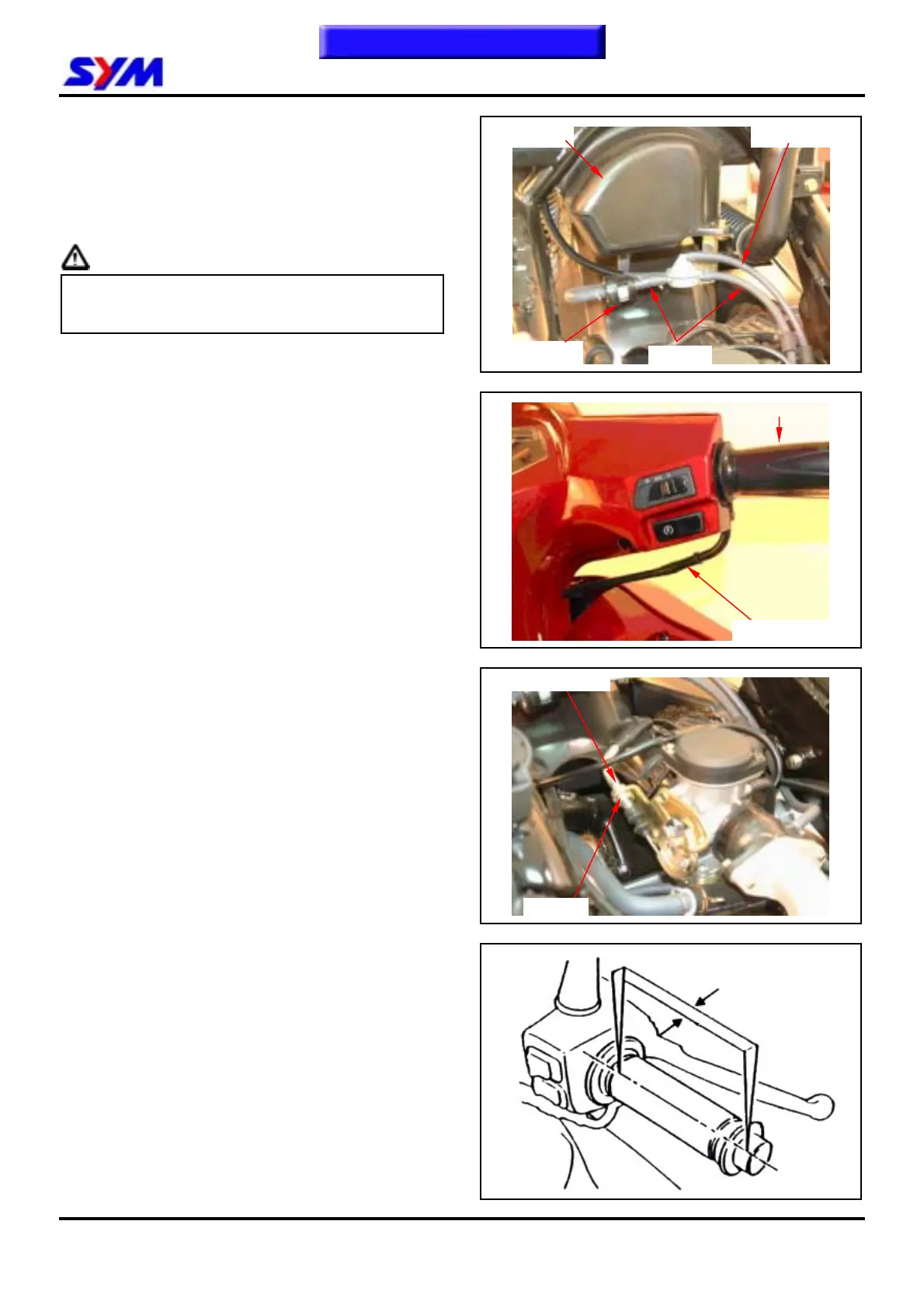

Fuel Lines / Cable
Remove luggage box.
Remove rear carrier.
Remove body covers.
Check all lines, and replace it when they are
deterioration, damage or leaking.
Warning
Gasoline is a low ignition material so any kind of
fire is strictly prohibited as dealing it.
Acceleration Operation
Have a wide open of throttle valve as handle in
any position and release it to let back original (full
closed) position.
Check handle if its operation is smooth.
Check acceleration cable and replace it if
deteriorated, twisted or damaged.
Lubricate the cable if operation is not smooth
Measure the throttle grip free play in its flange
part.
Adjustment can be done in either end.
Secondary adjustment is conducted from top side.
Remove rubber boot, loosen fixing nut, and then
adjust it by turning the adjustment nut.
Primary adjustment is conducted from bottom
side.
Loosen fixing nut, and adjust by turning the
adjustment nut.
Tighten the fixing nut, and check acceleration
operation condition.
Free play: 2~6 mm.
Fuel tank
Fuel hose
Vacuum hose
Adjustment nut
2~6 mm
Fuel filter
Throttle grip
Adjustment nut
Lock nut
