GENERAL DESCRIPTION
INPUT: 85-264VAC (47-440 Hz)
Fuse: 1.0A@100-120VAC 0.5A@220-240VAC
J1
M1
M3
M2
M4
Serial
Model TMC7000
Made in
USA
J11 J12J10
J9
J2 J3 J4 J5 J6 J7 J8

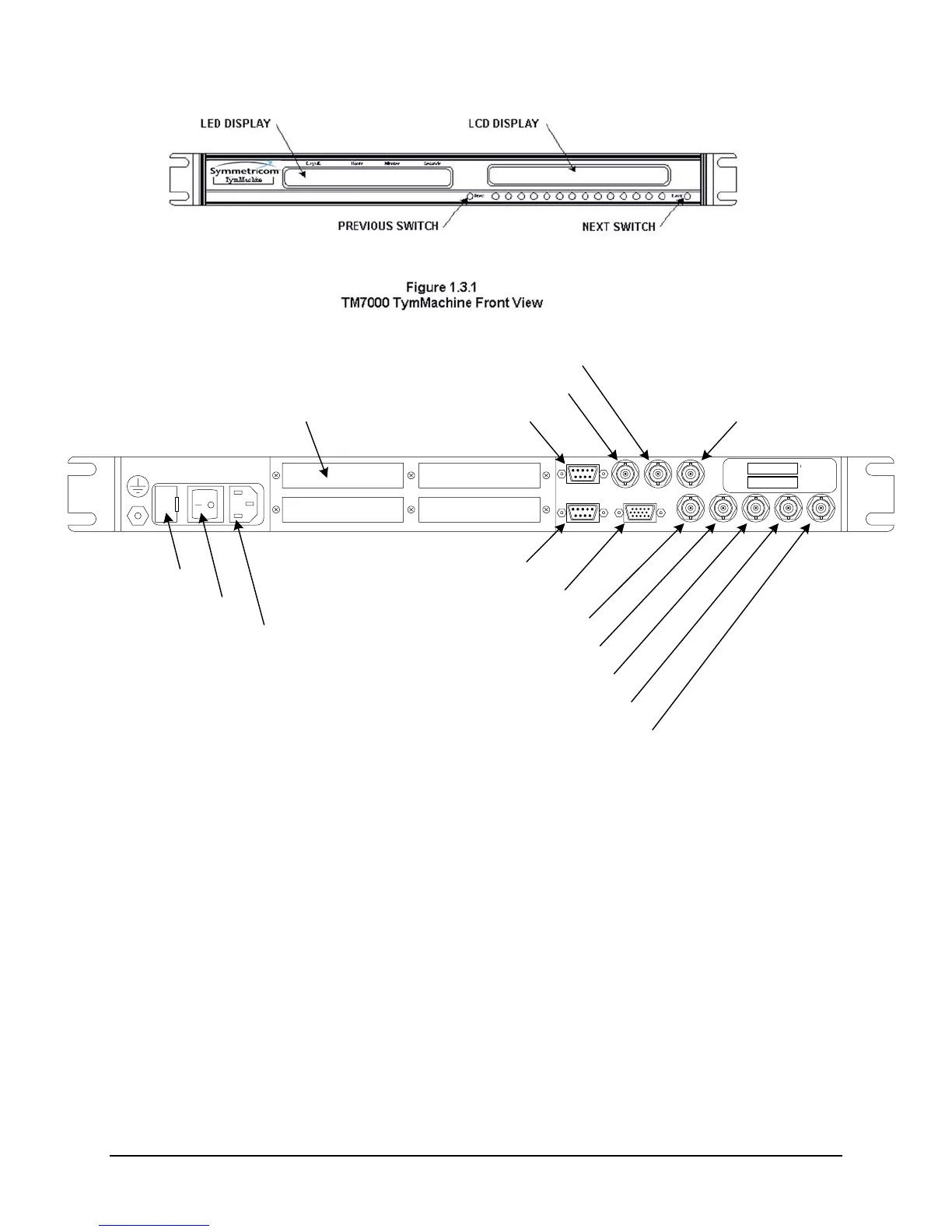

Figure 1.3.2
TM7000 TymMachine Rear View
FUSE DRAWER
ON/OFF SWITCH
POWER INPUT
SLOTS (4) FOR
PLUG-IN OPTIONS
RS-232 I/O
RS-232 TALKER
IRIG B AC OUT
IRIG B DC OUT
MULTI-CODE AC
CODE OUT
MISCELLANEOUS OUTPUTS
MULTI-CODE DC CODE OUT
EXT. TIME BASE IN OR 10MHz SINE WAVE OUT
PULSE/1PPS INPUT
AGC OUTPUT
CARRIER CODE INPUT
1.4 SPECIFICATIONS
Refer to the following paragraphs and tables for the specifications applicable to the
TymMachine. Changes or additions to these specifications, if any, are listed in Appendix A.
1.4.1 INPUTS
A. AC POWER (POWER ENTRY MODULE J1)
85 VAC to 264 VAC ±10%
47 - 440 Hz
Less than 40 VA
Symmetricom, Inc. TM7000 TymMachine TCG/T (Rev D) 1-3
