APPENDIX A
Table One, Continued…
Input/Output Level/Load/Frequency Detail
Input J9
Level Up to 1.5 VRMs.
Load
Greater than 100KΩ.
Frequency DC to 1.2 MHz.
Outputs J10, J11, and J12
Level Dependent on input.
Load
600Ω or greater.
Frequency DC to 1.2 MHz.
1.4 INPUT/OUTPUT
Using Jumpers E1, E2, E3, and E4 allows the user to use one input and set multiple outputs.
Table Two
Input Jumper Outputs
J1
None. J2, J3, J4.
J5
None. J6, J7, J8.
J9
None. J10, J11, J12.
J1 or J5
E1 to E2. J2, J3, J4, J6, J7, J8.
J5 or J9
E3 to E4. J6, J7, J8, J10, J11, J12.
J1, J5, or J9
E1 to E2, and E3 to E4. All Outputs.

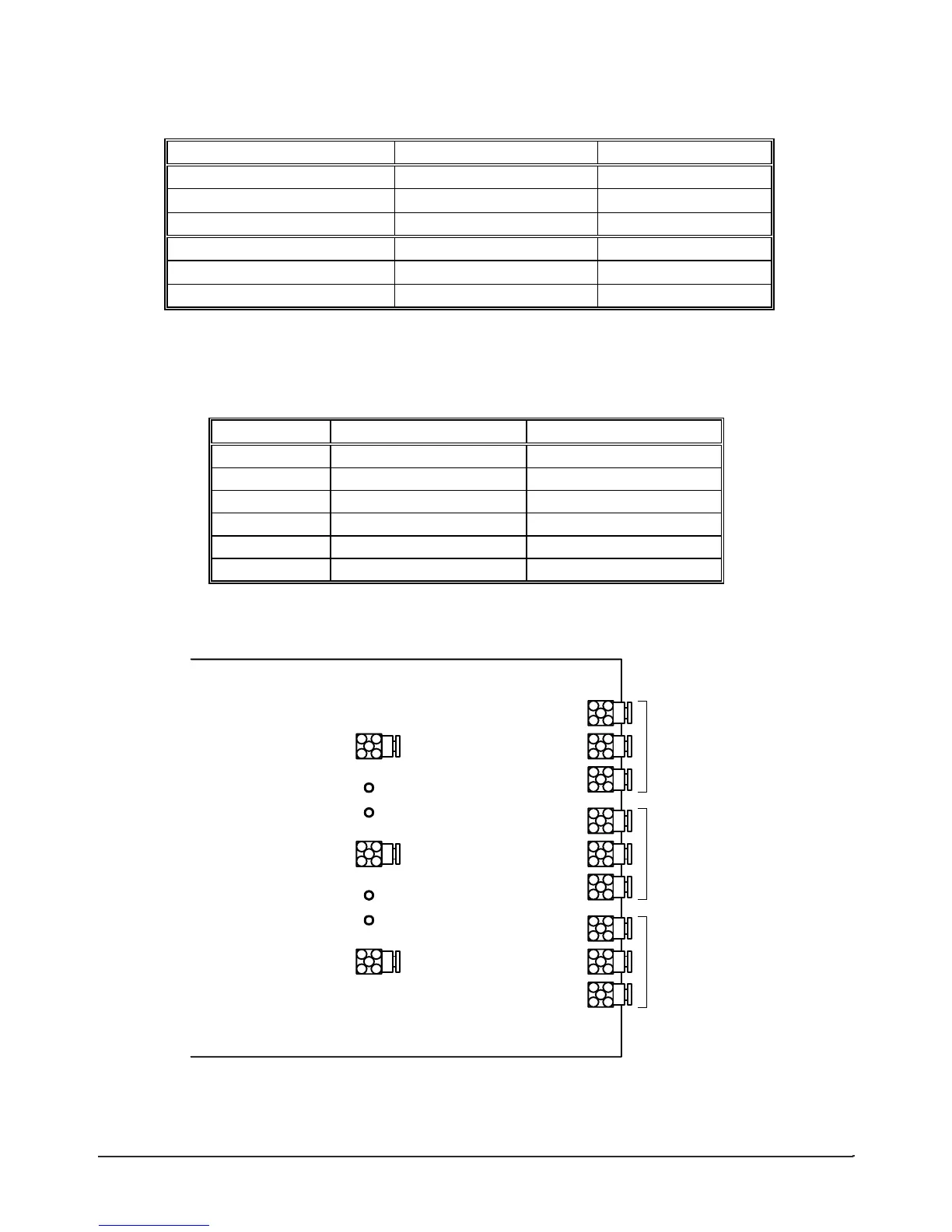

Figure One
E4
E3
E2
E1
J12
J11
J10
J8
J7
J6
J4
J3
J2
J1
J5
J9
Input 3
Input 2
Input 1
Output 3
Output 2
Output 1
A-52 TM7000 TymMachine TCG/T (Rev D) Symmetricom, Inc.
