OPTION DESCRIPTIONS

Install the jumper plug between JP3-1 and JP4-1 for the ten microsecond pulse rate duration.

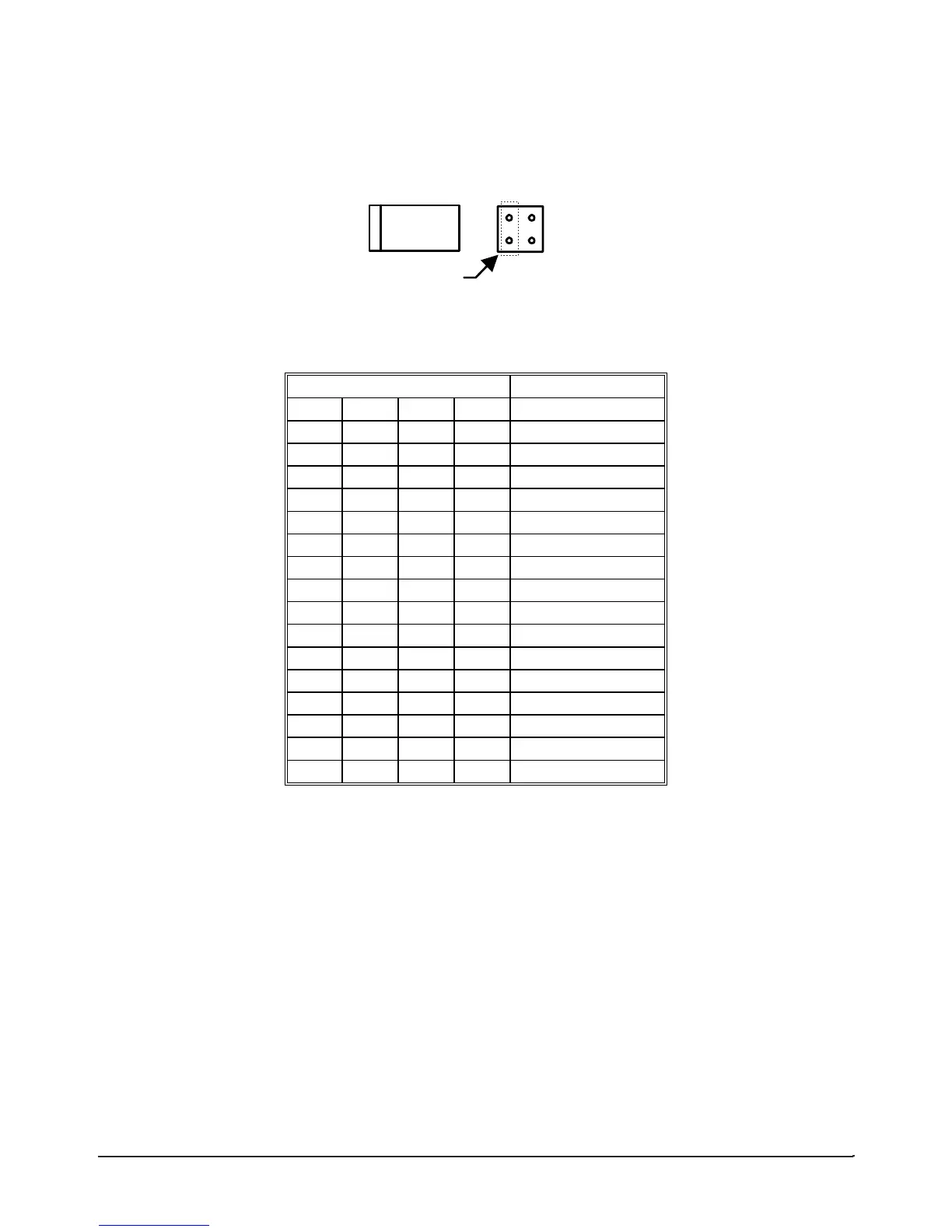

Figure Two

JP3

JP4

Jumper

C21

The following pulse rates can be selected using DIP switch SW1 as shown in Table One below:

Table One

SW1 Switch Position Pulse Rate

1 2 3 4

X X X X 1mpps

X X X 500kpps

X X X 100kpps

X X 50kpps

X X X *20kpps

X X 5kpps

X X 2kpps

X 500pps

X X X 200pps

X X 100pps

X X 50pps

X 20pps

X X 10pps

X 5pps

X 1pps

1ppm

* 10kpps is generated in lieu of 20kpps if 21057-1 Assembly is used.

X = Closed (on).

Symmetricom, Inc. TM7000 TymMachine TCG/T (Rev D) A-57
