CHAPTER TWO

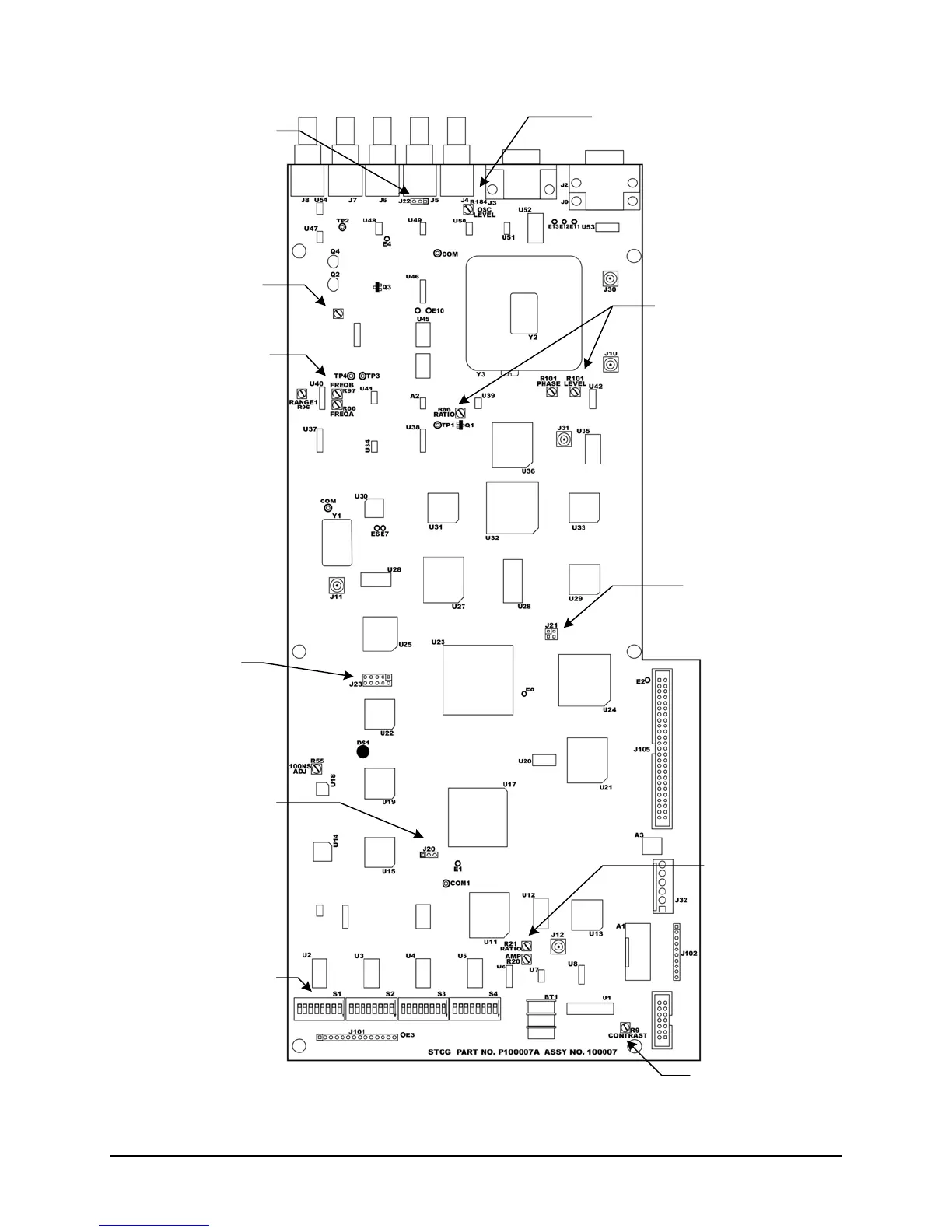

FIGURE 2.2
J22 BNC J5
CONFIGURATION JUMPER
R9 LCD CONTRAST
ADJUST
R20 AND R21 MULTI-
ENCODER AMPLITUDE AND
RATIO ADJUSTMENTS
J20 MULTI-ENCODER
CONFIGURATION JUMPER
R88, R96 and R97 PLL
ADJUSTMENTS
(FACTORY ONLY)
R86, R100 and R101 IRIG B
RA TIO, PHA SE and
AMPLITUDE ADJUSTMENTS
J21 RS-232 TALKER
CONFIGURATION JUMPER
RS-232 TALKER
CONFIGURATION SWITCHES
J23 FOR DEVELOPMENT
(FACTORY ONLY)
R184 10MHz OUTPUT
AMPLITUDE ADJUSTMENT
R132 LOSS OF SIGNAL
THRESHOLD A DJUDTMENT
2-2 TM7000 TymMachine TCG/T (Rev D) Symmetricom, Inc.
