Synrad Firestar f-Series operator’s manual
Firestar f201 package outline
drawing

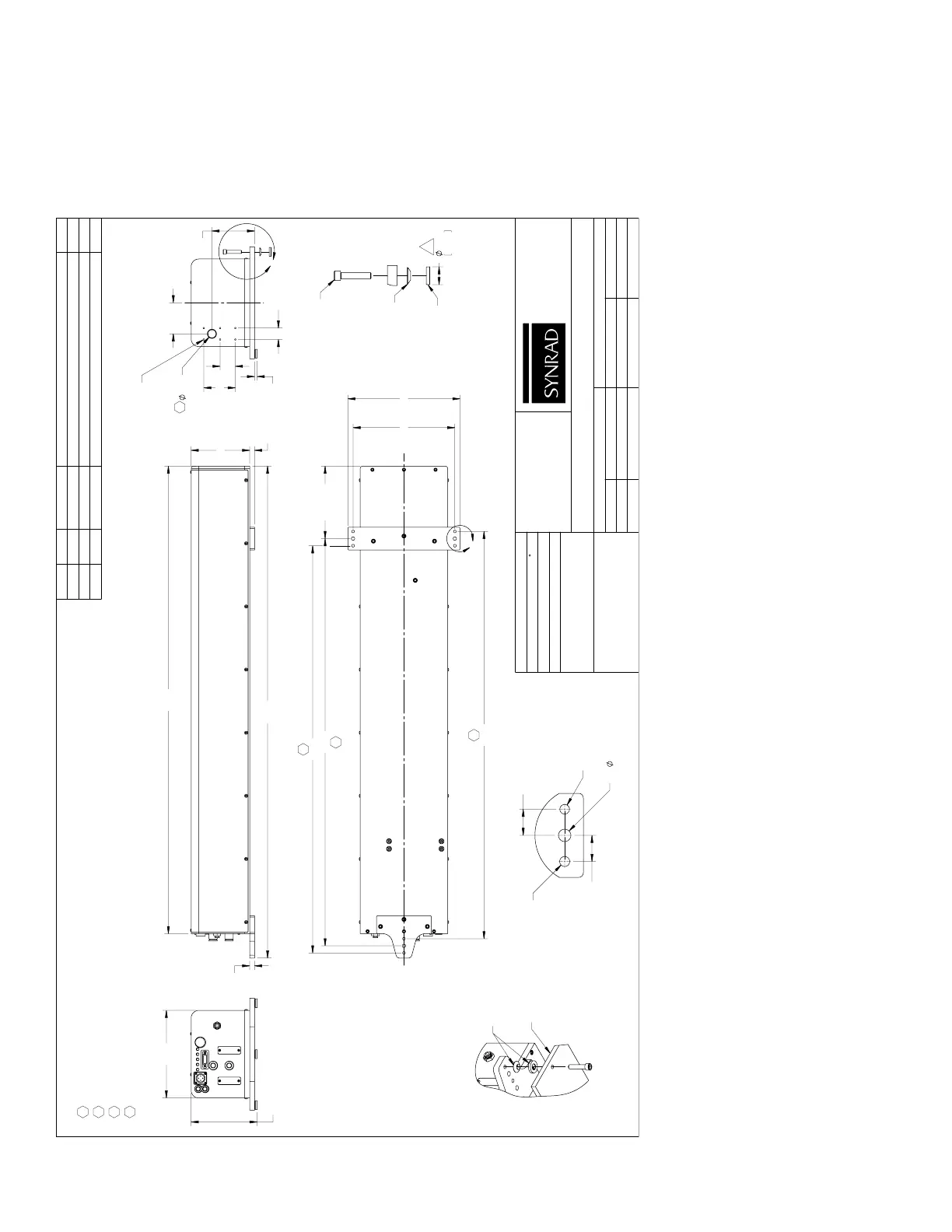

Figure 3-20 Firestar f201 package outline and mounting dimensions
45.9
.480
48.3
5.75
.48
11.0010.000
7.12±.0240.0
40.0
40.0
A
C
L
2
3
1
1.125
4.2
.25
1.50
3.10
3.0
.797
BEAM EXIT
MOUNTING HOLES
8-32 UNC ACCESSORY
B
C
L
F
4
6.48
(HEIGHT INCLUDING
WASHERS)
8.60
.876
22.25
DETAIL B
M8 OR 5/16 SCREW
THROUGH CENTER HOLE
SPHERICAL
WASHER (BALL)
SPHERICAL
WASHER (CUP)
TOP ACCESS
MOUNTING
.700
.700
THREAD 5/16-18
2X
.332
THREAD
M8 X 1.25
DETAIL A
SPHERICAL WASHERS
MOUNTING SURFACE
BOTTOM ACCESS
MOUNTING
3 2 1
NOTES:
THIS MOUNTING HOLE PATTERN IS USED WHEN BOTTOM ACCESS MOUNTING IS DESIRED WITH M8 FASTENERS. THIS MOUNTING HOLE PATTERN IS USED WHEN TOP ACCESS MOUNTING IS DESIRED, STANDARD OR METRIC FASTENERS. THIS MOUNTING HOLE PATTERN IS USED WHEN BOTTOM ACCESS MOUNTING IS DESIRED WITH 5/16-18 FASTENERS. BEAM PATH MAY NOT BE CENTERED OR PERPENDICULAR TO FACEPLATE APERTURE.
4
DESCRIPTION:
FINISH:
MATERIAL:
REV ECO DATE
DESCRIPTION DB
TOLERANCES UNLESS NOTED:
2.0
ANGLE = ±
0.1
.x = ±
0.01
.xx = ±
0.005
.xxx = ±
.
PROPRIETARY
THIS DRAWING IS PROPRIETARY TO
SYNRAD INC. AND SHALL NOT BE
USED OR DISCLOSED IN WHOLE
OR IN PART WITHOUT WRITTEN
PERMISSION OF SYNRAD INC.
PART NUMBER:
DWG/FILE NUMBER:
SHEET
ENG:
DRAWN BY:
DATE:
UNITS:
CATEGORY:
CHECKED BY:
DATE:
SIZE: B
FINISH CLASS:
APPROVED BY:
DATE:
SYNRAD INC. 4600 Campus Place Mukilteo, WA 98275 Phone: (425)349-3500 Fax: (425)349-3667
OUTLINE & MOUNTING, F201
10-Feb-04
300-19105-01
1
.
.
.
300-19105-01
of
1
.
E. Stockinger
Inches
.
.
.
DMDADD BEAM EXITØ, CONVERT TO SOLIDWORKS
15-Aug-08
3912D
ADD NOTE 4
E
DMD
9-Sep-09
4107
ADD WASHER DIMENSION
F
DMD
18-Mar-11
4326
