Synrad Firestar f series User Manual

maintenance/
troubleshooting
47
Synrad Firestar f-Series operator’s manual
Troubleshooting
Operational owchart

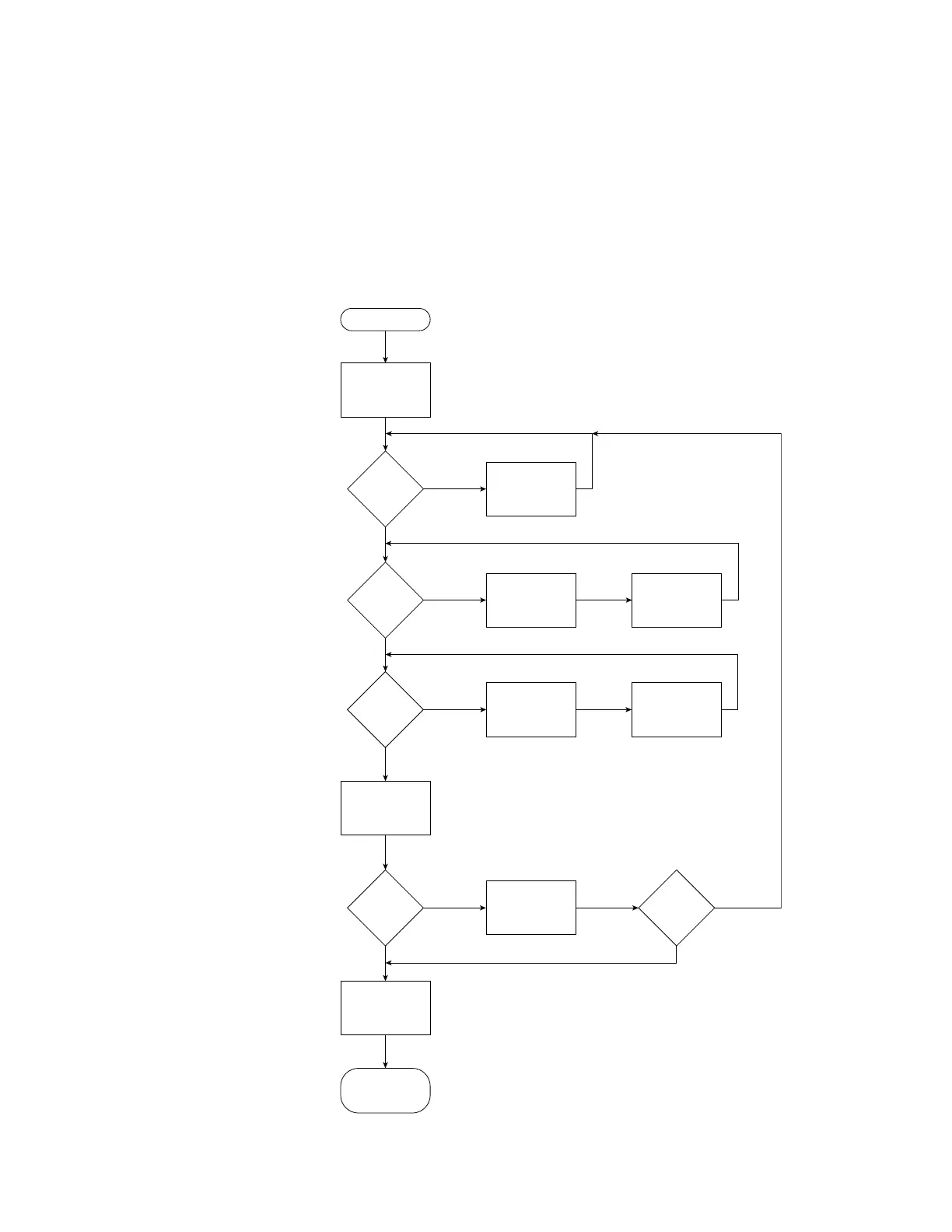

The owchart in Figure 4-1 illustrates Firestar’s start-up sequence.
Figure 4-1 Operational owchart
Ye s
No
Remote Interlock
indicator Green?
Te mp indicator
Green?
Shutter indicator
Blue?
Ready indicator
Yellow?
Ready indicator
Yellow?
Apply interlock signal
to Remote Interlock input
or install factory-supplied
Quick Start Plug
Check that cooling water
is flowing through laser
and that coolant temp
is below 22˚ C
Apply shutter open
signal to Shutter Open
Request input or install
factory-supplied Quick
Start Plug
Cycle Keyswitch from ON
to OFF/RESET and then
back to ON
(on OEM lasers, 
cycle DC power)
Ensure that manual
Shutter Switch is set
to Open
Apply PWM Command
signal to laser
Tu rn Keyswitch
to ON
(if equipped)
Apply 96 VDC
power to laser
Lase indicator
illuminates Red to
indicate laser output
Laser Start Sequence
Ye s
Ye s
Ye s
No
No
No
Ye s
No
Cycle DC power 
(remove DC power, 
wait 15 seconds,
reapply DC power)
